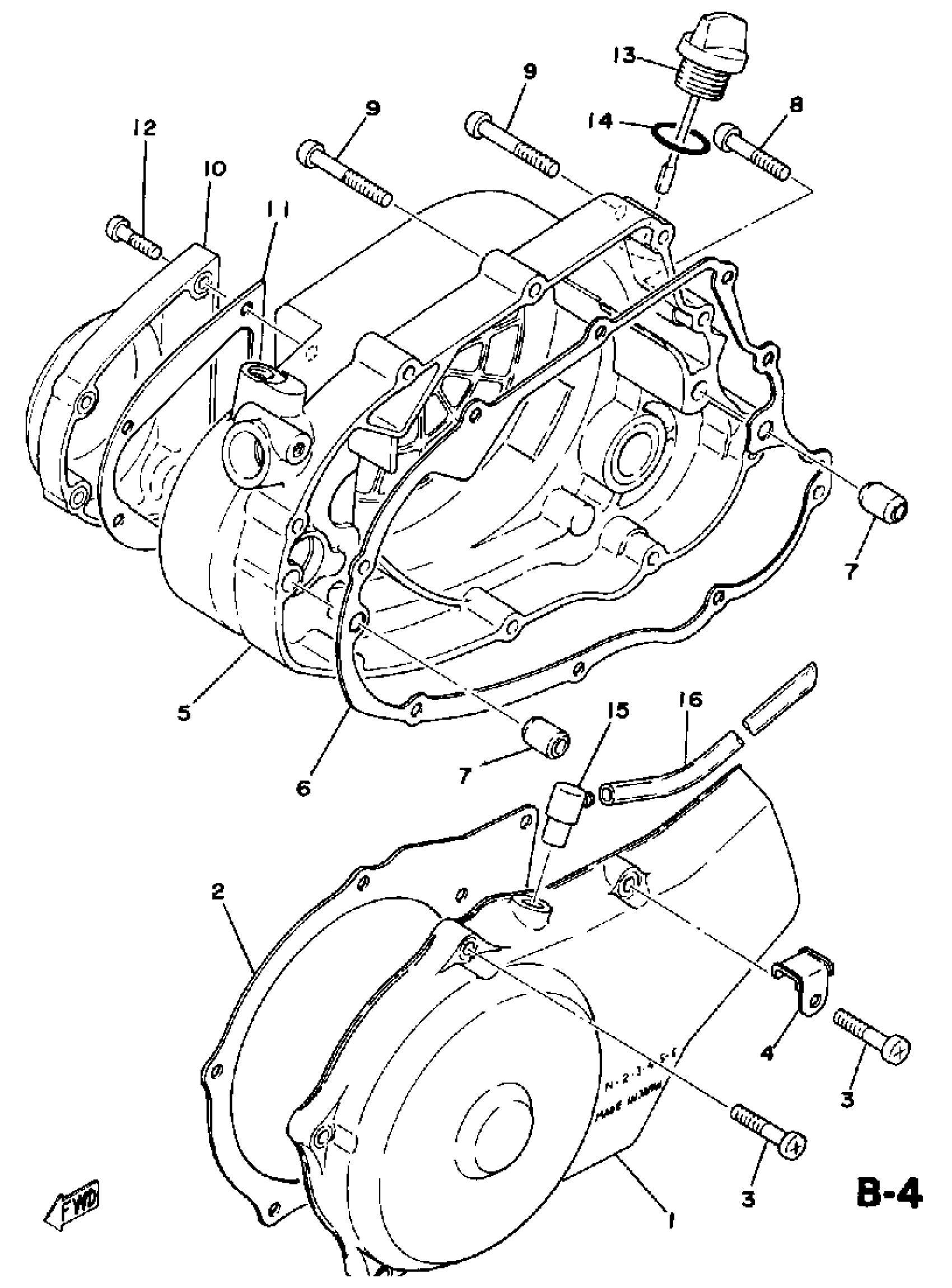

Yamaha DT125E (DT125E) 1978 CRANKCASE COVER Diagram

CASE, CRANK (L.H)

2A7-15411-01-00

$62.99

GASKET 1

2A6-15455-01-00

$22.99

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

CLAMP 2

2A6-15484-01-00

$6.99

COVER, CRANKCASE 3

2A6-15431-00-00

Unavailable

GASKET, CRANKCASE COVER 1

18G-15451-03-00

$28.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

SCREW PAN HEAD

98580-06040-00

$8.49

COVER, OIL PUMP

2A6-15416-00-00

Unavailable

GASKET, OIL PUMP COVER 1

2A6-15456-01-00

$23.99

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

PLUG, OIL LEVEL

401-15362-00-00

Unavailable

O-RING (646)

93210-19123-00

Unavailable

BREATHER

583-15371-00-00

$6.99

HOSE (L1050)

90445-072G8-00

Unavailable
