CRANK PISTON

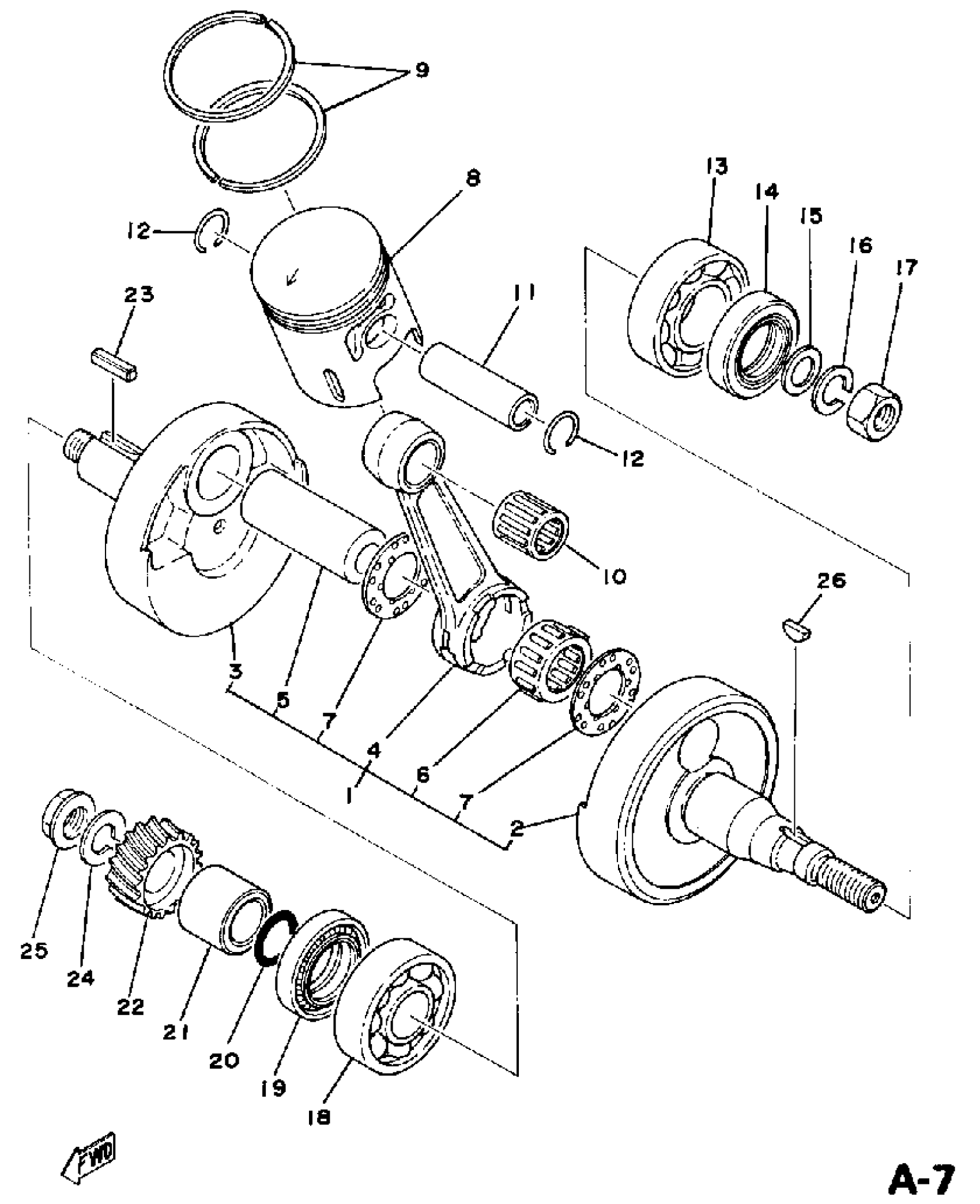

Yamaha DT125E (DT125E) 1978 CRANK PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
2N4-11400-00-00
Unavailable
2
CRANK (L.H)
1W1-11412-01-00
Unavailable
3
CRANK (R.H)
1W1-11422-01-00
Unavailable
4
. ROD, CONNECTING 1
25V-11651-00-00
Unavailable
7
WASHER (29L)
90209-22248-00
Unavailable
8
. PISTON STD
2A6-11631-00-96
Unavailable
8
PISTON 1 O/S 0.25
2A6-11635-00-00
Unavailable
8
PISTON 2 O/S 0.50
2A6-11636-00-00
Unavailable
8
PISTON 3 O/S 0.75
2A6-11637-00-00
Unavailable
8
PISTON 4 O/S 1.00
2A6-11638-00-00
Unavailable
9
PISTON RINGSET 1ST (1ST O/S) (2A6-11610-10)
2N4-11610-10-00
Unavailable
9
PISTON RINGSET 2ND (2ND O/S) (2A6-11610-20)
2N4-11610-20-00
Unavailable
9
PISTON RINGSET 3RD (3RD O/S) (2A6-11610-30)
2N4-11610-30-00
Unavailable
9
PISTON RINGSET 4TH (4TH O/S)
2N4-11610-40-00
Unavailable
10
BEARING, NEEDLE (24X)
93310-216L2-00
Unavailable
11
PIN, PISTON
137-11633-10-00
Unavailable
12
CIRCLIP (1L9)
93450-17044-00
Unavailable
13
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
14
OIL SEAL (25X40X8-248)
93102-25061-00
Unavailable
15
WASHER, PLATE (583)
90201-12593-00
Unavailable
16
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
17
NUT(55K)
90170-12347-00
Unavailable
18
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
19
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
20
O-RING(3KX)
93210-180A6-00
Unavailable
21
COLLAR, DISTANCE (525)
90387-20488-00
Unavailable
22
GEAR, PRIMARY DRIVE
4FU-16111-00-00
Unavailable
23
KEY, STRAIGHT 3531154600
90282-05005-00
Unavailable
24
WASHER, SPRING (1W1)
90204-12007-00
Unavailable
25
NUT(1EE)
90179-12659-00
Unavailable
26
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
