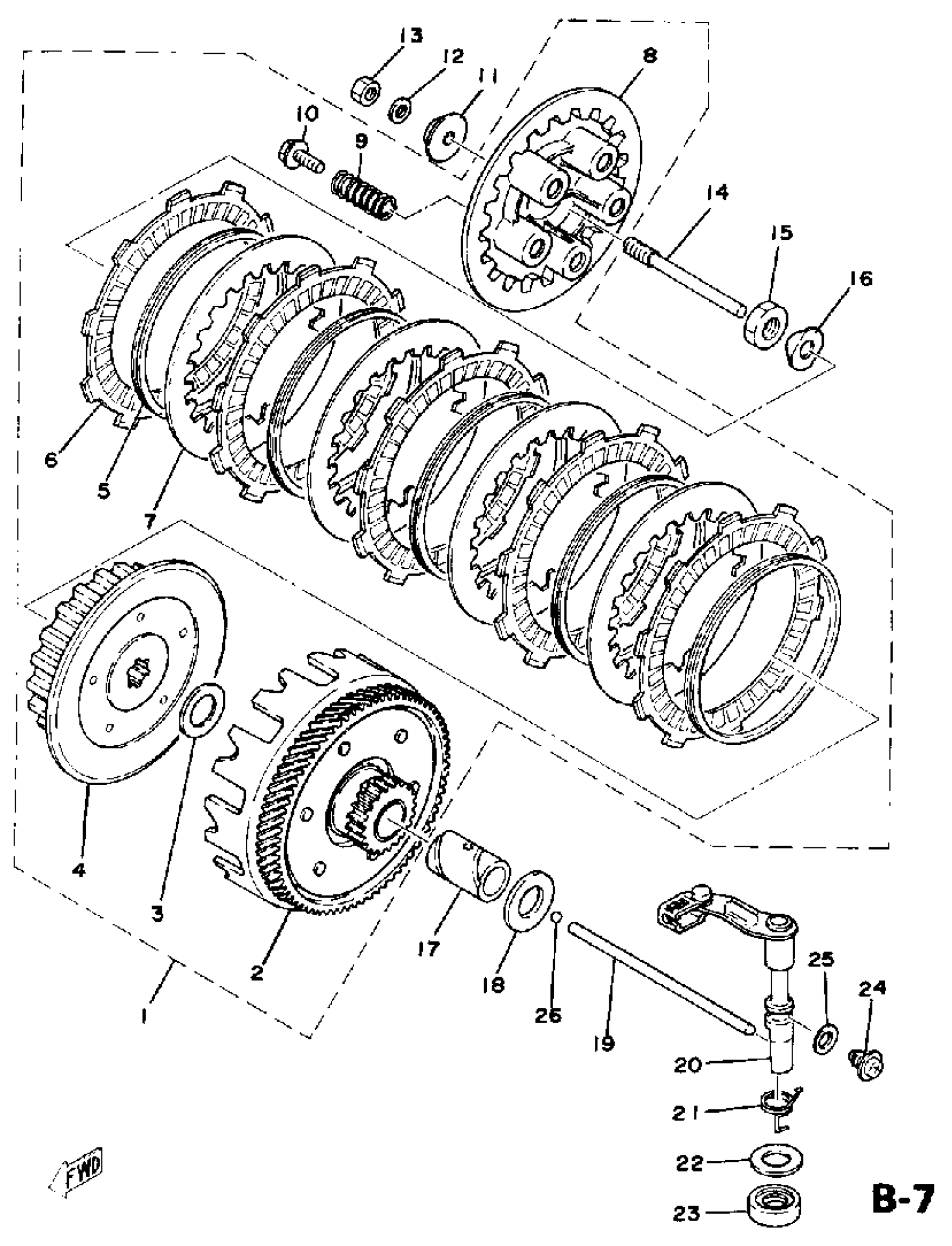

Yamaha DT125E (DT125E) 1978 CLUTCH Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(2A6-16300-01-00)

Unavailable

2

. PRI DRVN GEAR

2A6-16150-00-00

Unavailable

3

WASHER, PLATE(2YY)

90201-180P2-00

$9.49

4

. BOSS, CLUTCH

1J4-16371-00-00

Unavailable

5

. RING, CUSHION

307-16367-00-00

Unavailable

6

PLATE, FRICTION

36X-16321-00-00

$17.49

7

PLATE, CLUTCH 1

2A6-16324-10-00

$14.49

8

. PLATE, PRESSURE 1

2A6-16351-00-00

Unavailable

9

SPRING, COMPRESSION (2A6)

90501-20474-00

$9.49

10

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

11

PLATE, PUSH

1W1-16358-01-00

$23.99

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

ROD, PUSH

1W1-16356-02-00

Unavailable

15

NUT, HEXAGON

90170-14171-00

$9.49

16

WASHER, LOCK (2K6)

90215-14204-00

Unavailable

17

SPACER (525)

90560-17147-00

Unavailable

18

WASHER, PLATE (4V2)

90201-174E1-00

Unavailable

19

ROD, PUSH 2

1W1-16357-00-00

Unavailable

20

PUSH LEVER ASSEMBLY

(1W1-16380-00-00)

Unavailable

21

SPRING, TORSION (1W1)

90508-20345-00

Unavailable

22

WASHER PLATE 150251530000

90201-14217-00

Unavailable

23

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

24

SCREW (1M1)

90149-08108-00

Unavailable

25

GASKET(3AJ)

90430-08204-00

Unavailable

26

BALL

93503-16003-00

Unavailable
