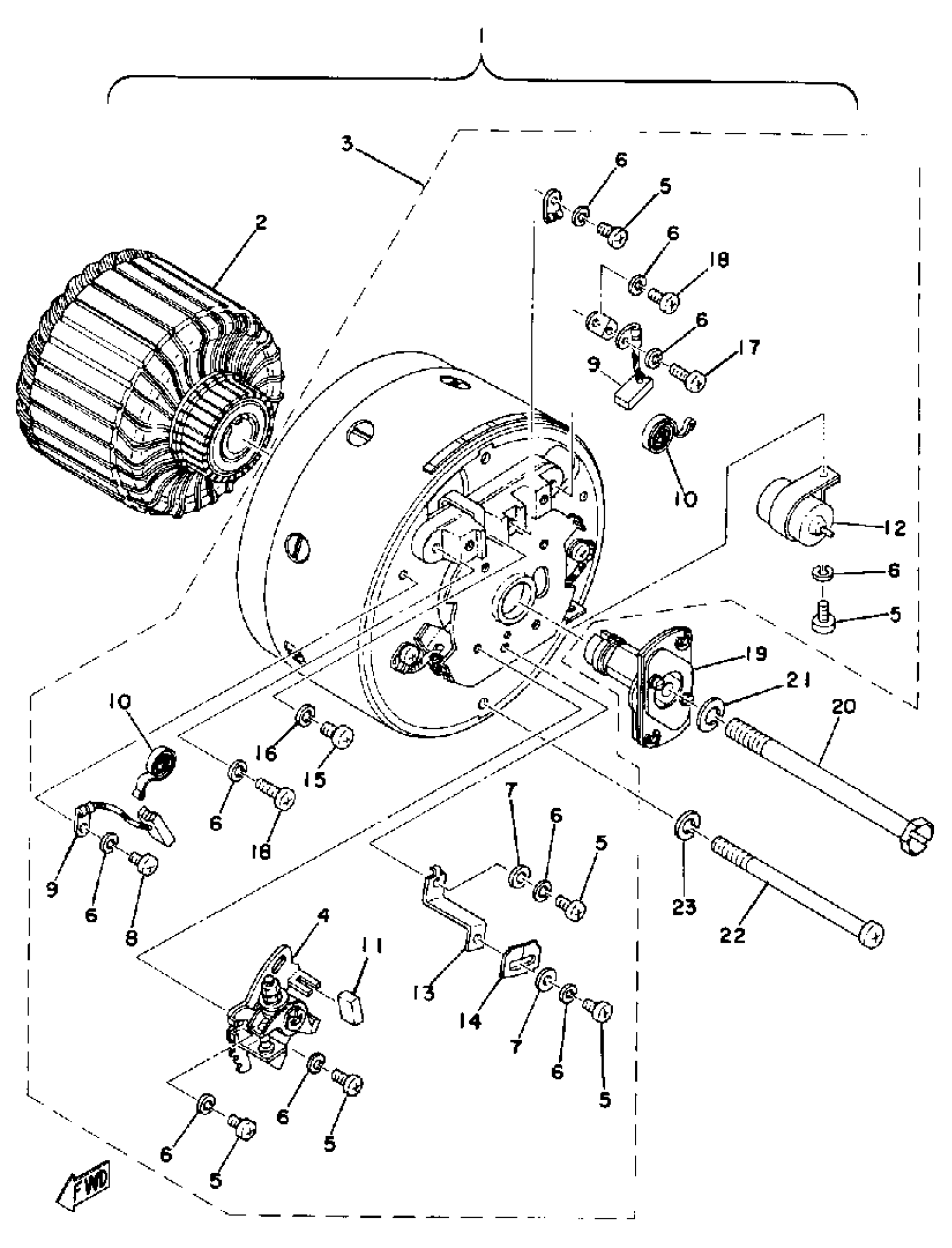

Yamaha DT125C (DT125C) 1976 STARTER GENERATOR Diagram

#

Description
Price

1

STARTER GEN ASSEMBLY

(444-81100-10-00)

Unavailable

2

ARMATURE

(444-81155-10-00)

Unavailable

3

STATOR ASSEMBLY

(444-81110-10-00)

Unavailable

4

CONTACT BREAKER ASSY

183-81421-19-00

Unavailable

5

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

8

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

9

BRUSH

101-81111-10-00

Unavailable

10

. SPRING, BRUSH

141-81113-10-00

Unavailable

11

. LUBRICATOR

207-81331-10-00

Unavailable

12

CNDSR 2

278-81625-91-00

Unavailable

13

FIXTURE, TMNG PLATE

(299-81133-10-00)

Unavailable

14

PLATE, TIMING

(133-81132-10-00)

Unavailable

16

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

17

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

18

SCREW, PAN HEAD

98511-04012-00

Unavailable

19

GOVERNOR ASSEMBLY

(444-81153-10-00)

Unavailable

20

BOLT

(148-81152-10-00)

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

SCREW, PAN HEAD

98580-06580-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable
