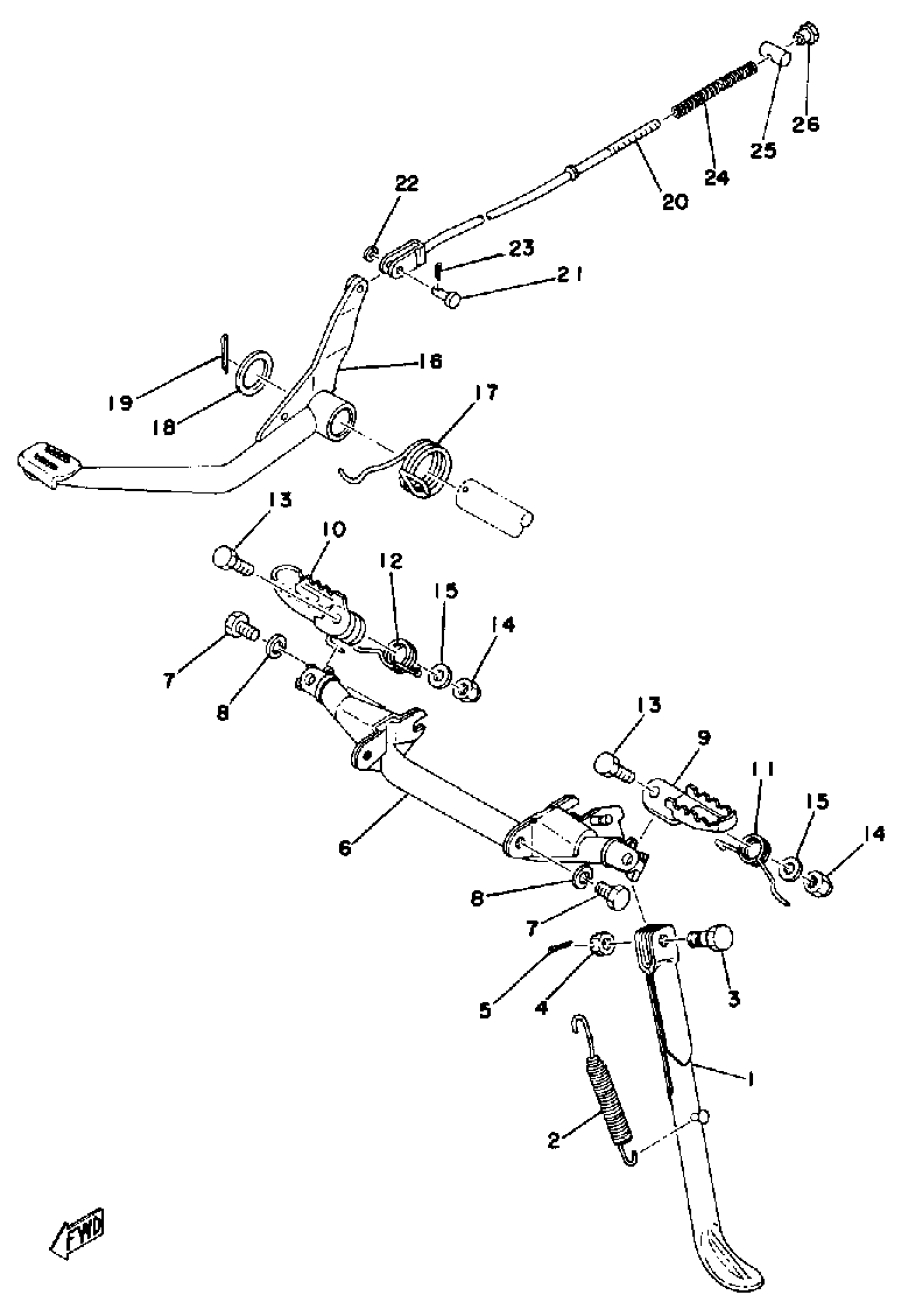

Yamaha DT125C (DT125C) 1976 STAND-FOOTREST-BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

(458-27311-00-00)

Unavailable

2

SPRING, TENSION (498)

90507-29021-00

$23.99

3

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

4

NUT,CASTLE

90171-10049-00

Unavailable

5

PIN, COTTER

91490-20025-00

$1.99

6

FOOTREST 1

(444-27411-10-00)

Unavailable

7

BOLT

97027-10018-00

Unavailable

8

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

9

FOOTREST 1

434-27411-00-35

Unavailable

10

FOOTREST 2

434-27421-00-35

Unavailable

11

SPRING, TORSION

90508-26138-00

Unavailable

12

SPRING, TORSION

90508-26139-00

Unavailable

13

BOLT

90101-08250-00

Unavailable

14

NUT, U

95617-08100-00

$9.49

15

WASHER (8A7)

90201-08452-00

$5.60

16

PEDAL, BRAKE

248-27211-00-33

Unavailable

17

SPRING, TORSION (248-27216-00)

90508-35070-00

Unavailable

18

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

19

PIN, COTTER

91490-40045-00

Unavailable

20

ROD, BRAKE

341-27231-00-00

Unavailable

21

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

PIN, COTTER

91490-25020-00

Unavailable

24

SPRING, (180-27236-00)

90501-10245-00

Unavailable

25

PIN 1562723700

90249-12008-00

Unavailable

26

NUT (25K)

90179-06411-00

Unavailable
