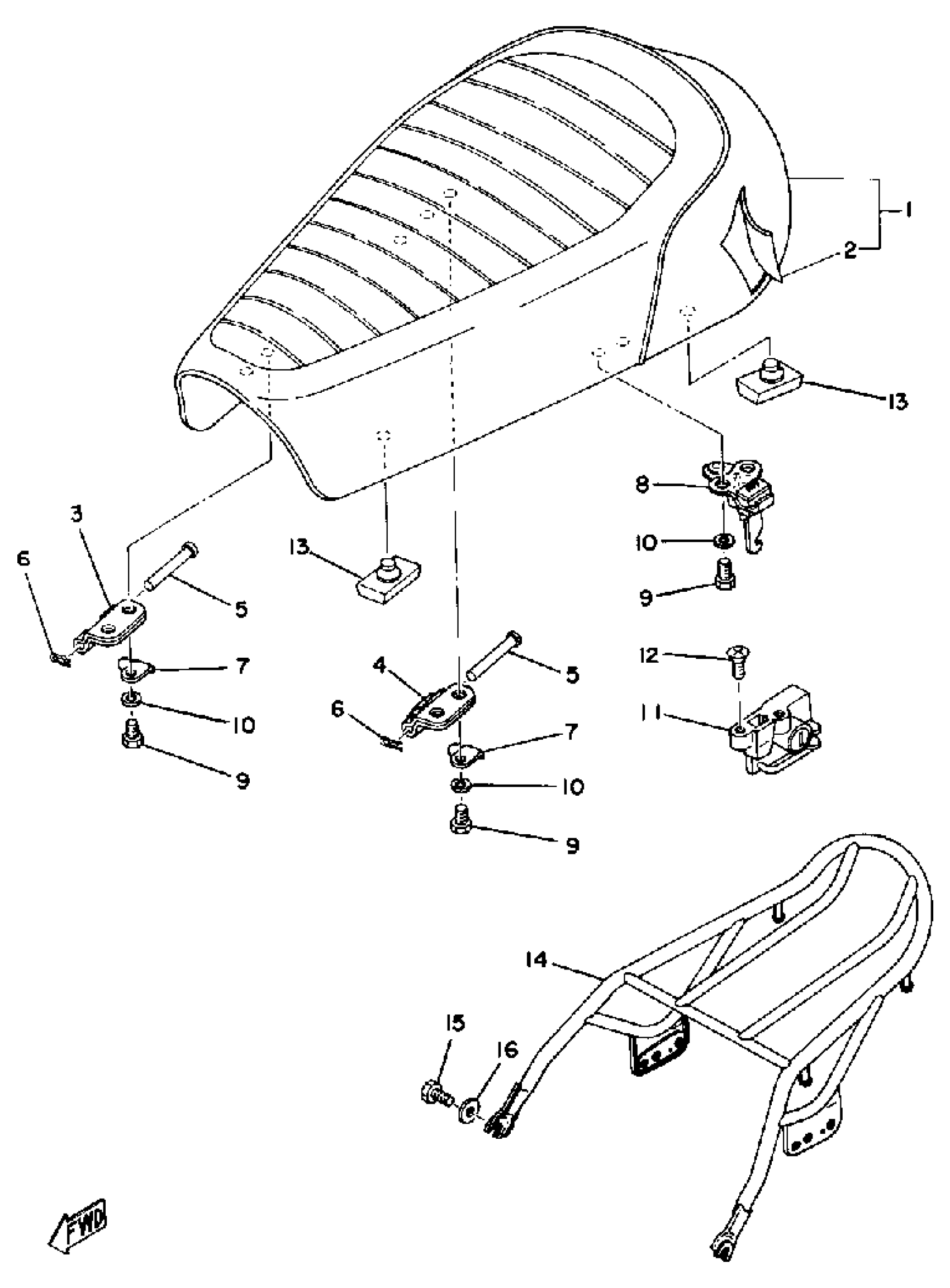

Yamaha DT125C (DT125C) 1976 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

(560-24710-00-00)

Unavailable

2

COVER, SINGLE SEAT

(560-24711-00-00)

Unavailable

3

HINGE, SEAT

(315-24726-00-00)

Unavailable

4

HINGE, SEAT

(560-24726-00-00)

Unavailable

5

PIN, CLEVIS

91701-05055-00

$5.70

6

CLIP (156-83525-00)

90468-10050-00

$2.16

7

STOPPER

444-24768-00-00

Unavailable

8

BRACKET, SEAT

371-24728-02-00

Unavailable

9

BOLT (661)

97013-06012-00

$4.40

10

WASHER, SPRING

92995-06100-00

$2.95

11

SEAT LOCK ASSEMBLY

(558-24705-00-00)

Unavailable

12

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

13

DAMPER, SEAT

214-24724-00-00

$6.29

14

CARRIER AT/CT

(444-24810-00-00)

Unavailable

15

BOLT(8BT)

97017-10020-00

$5.75

16

WASHER, PLATE

92990-10600-00

$2.57
