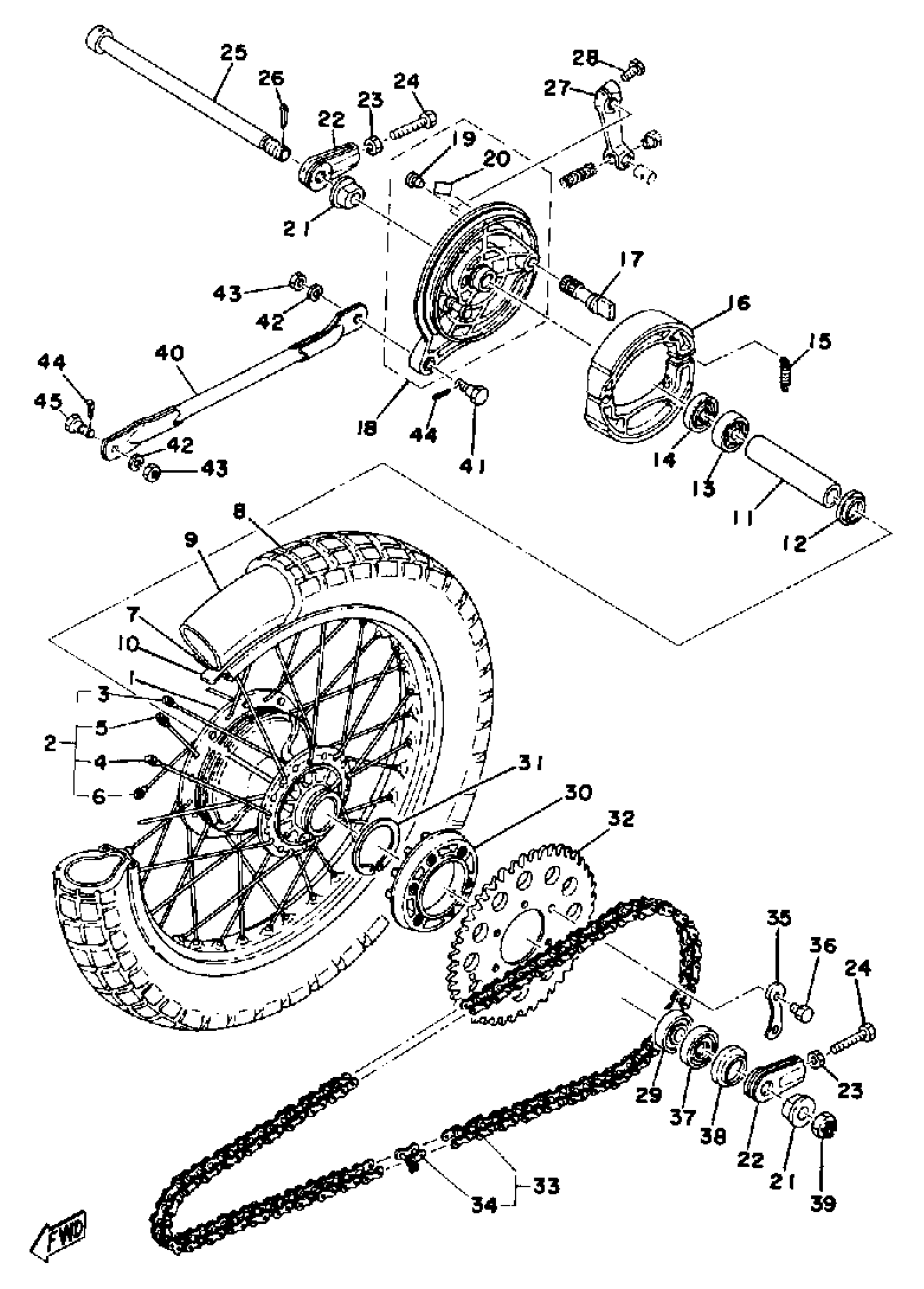

Yamaha DT125C (DT125C) 1976 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(443-25311-00-00)

Unavailable

2

SPOKE SET, REAR

443-25304-00-00

Unavailable

3

SPOKE SET, INNER 2

(443-25396-90-00)

Unavailable

4

SPOKE SET, OUTER 2

(443-25397-90-00)

Unavailable

5

SPOKE SET, INNER 1

(443-25391-90-00)

Unavailable

6

SPOKE SET, OUTER 1

(443-25392-90-00)

Unavailable

7

RIM 1.60X18

(94416-18040-00)

Unavailable

8

325X18 YOKO Y620

(94132-18320-00)

Unavailable

9

TUBE (5H5)

94227-18195-00

$35.99

10

BAND, RIM (2J4)

94340-18086-00

$17.99

11

SPACER

90560-15313-00

$46.99

12

FLANGE, SPACER

146-25115-00-00

$6.99

13

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

14

OIL SEAL (22X35X5)

93104-22018-00

$11.49

15

SPRING (5T9)

90506-17328-00

Unavailable

16

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

17

CAMSHAFT

2RH-25351-00-00

Unavailable

18

BRAKE SHOE PLATE ASSY

437-25026-10-35

Unavailable

19

GROMMET (397)

90480-10068-00

Unavailable

20

LABEL, INDICATOR

(437-25134-00-00)

Unavailable

21

COLLAR

90387-15115-00

Unavailable

22

PULLER, CHAIN

248-25388-00-00

Unavailable

23

. NUT

95380-08700-00

Unavailable

24

BOLT

90101-08060-00

Unavailable

25

AXLE, WHEEL (2R7-25381-00)

401-25381-00-00

Unavailable

26

PIN, COTTER

91490-30030-00

Unavailable

27

LEVER, CAM SHAFT

214-25355-00-00

Unavailable

28

BOLT, HEXAGON

97017-06025-00

Unavailable

29

BEARING

93306-30212-00

Unavailable

30

DAMPER

248-25364-00-00

Unavailable

31

CIRCLIP (8L9)

93410-52061-00

Unavailable

32

SPROCKET, DRVN45T

248-25445-11-00

Unavailable

32

SPROCKET, DRVN 48T

248-25448-11-00

Unavailable

32

SPROCKET, DRVN 44T (44T)

4V1-25444-10-00

Unavailable

33

SET, CHAIN

94A40-07114-00

Unavailable

34

JOINT, CHAIN

94682-51001-00

Unavailable

35

WASHER, LOCK

22W-25412-00-00

Unavailable

36

BOLT

90101-08282-00

Unavailable

37

SEAL,OIL

93106-26005-00

Unavailable

38

COVER, DUST

401-25367-00-00

Unavailable

39

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

40

BAR, TENSION

(401-25371-01-00)

Unavailable

41

BOLT 1092537300

90109-08063-00

Unavailable

42

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

43

. NUT

95380-08700-00

Unavailable

44

PIN, COTTER

91490-20025-00

Unavailable

45

BOLT (183-25378-00)

90109-08368-00

Unavailable
