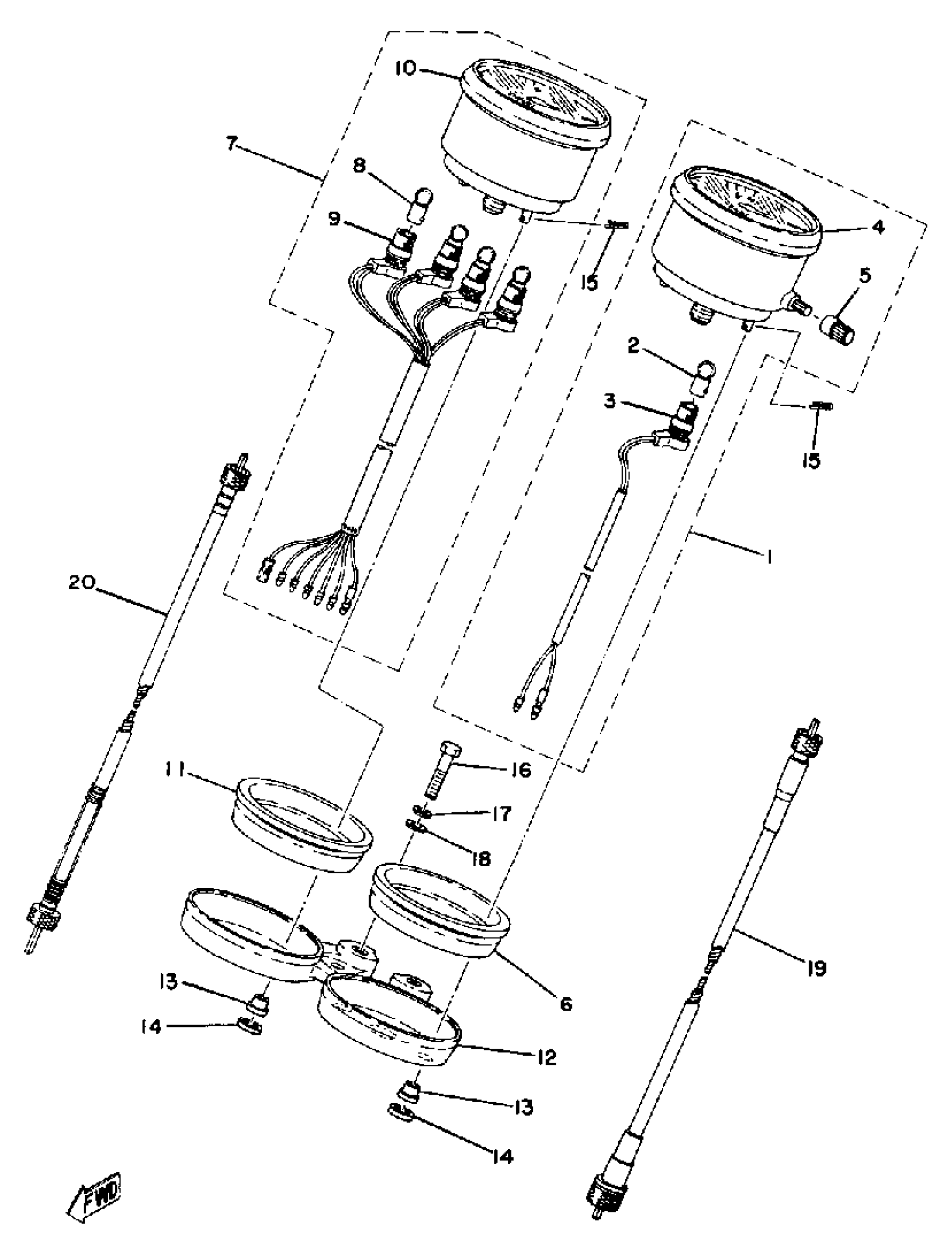

Yamaha DT125C (DT125C) 1976 METER Diagram
#
Description
Price
1
SPEEDOMETER ASSEMBLY
(444-83570-41-00)
Unavailable
3
SOCKET, METER
(444-83536-00-00)
Unavailable
4
DAMPER
(437-83513-00-00)
Unavailable
5
KNOB, TRIP METER
(308-83578-30-00)
Unavailable
6
DAMPER 2
(438-83526-01-00)
Unavailable
7
TACHOMETER ASSEMBLY
(444-83540-01-00)
Unavailable
9
SOCKET CORD ASSEMBLY
(444-83520-00-00)
Unavailable
10
DAMPER
(437-83513-00-00)
Unavailable
11
DAMPER 2
(438-83526-01-00)
Unavailable
12
BRACKET, METER
438-83519-02-98
Unavailable
13
DAMPER
437-83523-00-00
Unavailable
14
WASHER, SPECIAL
437-83524-00-00
Unavailable
16
BOLT, HEXAGON
97017-06030-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
WASHER, PLAIN (646)
92990-06600-00
Unavailable
19
SPEEDOMETER CABLE ASSY
1JN-83550-02-00
Unavailable
20
TACHOMETER CABLE
444-83560-01-00
Unavailable
