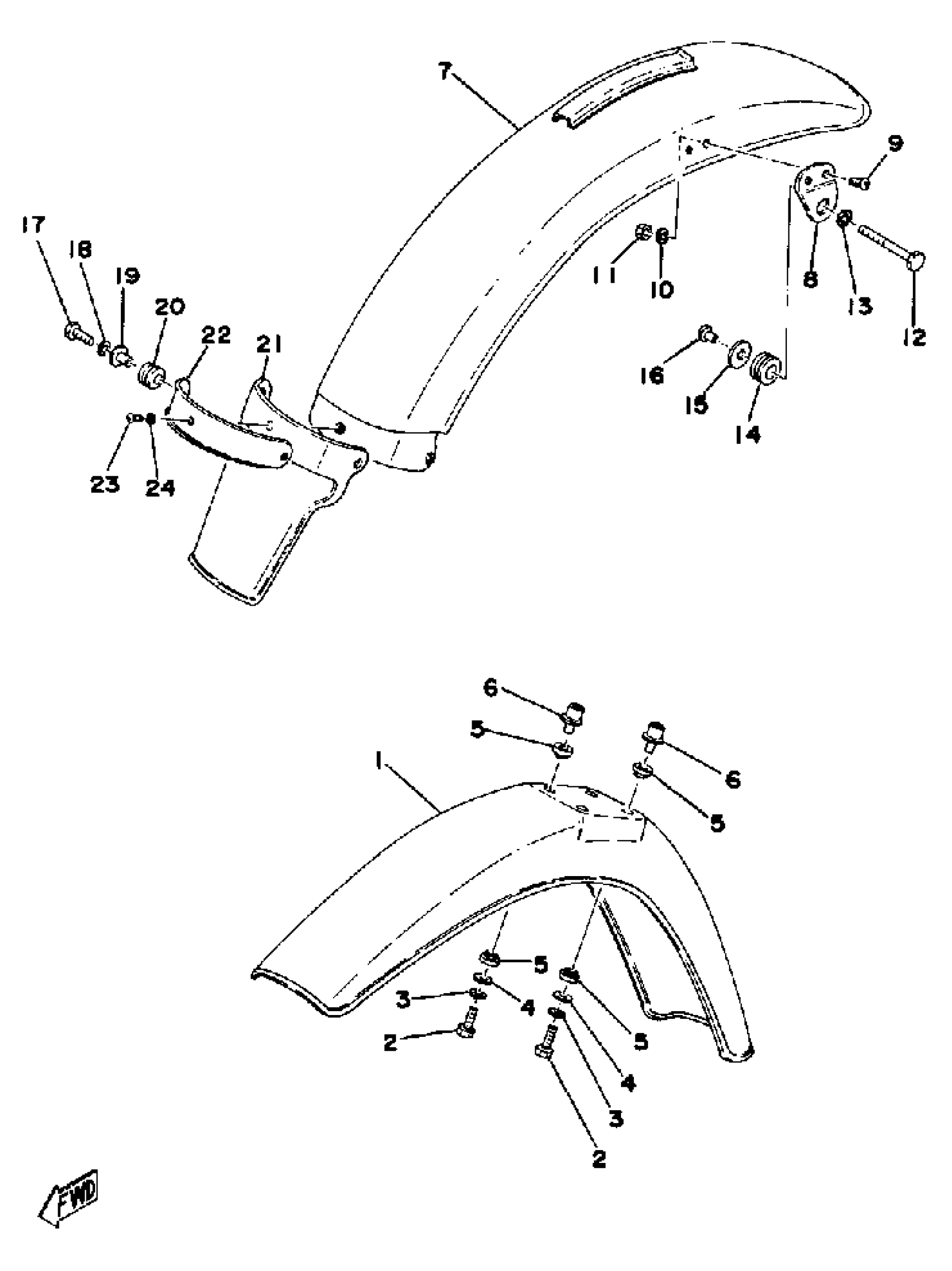

Yamaha DT125C (DT125C) 1976 FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

401-21511-01-20

Unavailable

2

BOLT(3RV)

97014-06035-00

$1.54

3

WASHER, SPRING

92995-06100-00

$2.95

4

WASHER, PLATE

90201-06380-00

$0.54

5

DAMPER, FENDER

322-21541-00-00

$6.28

6

UNAVAILABLE IN PRICE BOOK

588-21544-00-00

Unavailable

7

FENDER, REAR

(444-21610-00-20)

Unavailable

8

STAY, FENDER 1

(248-21613-00-91)

Unavailable

9

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

10

WASHER, SPRING

92995-06100-00

$2.95

11

NUT, HEXAGON

95380-06600-00

$4.11

12

BOLT, HEXAGON

97013-08055-00

$3.02

13

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

14

DAMPER, FRONT

168-21638-00-00

$7.96

15

WASHER, PLATE (4N0)

90201-126A7-00

$5.86

16

NUT, REAR FENDER

248-21635-00-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

WASHER, SPRING

92995-06100-00

$2.95

19

COLLAR 437216330000

90387-07391-00

Unavailable

20

GROMMET 839774310000

90480-14023-00

Unavailable

21

GUARD, MUD

(248-21629-00-00)

Unavailable

22

BAND, FLAP

(248-21622-00-33)

Unavailable

23

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

24

WASHER, SPRING

92995-06100-00

$2.95
