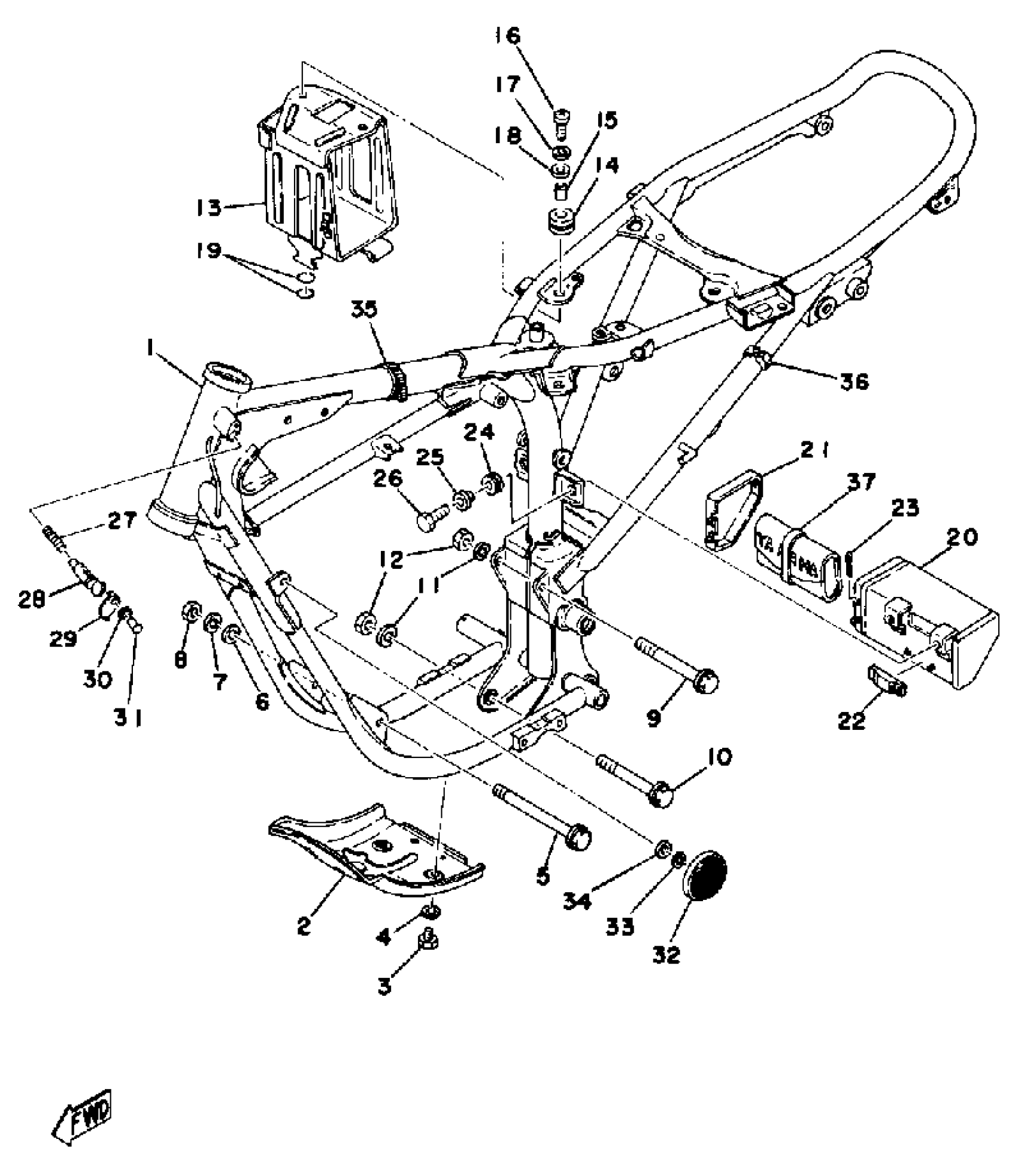

Yamaha DT125C (DT125C) 1976 FRAME-SIDE COVER Diagram

#

Description
Price

1

FRAME

(560-21110-00-33)

Unavailable

2

PROTECTOR, ENGINE

(248-21471-00-33)

Unavailable

3

BOLT (661)

97013-06012-00

$5.60

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

BOLT

90105-08024-00

$7.49

6

WASHER (401)

90209-08050-00

$10.49

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

9

BOLT, FLANGE

95821-10095-00

Unavailable

10

BOLT, FLANGE

(95821-10085-00)

Unavailable

11

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

12

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

13

BOX, BATT.

(261-21240-00-33)

Unavailable

14

DAMPER

248-21717-00-00

Unavailable

15

COLLAR (J10)

90387-06026-00

$8.49

16

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

$2.80

19

O-RING (137)

93210-12014-00

Unavailable

20

BOX, TOOL

(248-21170-00-33)

Unavailable

21

CAP, TOOL BOX

(248-21399-00-00)

Unavailable

22

DAMPER

(248-21746-00-00)

Unavailable

23

PIN, COTTER(6L5)

91490-25030-00

Unavailable

24

GROMMET 839774310000

90480-14023-00

Unavailable

25

COLLAR 437216330000

90387-07391-00

Unavailable

26

BOLT, HEXAGON

97017-06020-00

Unavailable

27

SPRING, CONICAL

90502-08005-00

Unavailable

28

STEERING LOCK ASSY

341-23408-01-00

Unavailable

29

CAP, HANDLE LOCK

(134-23484-10-00)

Unavailable

30

WASHER, WAVE

90206-04003-00

Unavailable

31

RIVET 214234830000

90269-04003-00

Unavailable

32

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

33

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

34

WASHER, PLAIN (646)

92990-05600-00

Unavailable

35

BAND

341-26397-01-00

Unavailable

36

DAMPER, MUFFLER

(444-14747-00-00)

Unavailable

37

TOOL KIT

1E7-W2810-00-00

Unavailable
