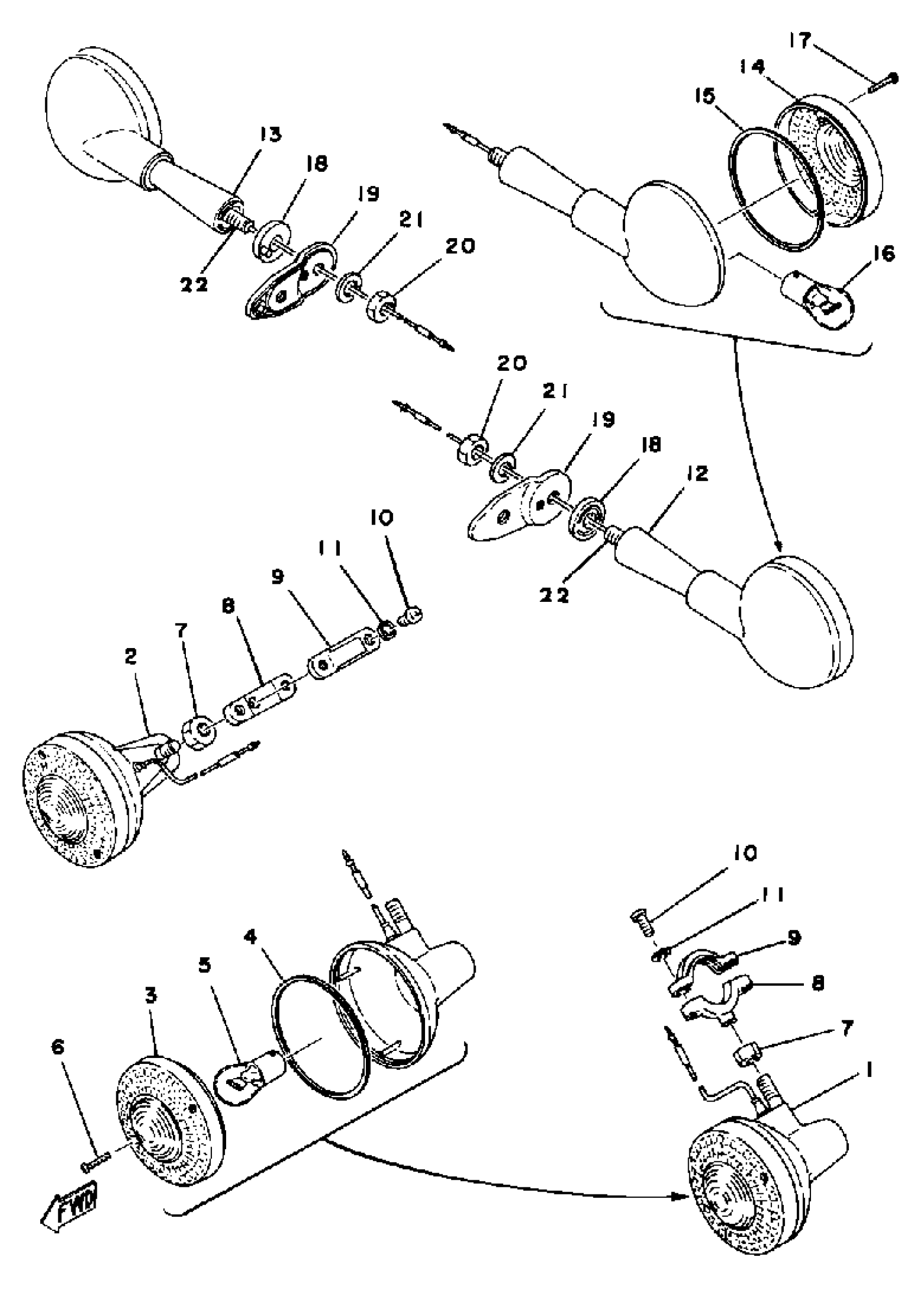

Yamaha DT125C (DT125C) 1976 FLASHER LIGHT Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

(444-83310-72-93)

Unavailable

2

FRT FLSHR LITE ASSEMBLY

(444-83310-72-93)

Unavailable

3

LENS, FLASHER

341-83312-70-00

Unavailable

4

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

5

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

NUT(6L2)

95333-08600-00

$2.49

8

STAY, FLASHER 2

437-83328-01-00

Unavailable

9

STAY, FLASHER 1

275-83318-00-00

Unavailable

10

SCREW, PAN

98507-06014-00

$8.49

11

WASHER, TOOTH

92990-06300-00

Unavailable

12

R FLSHR LITE ASSEMBLYRIGHT

444-83340-71-93

Unavailable

13

R FLSHR LITE ASSEMBLYRIGHT

444-83340-71-93

Unavailable

14

. LENS, FLASHER

341-83332-70-00

Unavailable

15

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

16

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

17

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

18

COLLAR, FLASHER 2

437-83326-00-00

Unavailable

19

STAY, FLASHER3

(437-83367-01-00)

Unavailable

20

NUT(6L2)

95333-08600-00

$2.49

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

. BOLT, STUD

360-83367-09-00

Unavailable
