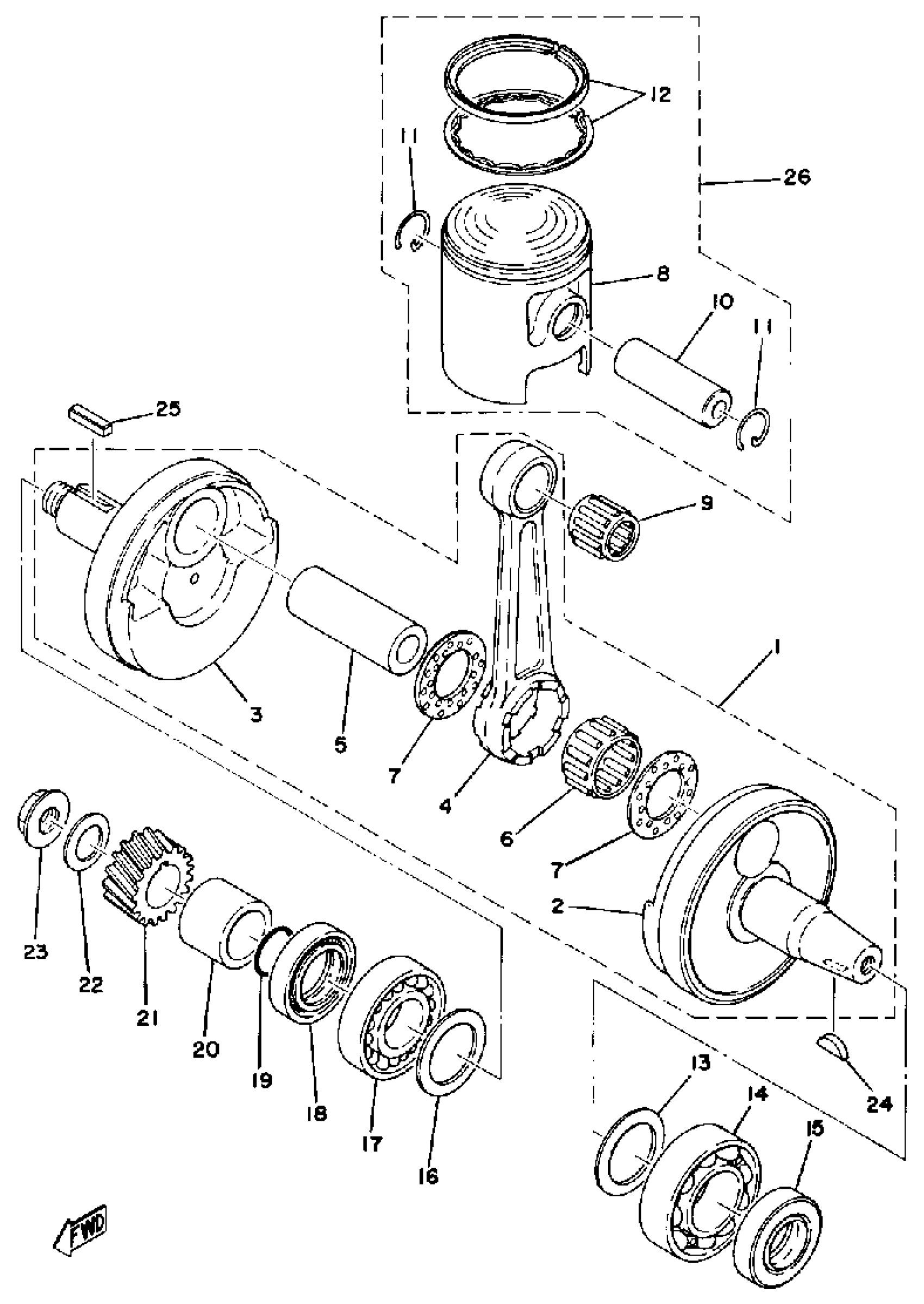

Yamaha DT125C (DT125C) 1976 CRANK-PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(560-11400-01-00)

Unavailable

2

CRANK 1

(560-11412-00-00)

Unavailable

3

CRANK 2

(525-11422-00-00)

Unavailable

4

. ROD, CONNECTING 1

25V-11651-00-00

Unavailable

5

PIN, CRANK 1

3M5-11681-00-00

$24.99

6

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

$46.99

7

WASHER (29L)

90209-22248-00

Unavailable

8

PISTON STD

560-11631-00-96

Unavailable

8

PISTON 1 O/S 0.25

560-11635-00-00

Unavailable

8

PISTON 2 O/S 0.50

560-11636-00-00

Unavailable

8

PISTON 3 O/S 0.75

(560-11637-00-00)

Unavailable

8

PISTON 4 O/S 1.00

(560-11638-00-00)

Unavailable

9

BEARING, NEEDLE (24X)

93310-216L2-00

$33.99

10

PIN, PISTON

137-11633-10-00

$27.99

11

CIRCLIP (137-11634-00)

93450-17025-00

$8.49

12

PISTON RINGSET STD

444-11610-00-00

Unavailable

12

PISTON RINGSET 1ST

444-11610-10-00

Unavailable

12

PISTON RINGSET 2ND

444-11610-20-00

Unavailable

12

PISTON RINGSET 3RD

444-11610-30-00

Unavailable

12

PISTON RINGSET 4TH

444-11610-40-00

Unavailable

13

. SHIM, CRANK 1

132-11561-00-03

Unavailable

13

SHIM, CRANK 1

132-11561-00-05

Unavailable

14

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

15

OIL SEAL (25X40X8-248)

93102-25061-00

Unavailable

16

SHIM, CRANK 1

136-11561-00-03

Unavailable

16

SHIM, CRANK 1

136-11561-00-04

Unavailable

16

SHIM, CRANK 1

136-11561-00-05

Unavailable

16

SHIM, CRANK 1

136-11561-00-06

Unavailable

16

SHIM, CRANK 1

136-11561-00-07

Unavailable

17

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

18

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

19

O-RING(3KX)

93210-180A6-00

Unavailable

20

COLLAR, DISTANCE (525)

90387-20488-00

Unavailable

21

GEAR, PRI DRIVE

525-16111-00-00

Unavailable

22

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

23

NUT(1EE)

90179-12659-00

Unavailable

24

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

25

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable
