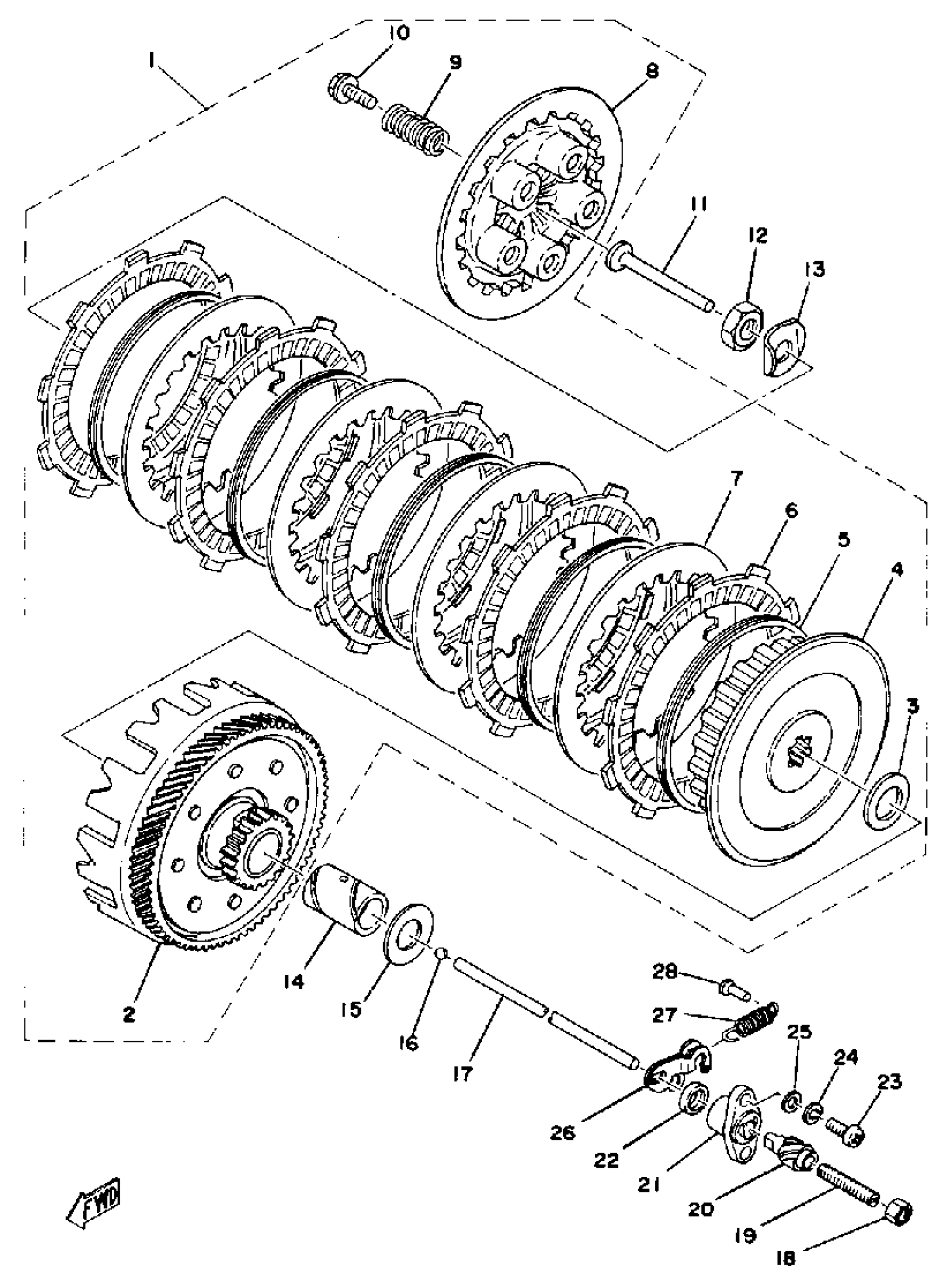

Yamaha DT125C (DT125C) 1976 CLUTCH Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(559-16301-00-00)

Unavailable

2

. PRI DRIVEN GEAR (74T)

525-16150-00-00

Unavailable

3

PLATE, THRUST

122-16164-00-00

$7.99

4

. BOSS, CLUTCH

525-16371-02-00

Unavailable

5

. RING, CUSHION

307-16367-00-00

Unavailable

6

PLATE, FRICTION

36X-16321-00-00

$17.49

7

PLATE, CLUTCH 2

137-16325-80-00

$16.49

8

. PLATE, PRESSURE 1

525-16351-00-00

Unavailable

9

SPRING, COMPRESSION (400)

90501-20361-00

$13.49

10

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

11

ROD,PUSH (1)

137-16356-00-00

$31.99

12

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

13

WASHER, LOCK (21T)

90215-12211-00

$8.49

14

SPACER (525)

90560-17147-00

Unavailable

15

WASHER, PLATE (4V2)

90201-174E1-00

$8.49

16

BALL

93503-16003-00

Unavailable

17

ROD, PUSH 2

560-16357-00-00

Unavailable

18

NUT(650)

95380-06700-00

Unavailable

19

BOLT SET 241163430000

90113-06013-00

Unavailable

20

SCREW, PUSH

241-16341-01-00

Unavailable

21

HOUSING, PUSH SCREW

314-16396-01-00

Unavailable

22

SEAL 0IL (2V7)

93104-10085-00

Unavailable

23

SCREW, PAN

98507-06014-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

LEVER, PUSH

241-16342-00-00

Unavailable

27

SPRING TENSION 132163450000

90506-10019-00

Unavailable

28

HOOK, SPRING

132-16346-00-00

Unavailable
