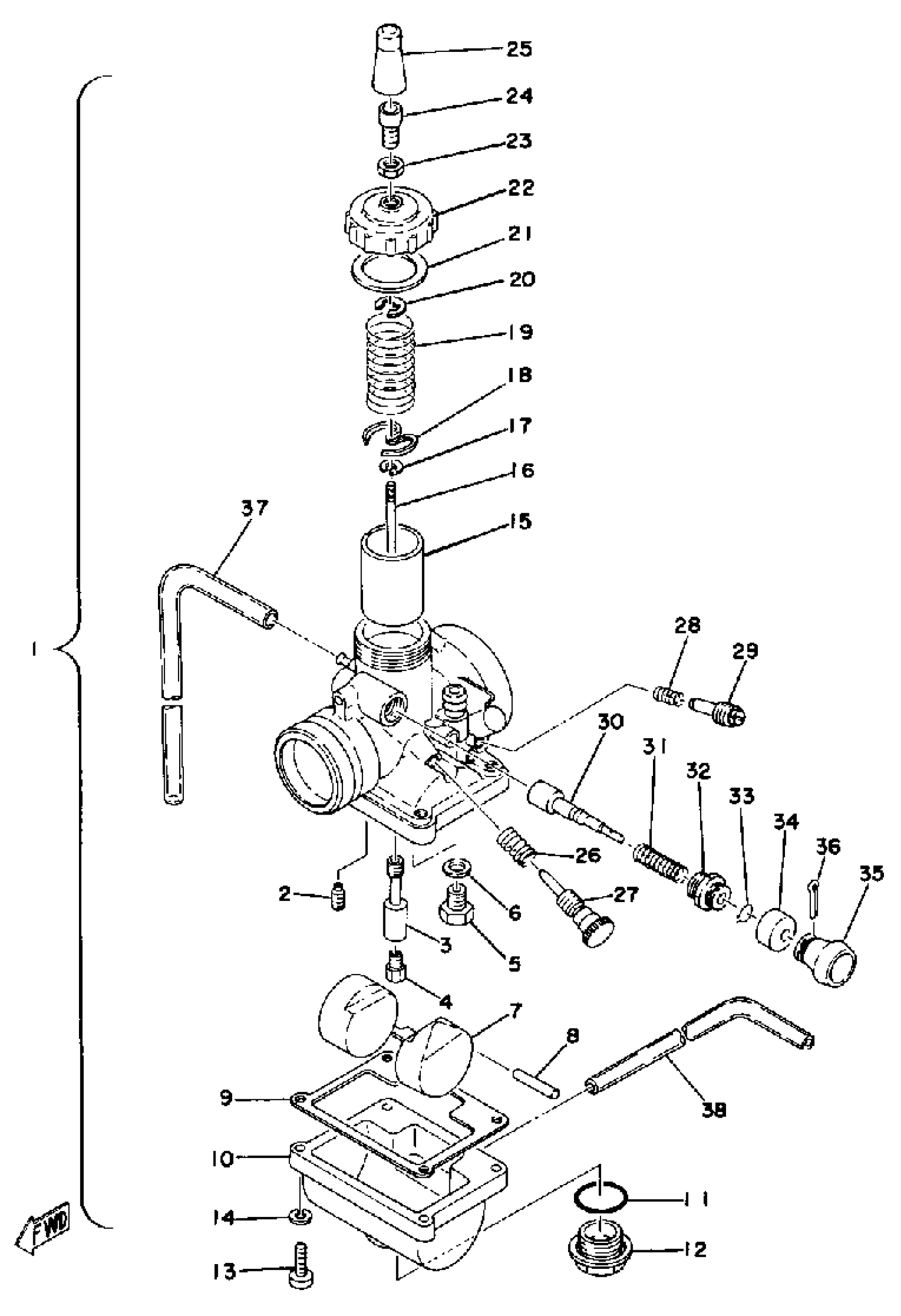

Yamaha DT125C (DT125C) 1976 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(560-14101-60-00)

Unavailable

2

JET, PILOT (# 25)

260-14142-25-00

$9.99

3

. NOZZLE, MAIN

558-14141-32-00

Unavailable

4

. JET, MAIN #95

137-14143-19-00

Unavailable

4

JET, MAIN #100

137-14143-20-00

Unavailable

4

. JET, MAIN #105

137-14143-21-00

Unavailable

5

NEEDLE VALVE SET

23L-14107-25-00

$42.99

6

WASHER, VALVE SEAT

214-14195-00-00

$7.99

7

FLOAT

314-14185-00-00

$66.99

8

PIN, FLOAT

127-14186-00-00

$6.65

9

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

10

. BODY, FLOAT CHMBR 1

539-14181-08-00

Unavailable

11

O-RING (541)

558-14147-00-00

$9.99

12

PLUG, SCREW

500-14115-00-00

$29.99

13

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

14

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

15

VALVE,THROTTLE

314-14112-20-00

Unavailable

16

. NEEDLE

443-14116-02-00

Unavailable

17

CLIP

3FA-14137-00-00

Unavailable

18

. STOPPER, CABLE

246-14132-00-00

Unavailable

19

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

20

CLIP

363-14137-00-00

Unavailable

21

GASKET

246-14126-00-00

Unavailable

22

. TOP, MIXING CHAMBER

802-14158-00-00

Unavailable

23

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

24

. SCREW, CABLE ADJUSTING

360-14124-20-00

Unavailable

25

CAP

8A7-14169-00-00

Unavailable

26

. SPRING, THROTTLE STOP

493-14133-00-00

Unavailable

27

. SCREW, THROTTLE

493-14122-00-00

Unavailable

28

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

29

AIR SCREW SET

22K-14104-00-00

Unavailable

30

. PLUNGER, STARTER

304-14171-00-00

Unavailable

31

SPRING, PLUNGER

156-14135-00-00

Unavailable

32

CAP, PLUNGER

152-14174-00-00

Unavailable

33

CLIP, PLUNGER

353-14138-00-00

Unavailable

34

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

35

HOLDER

304-14261-00-00

Unavailable

36

PIN, COTTER

91490-16020-00

Unavailable

37

PIPE, AIR VENT

183-14197-01-00

Unavailable

38

PIPE

23F-14197-00-00

Unavailable
