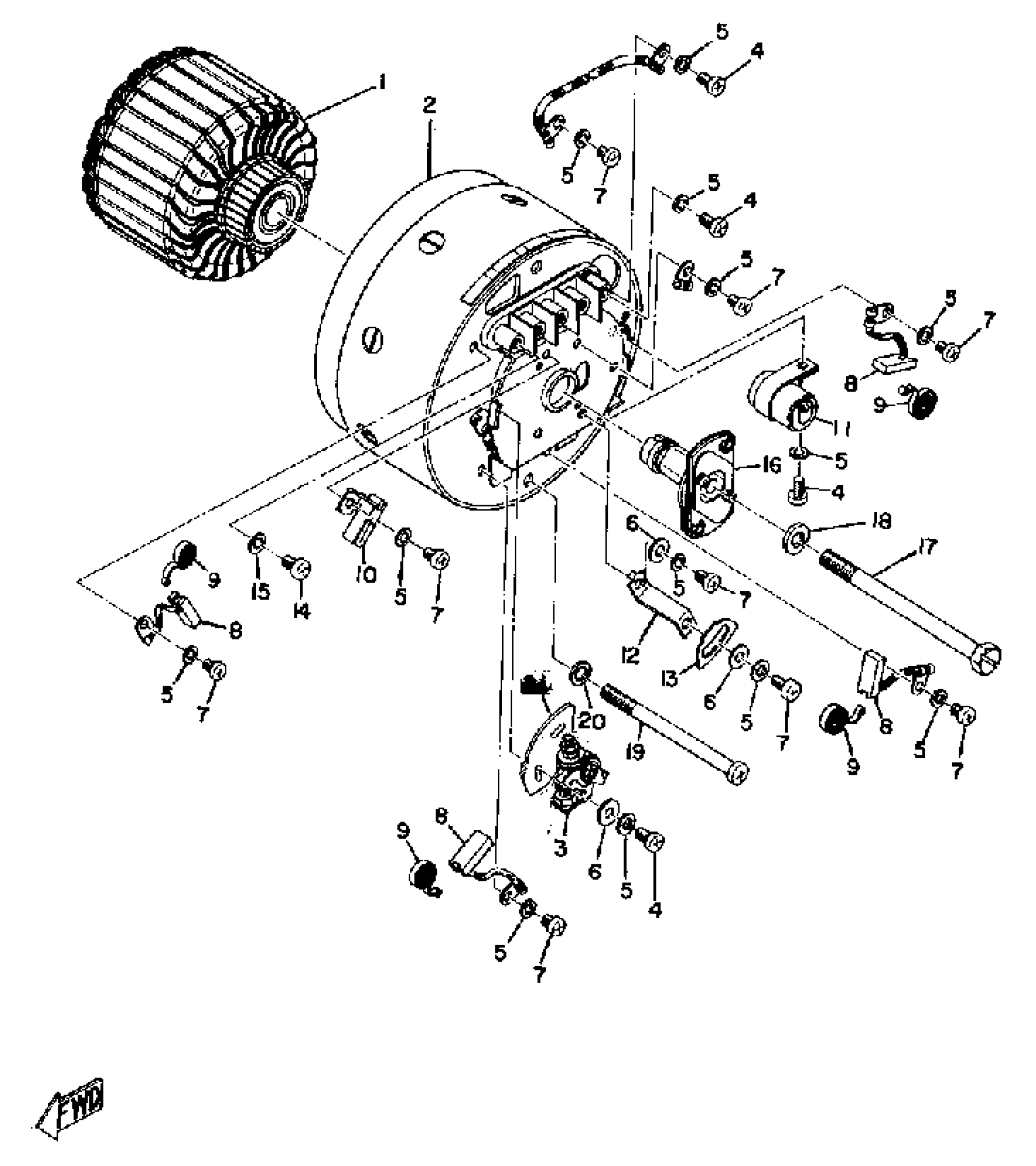

Yamaha DT125A (DT125A) 1974 STARTER GENERATOR Diagram

#

Description
Price

1

STARTER GEN ASSEMBLY

(444-81100-10-00)

Unavailable

1

ARMATURE

(444-81155-10-00)

Unavailable

2

STATOR ASSEMBLY

(444-81110-10-00)

Unavailable

3

CONTACT BREAKER ASSY

183-81421-19-00

Unavailable

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

7

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

8

BRUSH

101-81111-10-00

Unavailable

9

. SPRING, BRUSH

141-81113-10-00

Unavailable

10

. LUBRICATOR

207-81331-10-00

Unavailable

11

CNDSR 2

278-81625-91-00

Unavailable

12

FIXTURE, TMNG PLATE

(299-81133-10-00)

Unavailable

13

PLATE, TIMING

(133-81132-10-00)

Unavailable

14

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

16

GOVERNOR ASSEMBLY

(444-81153-10-00)

Unavailable

17

BOLT

(148-81152-10-00)

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

SCREW, PAN

98507-06085-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

PLATE, BREAKER

(444-81428-10-00)

Unavailable
