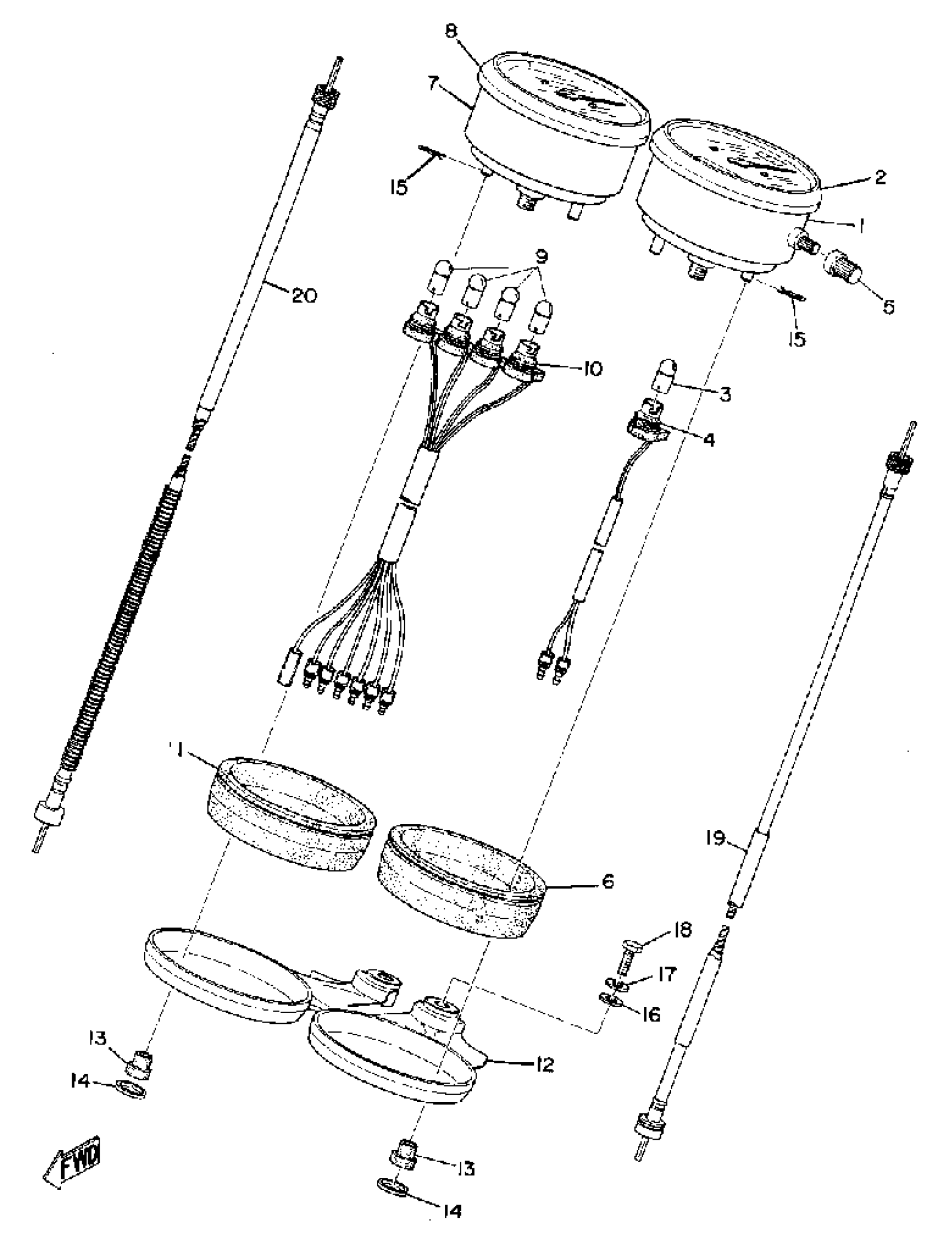

Yamaha DT125A (DT125A) 1974 SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

(444-83570-41-00)

Unavailable

2

DAMPER

(437-83513-00-00)

Unavailable

3

BULB (12V-3.4W)

123-83516-21-00

$4.26

4

SOCKET, METER

(438-83536-30-00)

Unavailable

5

KNOB, TRIP METER

(308-83578-30-00)

Unavailable

6

DAMPER 2

(438-83526-00-00)

Unavailable

7

TACHOMETER ASSEMBLY

(444-83540-01-00)

Unavailable

8

DAMPER

(437-83513-00-00)

Unavailable

9

BULB (12V-3.4W)

123-83516-21-00

$4.26

10

SOCKET CORD ASSEMBLY

(443-83520-00-00)

Unavailable

11

DAMPER

(438-83592-00-00)

Unavailable

12

BRACKET, METER

438-83519-02-98

Unavailable

13

DAMPER

437-83523-00-00

Unavailable

14

WASHER, SPECIAL

437-83524-00-00

Unavailable

15

CLIP (156-83525-00)

90468-10050-00

$3.05

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

BOLT(JF7)

97080-06030-00

Unavailable

19

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

Unavailable

20

TACHOMETER CABLE

444-83560-01-00

Unavailable
