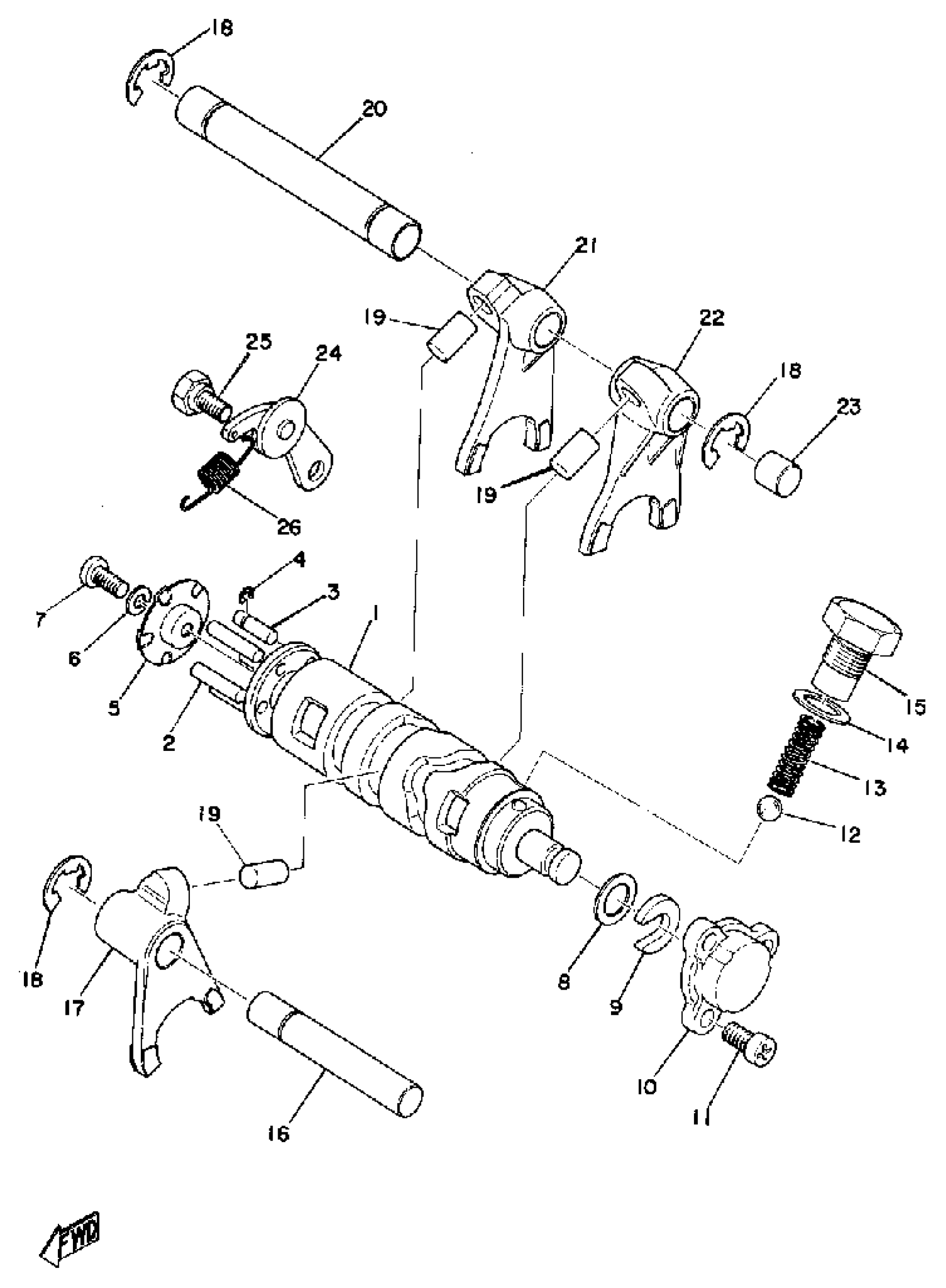

Yamaha DT125A (DT125A) 1974 SHIFTER 1 Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

315-18540-00-00

Unavailable

2

PIN,DOWEL (620)

93604-22050-00

$8.49

3

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

Unavailable

4

. CIRCLIP, E-TYPE

93430-03014-00

Unavailable

5

PLATE, SIDE

164-18561-00-00

$5.49

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

8

WASHER PLATE 164185720000

90201-12166-00

$9.49

9

HOLDER, SHIFT CAM

164-18571-01-00

$8.99

10

PLUG, BLIND SHIFT CAM

164-18589-00-00

Unavailable

11

SCREW PAN HEAD

98580-06010-00

$8.49

12

BALL

93505-16006-00

$8.49

13

SPRING, COMPRESION

90501-12750-00

Unavailable

14

WASHER, PROTECTOR

4F4-14766-00-00

$6.99

15

BOLT

90109-14385-00

$16.99

16

BAR, SHIF FRK GDE 1

(248-18531-00-00)

Unavailable

17

FORK, SHIFT 2

463-18512-00-00

Unavailable

18

CIRCLIP

99006-10600-00

Unavailable

19

PIN, STRAIGHT

90250-08017-00

Unavailable

20

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

Unavailable

21

FORK, SHIFT 3

463-18513-00-00

Unavailable

22

FORK, SHIFT 1

463-18511-00-00

Unavailable

23

PLUG, BLIND

214-15385-00-00

Unavailable

24

STOPPER LEVER ASSY

132-18140-01-00

Unavailable

25

BOLT

90109-06239-00

Unavailable

26

SPRING, TENSION (260)

90506-09112-00

Unavailable
