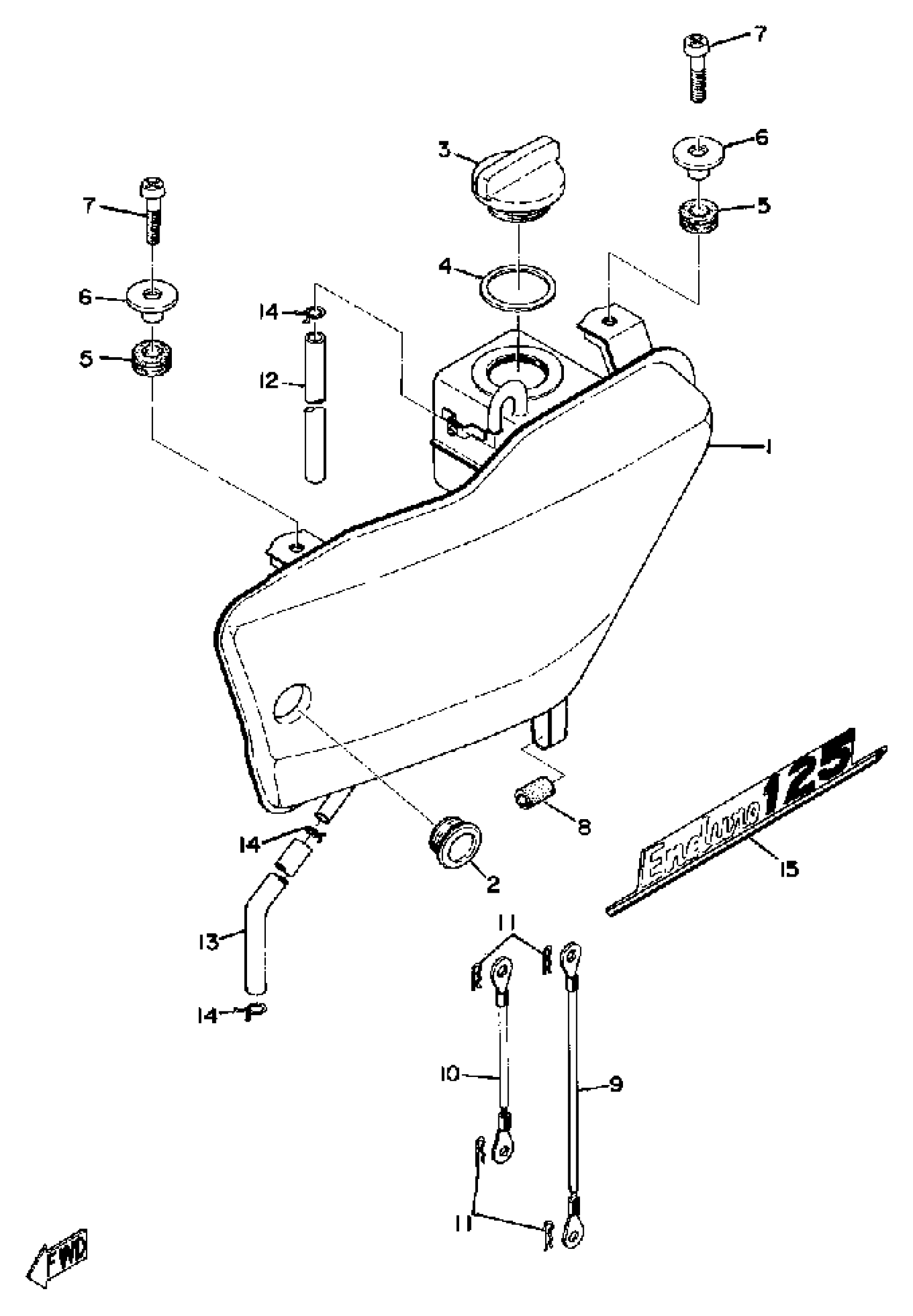

Yamaha DT125A (DT125A) 1974 OIL TANK Diagram
#
Description
Price
1
OIL TANK ASSEMBLY
(444-21705-00-63)
Unavailable
1
OIL TANK ASSEMBLY
(444-21705-00-E1)
Unavailable
1
EMBLEM 7
(444-21787-20-00)
Unavailable
2
. GAUGE, LEVEL
360-21761-00-00
Unavailable
6
COLLAR 437216330000
90387-07391-00
Unavailable
7
SCREW, PAN HEAD
(90157-06029-00)
Unavailable
8
DAMPER, OIL TANK
437-21779-00-00
Unavailable
9
BOLT, TANK FITTING
(248-21775-00-00)
Unavailable
10
BOLT, TANK FITTING
(261-21775-00-00)
Unavailable
14
CLIP 101235600
90467-08003-00
Unavailable
15
EMBLEM 7
(444-21787-00-00)
Unavailable
