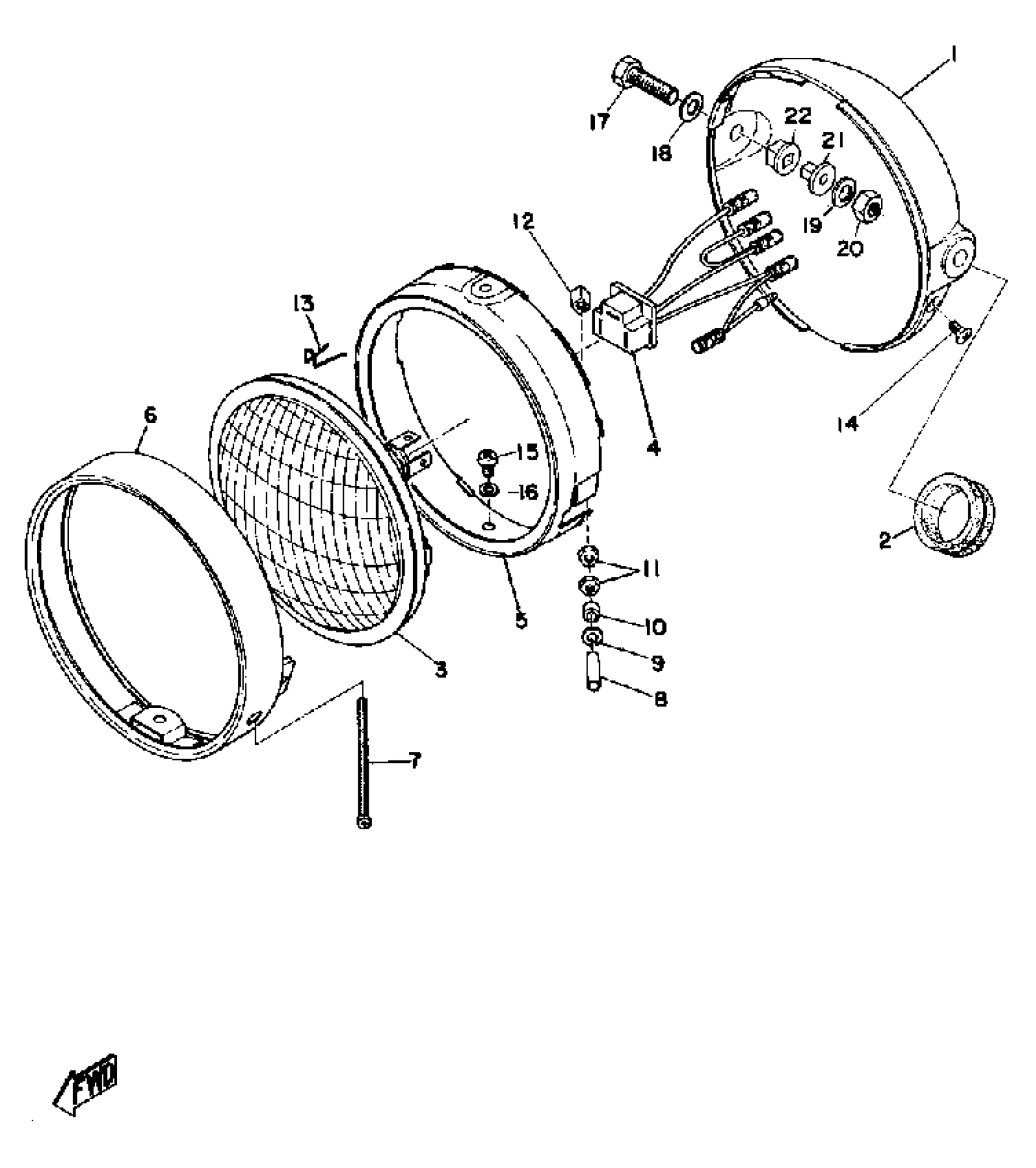

Yamaha DT125A (DT125A) 1974 HEAD LAMP Diagram

#

Description
Price

1

BODY ASSEMBLY

(444-84330-60-20)

Unavailable

2

GROMMET, WIREHARNESS

214-84153-60-00

$7.99

3

. LENS ASSEMBLY

444-84320-61-00

Unavailable

4

SOCKET, CORD

261-84312-61-00

Unavailable

5

RING, RETAINING

(437-84195-62-00)

Unavailable

6

RIM, HEADLIGHT

(437-84115-62-00)

Unavailable

7

SCREW 214841316100

90157-04001-00

$8.49

8

COLLAR, SCREW

438-84133-60-00

Unavailable

9

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

10

SPACER

168-84328-60-00

Unavailable

11

NUT(6TA)

95307-04600-00

$8.49

12

NUT, ADJUST

198-84334-60-00

$7.99

13

SPRING, REFLECTOR SET

148-84324-00-00

$6.99

14

SCREW, OVAL HEAD (1A0)

90152-05005-00

$4.29

15

. SCREW

438-84194-60-00

Unavailable

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

BOLT (682)

97013-08025-00

Unavailable

18

WASHER, PLAIN

92990-08200-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

20

NUT(6L2)

95333-08600-00

Unavailable

21

COLLAR, BODY FTNG

214-84145-60-00

Unavailable

22

DAMPER, HDLT STAY

(214-84143-60-00)

Unavailable
