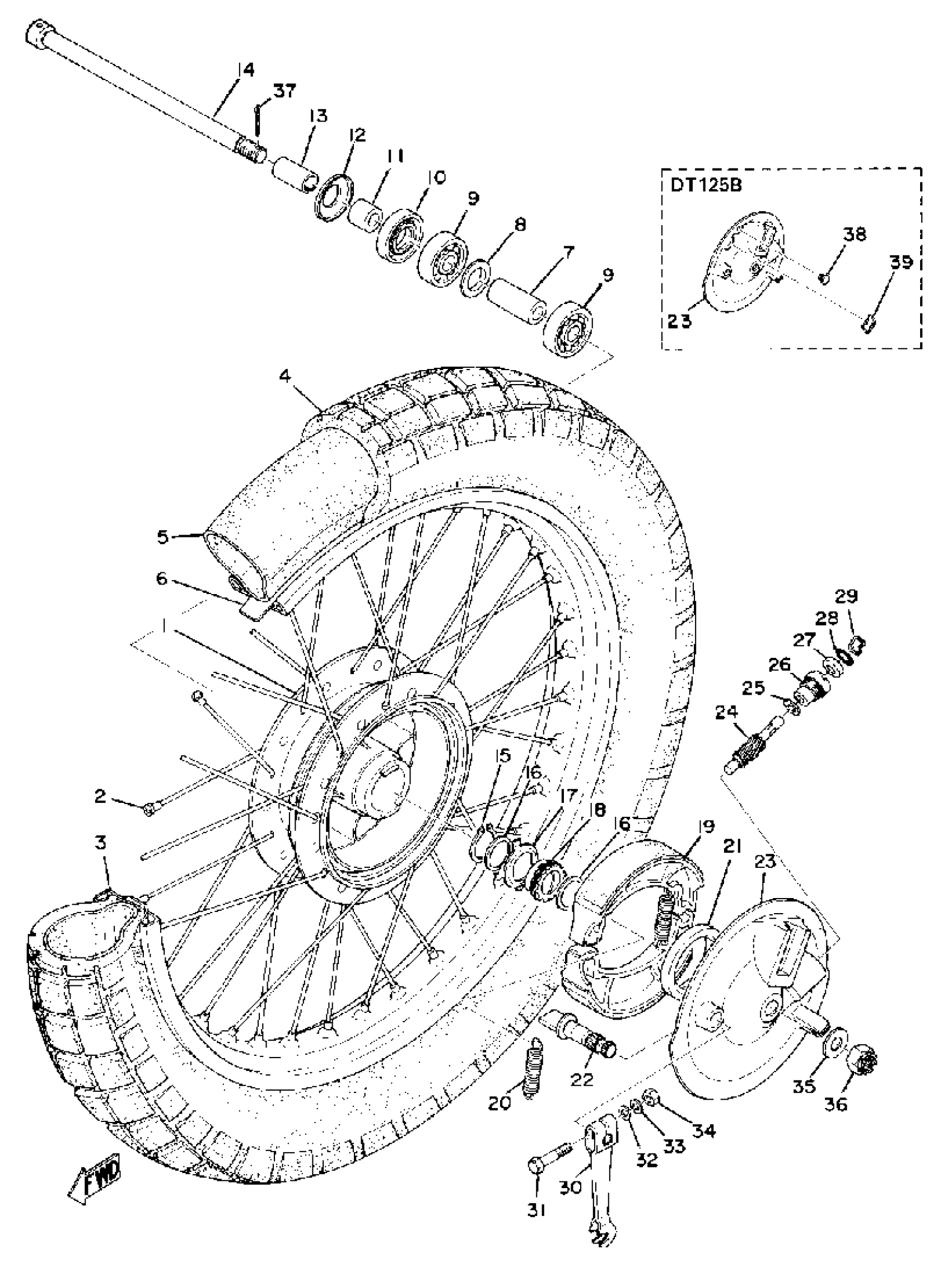

Yamaha DT125A (DT125A) 1974 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(183-25111-00-00)

Unavailable

2

SPOKE SET, FRONT

(443-25104-00-00)

Unavailable

2

SPOKE SET, INNER 1

(443-25196-90-00)

Unavailable

2

SPOKE SET, OUTER 1

(443-25197-90-00)

Unavailable

3

RIM 1.60X19

(94416-19116-00)

Unavailable

4

300X19 YOKO Y620

(94130-19318-00)

Unavailable

5

TUBE

94230-19047-00

Unavailable

6

BAND RIM

(94330-19035-00)

Unavailable

7

SPACER

90560-12138-00

Unavailable

8

FLANGE, SPACER

109-25315-00-00

$7.99

9

BEARING

93306-30102-00

$39.99

10

OIL SEAL (18X37X8-109)

93102-18008-00

$25.99

11

COLLAR 1832518300

90387-12095-00

$5.60

12

COVER, HUB DUST

2K5-25118-00-00

$8.99

13

COLLAR

90387-12100-00

Unavailable

14

SHAFT, WHEEL

401-25181-01-00

Unavailable

15

CIRCLIP(1AR)

99009-20400-00

Unavailable

16

WASHER, PLATE 1832514700

90201-20269-00

Unavailable

17

CLUTCH, METER

183-25149-00-00

Unavailable

18

GEAR, DRIVE

301-25135-00-00

Unavailable

19

BRAKE SHOE SET-2PCS

183-W2536-00-00

Unavailable

19

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

20

SPRING (5T9)

90506-17328-00

Unavailable

21

SEAL,OIL

93105-47007-00

Unavailable

22

CAM SHAFT

122-25351-02-00

Unavailable

23

BRAKE SHOE PLT ASSEMBLY

(443-25120-10-00)

Unavailable

24

GEAR, METER

301-25138-00-00

Unavailable

25

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

26

BUSHING

109-25136-00-00

Unavailable

27

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

28

O-RING (26H)

93210-14579-00

Unavailable

29

RING, STOP

102-25137-00-00

Unavailable

30

LEVER, CAMSHAFT 1

214-25155-01-00

Unavailable

31

BOLT(JF7)

97080-06030-00

Unavailable

32

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

NUT, HEXAGON

95380-06600-00

Unavailable

35

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

36

NUT CASTLE(481)

90171-12005-00

Unavailable

37

PIN, COTTER

91490-30030-00

Unavailable

38

GROMMET (397)

90480-10068-00

Unavailable

39

LABEL, INDICATOR

(437-25134-00-00)

Unavailable
