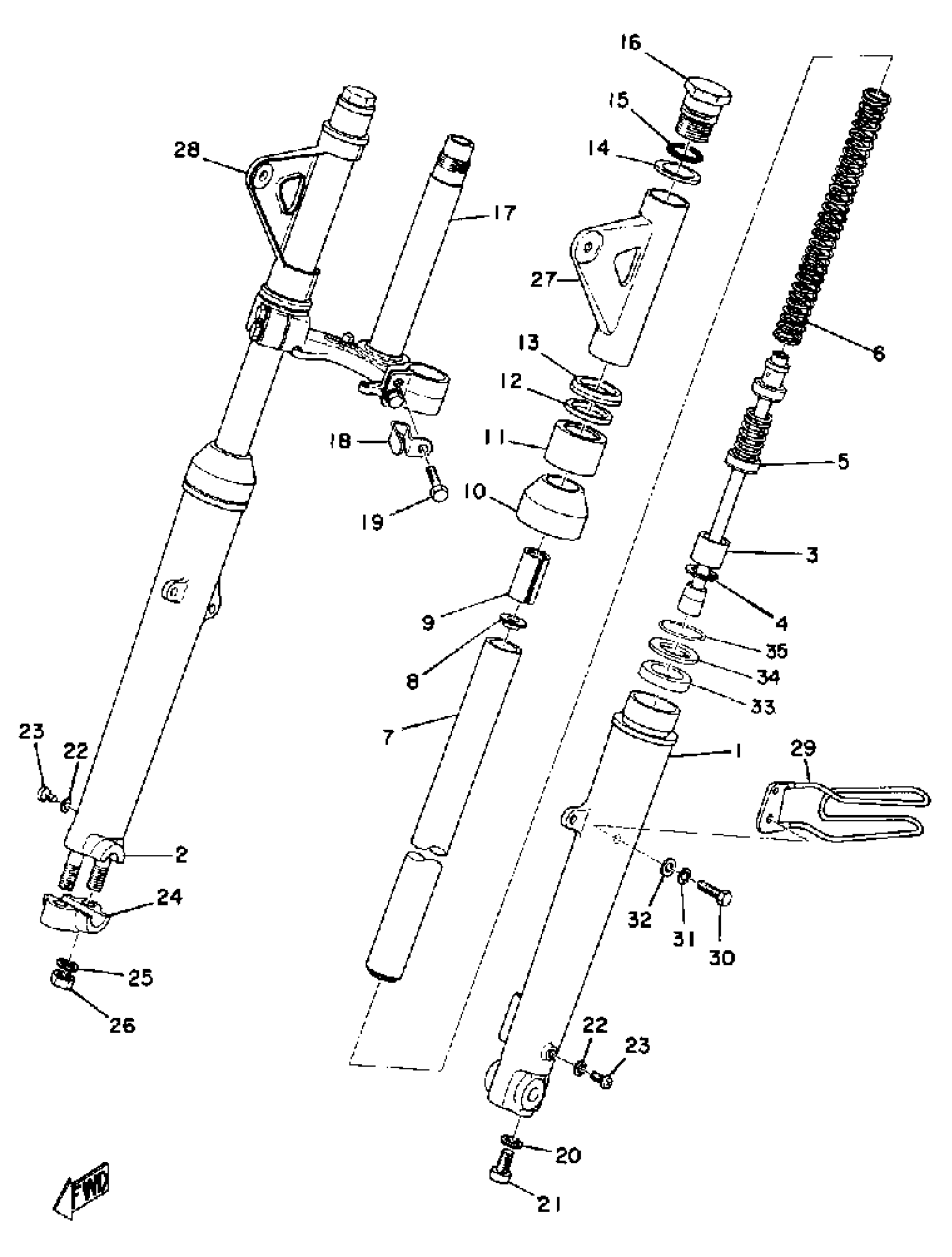

Yamaha DT125A (DT125A) 1974 FRONT FORK Diagram

#

Description

Price

1

TUBE, OUTER 1

(315-23126-50-00)

Unavailable

1

FRONT FORK ASSEMBLY

(443-23101-01-00)

Unavailable

2

TUBE, OUTER 2

(315-23136-50-00)

Unavailable

3

PISTON, FRONT FORK

(315-23171-50-00)

Unavailable

4

CIRCLIP

(535-23183-01-00)

Unavailable

5

CYLINDER, FRTFRK

(443-23170-01-00)

Unavailable

6

. SPRING, FRONT FORK

318-23141-00-00

Unavailable

7

TUBE, INNER 1

(315-23124-50-00)

Unavailable

8

SEAT, SPRING UPPER

(248-23142-00-00)

Unavailable

9

SPACER

(443-23118-01-00)

Unavailable

10

SEAL, DUST

248-23144-00-00

$32.99

11

COVER, OUTER 1

(248-23122-01-00)

Unavailable

12

. GASKET (LAMP STAY)

291-23163-61-00

Unavailable

13

GUIDE, COVER LOWER

(248-23116-01-00)

Unavailable

14

GUIDE, COVER UPPER

(248-23115-01-00)

Unavailable

15

PACKING(O-RING)

146-23114-00-00

Unavailable

16

BOLT, CAP

(2K5-23111-00-00)

Unavailable

17

UNDER BRACKET

(460-23340-30-33)

Unavailable

18

HOLDER, CABLE 1

(256-23318-60-00)

Unavailable

19

BOLT, AXLE HOLDER

18G-23128-00-00

Unavailable

20

GASKET

(214-23158-00-00)

Unavailable

21

BOLT,SOCKET

91314-08020-00

Unavailable

22

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

23

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

24

. HOLDER, AXLE

315-23167-51-00

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

26

NUT(6L2)

95333-08600-00

Unavailable

27

COVER, UPPER 1

(438-23121-00-20)

Unavailable

28

COVER, UPPER 2

(438-23131-00-20)

Unavailable

29

HOLDER, CABLE 1

(437-23318-00-00)

Unavailable

30

BOLT, HEXAGON

97017-06020-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

33

OIL SEAL

137-23145-01-00

Unavailable

34

WASHER, OIL SEAL

(315-23146-50-00)

Unavailable

35

CLIP, OIL SEAL

(315-23156-50-00)

Unavailable
