Description

Price

1

FENDER, FRONT

403-21511-01-20

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$4.24

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

DAMPER, FENDER

322-21541-00-00

$7.99

6

COLLAR

90387-06158-00

$8.49

7

FENDER, REAR

(444-21610-00-20)

Unavailable

8

STAY, FENDER 1

(248-21613-00-91)

Unavailable

9

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

NUT, REAR FENDER

248-21635-00-00

Unavailable

13

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

14

DAMPER, FRONT

168-21638-00-00

$9.99

15

BOLT, HEXAGON

97017-06025-00

$4.24

16

WASHER, SPRING

92995-06100-00

Unavailable

17

COLLAR 437216330000

90387-07391-00

Unavailable

18

GROMMET 839774310000

90480-14023-00

Unavailable

19

GUARD, MUD

(248-21629-00-00)

Unavailable

20

BAND, FLAP

(248-21622-00-33)

Unavailable

21

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

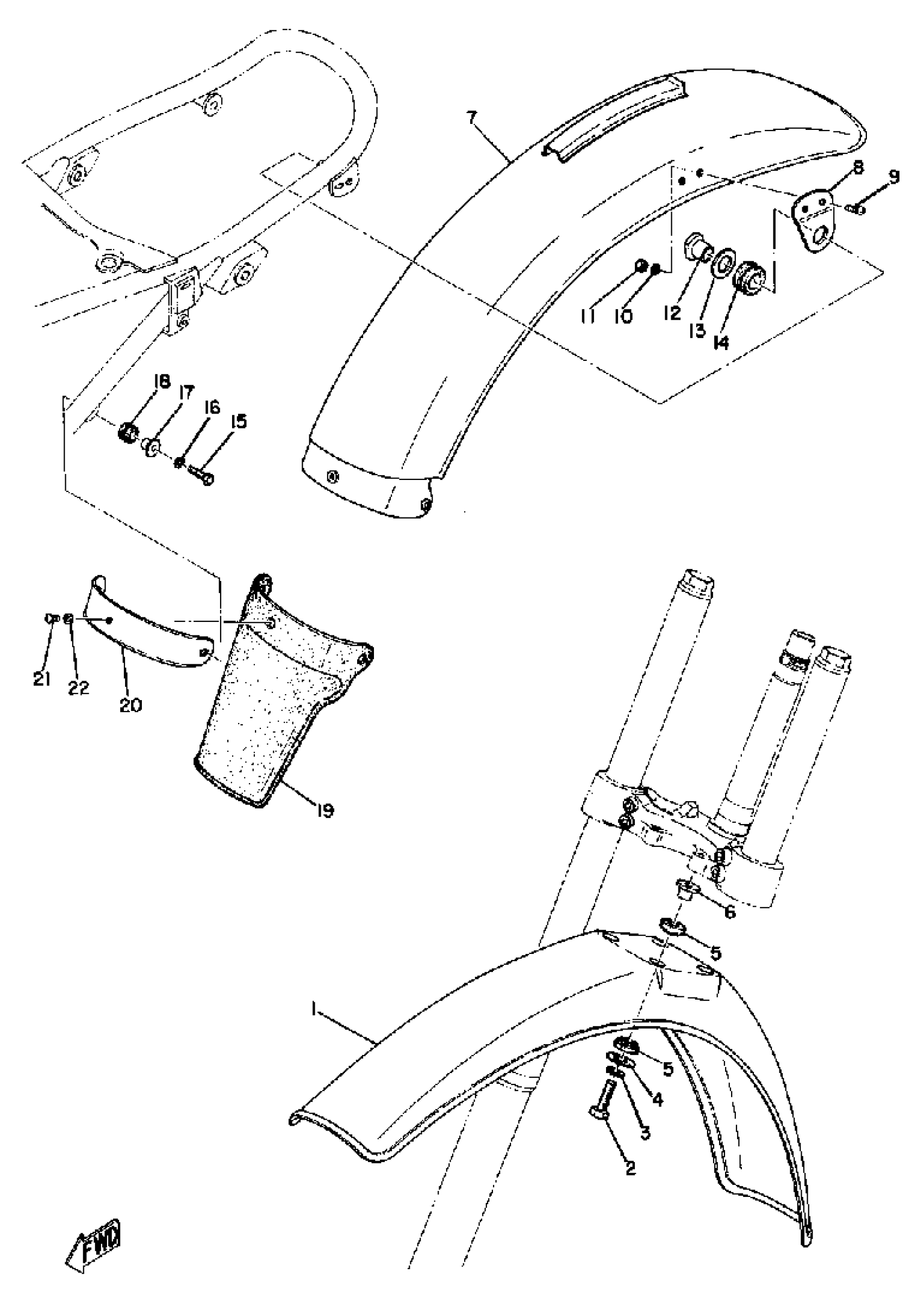

Yamaha DT125A (DT125A) 1974 FRONT FENDER - REAR FENDER Diagram

FENDER, FRONT

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLATE

DAMPER, FENDER

COLLAR

FENDER, REAR

STAY, FENDER 1

SCREW, PAN HEAD(62J)

WASHER, SPRING

NUT, HEXAGON

NUT, REAR FENDER

WASHER, PLATE (4N0)

DAMPER, FRONT

BOLT, HEXAGON

WASHER, SPRING

COLLAR 437216330000

GROMMET 839774310000

GUARD, MUD

BAND, FLAP

SCREW, PAN HEAD(62J)

WASHER, SPRING
