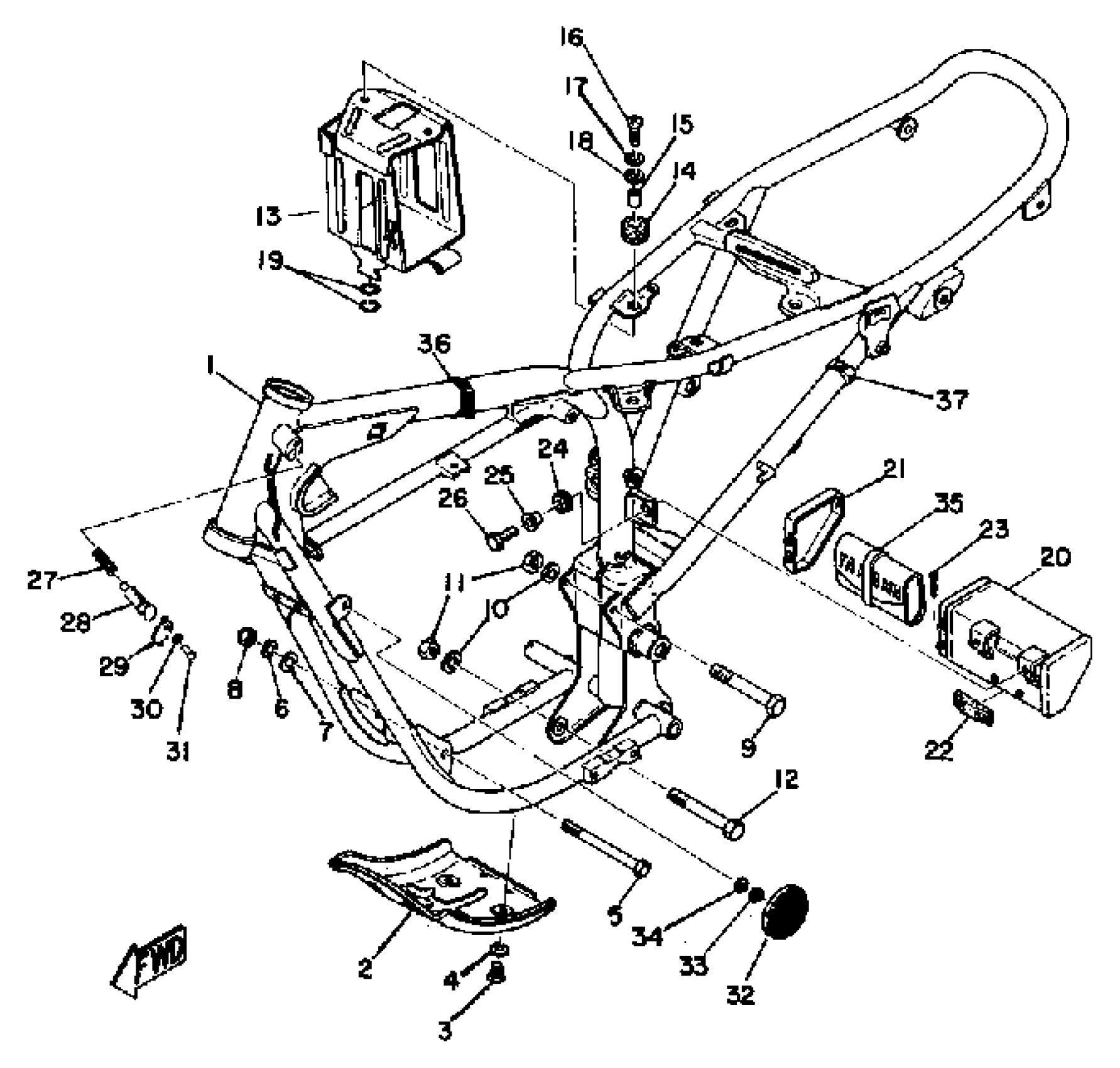

Yamaha DT125A (DT125A) 1974 FRAME - SIDE COVER Diagram

#

Description
Price

1

FRAME

(444-21110-01-33)

Unavailable

2

PROTECTOR, ENGINE

(248-21471-00-33)

Unavailable

3

BOLT (661)

97013-06012-00

$5.60

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

5

BOLT

90105-08024-00

$7.49

6

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

7

WASHER (401)

90209-08050-00

$10.49

8

NUT, U

95617-08100-00

$9.49

9

BOLT,HEXAGON

97027-10095-00

Unavailable

10

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

11

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

12

BOLT, HEXAGON

97321-10090-00

Unavailable

13

BOX, BATT.

(261-21240-00-33)

Unavailable

14

DAMPER

248-21717-00-00

Unavailable

15

COLLAR (J10)

90387-06026-00

$8.49

16

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

17

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

19

O-RING (137)

93210-12014-00

Unavailable

20

BOX, TOOL

(248-21170-00-33)

Unavailable

21

CAP, TOOL BOX

(248-21399-00-00)

Unavailable

22

DAMPER

(248-21746-00-00)

Unavailable

23

PIN, COTTER(6L5)

91490-25030-00

Unavailable

24

GROMMET 839774310000

90480-14023-00

Unavailable

25

COLLAR 437216330000

90387-07391-00

Unavailable

26

BOLT, HEXAGON

97017-06020-00

Unavailable

27

SPRING, CONICAL

90502-08005-00

Unavailable

28

STEERING LOCK ASSY

341-23408-01-00

Unavailable

29

UNAVAILABLE IN PRICE BOOK

134-34841-00-0

Unavailable

30

WASHER, WAVE

90206-04003-00

Unavailable

31

RIVET 214234830000

90269-04003-00

Unavailable

32

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

33

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

34

. WASHER, PLAIN

92990-05200-00

Unavailable

35

TOOL KIT

(315-W2810-10-00)

Unavailable

36

BAND

341-26397-01-00

Unavailable

37

DAMPER, MUFFLER

(444-14747-00-00)

Unavailable
