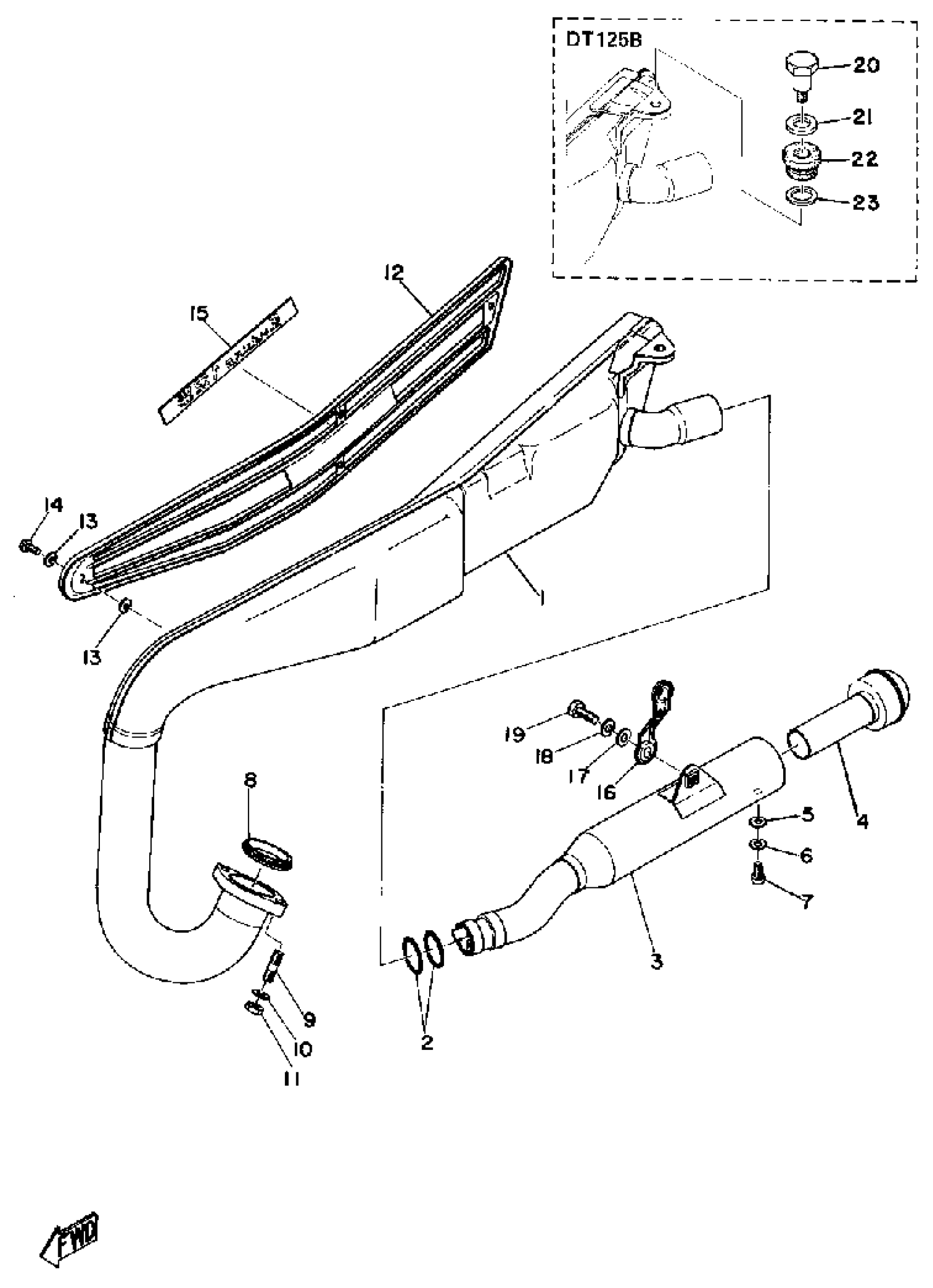

Yamaha DT125A (DT125A) 1974 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSEMBLY L
(444-14610-01-00)
Unavailable
2
O-RING
93210-27250-00
Unavailable
3
SILENCER, EXHAUST
444-14753-01-00
Unavailable
4
PIPE, OUTLET
438-14752-00-00
Unavailable
6
WASHER, SPRING
92995-06100-00
Unavailable
7
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
9
BOLT, STUD
90116-06146-00
Unavailable
12
PROTECTOR, MUFF 1
444-14718-00-00
Unavailable
15
EMBLEM, PROTECTOR
(444-14729-01-00)
Unavailable
16
STAY, MUFFLER
444-14791-01-00
Unavailable
17
WASHER, PLAIN
92990-08200-00
Unavailable
19
BOLT, HEXAGON
97013-08020-00
Unavailable
20
BOLT
90109-08391-00
Unavailable
21
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
22
DAMPER, FRONT
168-21638-00-00
Unavailable
23
WASHER PLATE 168217580000
90201-18262-00
Unavailable
