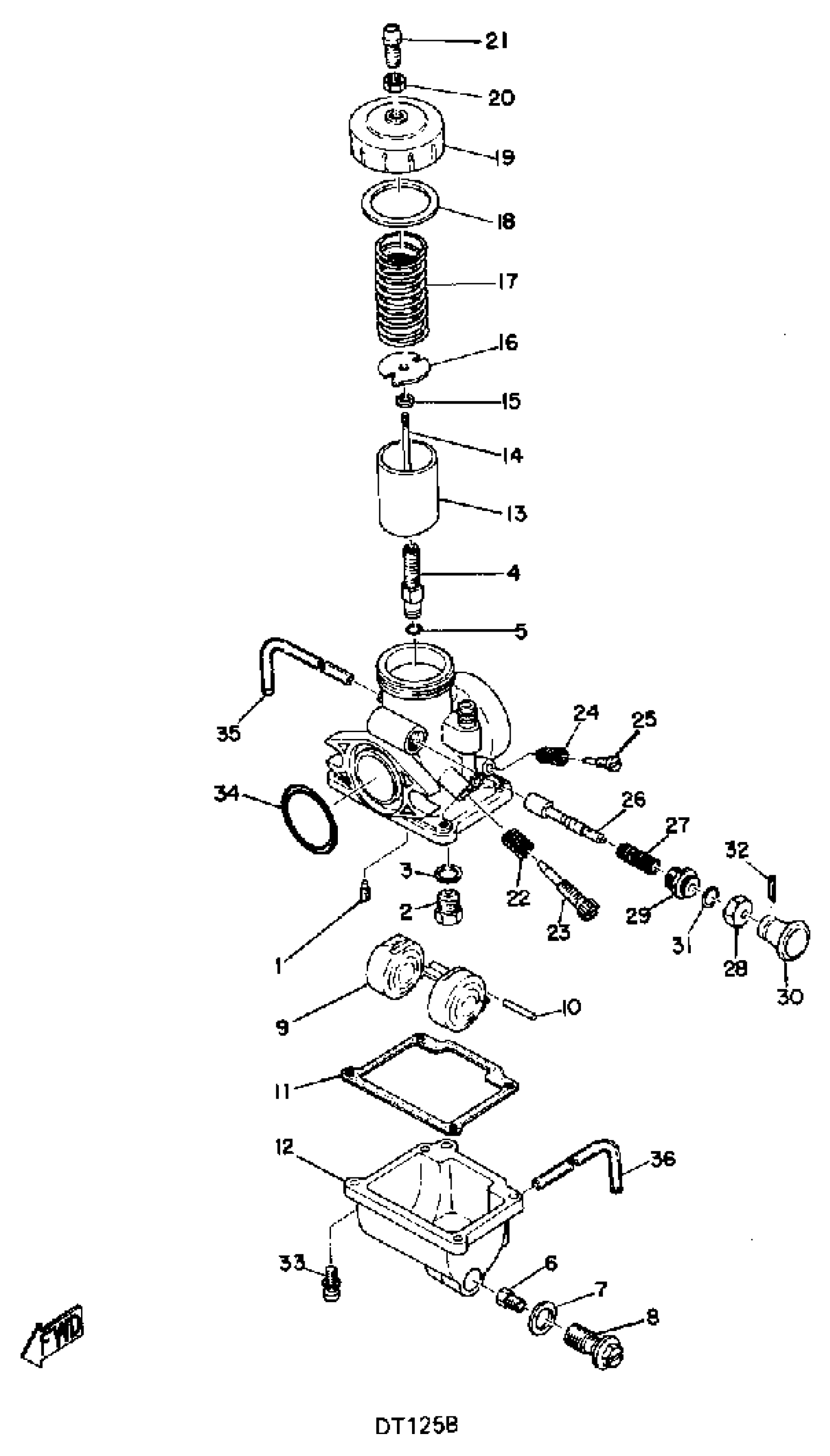

Yamaha DT125A (DT125A) 1974 CARBURETOR Diagram

#

Description
Price

1

JET, PILOT (# 25)

260-14142-25-00

$9.99

1

CARBURETOR ASSEMBLY 1

444-14101-60-00

Unavailable

2

NEEDLE VALVE SET

23L-14107-25-00

$42.99

3

WASHER, VALVE SEAT

214-14195-00-00

$7.99

4

NOZZLE, MAIN

(314-14141-32-00)

Unavailable

5

O-RING

214-14147-00-00

$7.99

6

JET, MAIN #130

137-14143-26-A0

$7.99

6

JET, MAIN #140

137-14143-28-A0

Unavailable

6

JET, MAIN #150

137-14143-30-00

$7.99

7

GASKET

304-14198-00-00

$7.99

8

BOLT,BANJO

479-14166-00-00

Unavailable

9

FLOAT

4NR-14185-00-00

$41.99

10

PIN, FLOAT

127-14186-00-00

$6.65

11

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

12

. BODY, FLOAT CHMBR 1

314-14181-08-00

Unavailable

13

VALVE,THROTTLE

314-14112-20-00

Unavailable

14

. NEEDLE

443-14116-02-00

Unavailable

15

CLIP

3FA-14137-00-00

Unavailable

16

. STOPPER, CABLE

246-14132-00-00

Unavailable

17

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

18

GASKET

246-14126-00-00

Unavailable

19

. NO LONGER AVAILABLE

316-14158-00-33

Unavailable

20

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

21

. SCREW, CABLE ADJUSTING

360-14124-20-00

Unavailable

22

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

23

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

24

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

25

AIR SCREW SET

22K-14104-00-00

Unavailable

26

. PLUNGER, STARTER

304-14171-00-00

Unavailable

27

SPRING, PLUNGER

156-14135-00-00

Unavailable

28

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

29

CAP, PLUNGER

152-14174-00-00

Unavailable

30

HOLDER

304-14261-00-00

Unavailable

31

. CLIP, PLUNGER

152-14138-00-00

Unavailable

32

PIN, COTTER

91490-16020-00

Unavailable

33

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

34

O-RING

248-14147-00-00

Unavailable

35

PIPE, AIR VENT

183-14197-01-00

Unavailable

36

PIPE

23F-14197-00-00

Unavailable
