Description

Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

RACE, BALL 2

B6E-23412-00-00

$13.49

3

BALL

93501-04011-00

$8.49

4

RACE, BALL 1

BP2-23411-00-00

$11.49

5

RACE, BALL 2

BP2-23412-00-00

$7.49

6

BALL

93503-16003-00

$2.72

7

NUT

90179-25004-00

$24.99

8

COVER, BALL RACE

122-23416-00-00

$7.99

9

CROWN, HANDLE

354-23435-00-33

Unavailable

10

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

11

BOLT, FLANGE

95817-08035-00

$9.49

12

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

13

BOLT, HEXAGON

97013-08030-00

$2.49

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

STEERING LOCK ASSEMBLY

2N3-23408-00-00

Unavailable

16

SCREW, COUNTERSUNK

(90152-05009-00)

Unavailable

16

SCREW(617)

98780-05012-00

Unavailable

17

HOLDER, CABLE 1

1T9-23318-00-00

Unavailable

18

BOLT (661)

97013-06012-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

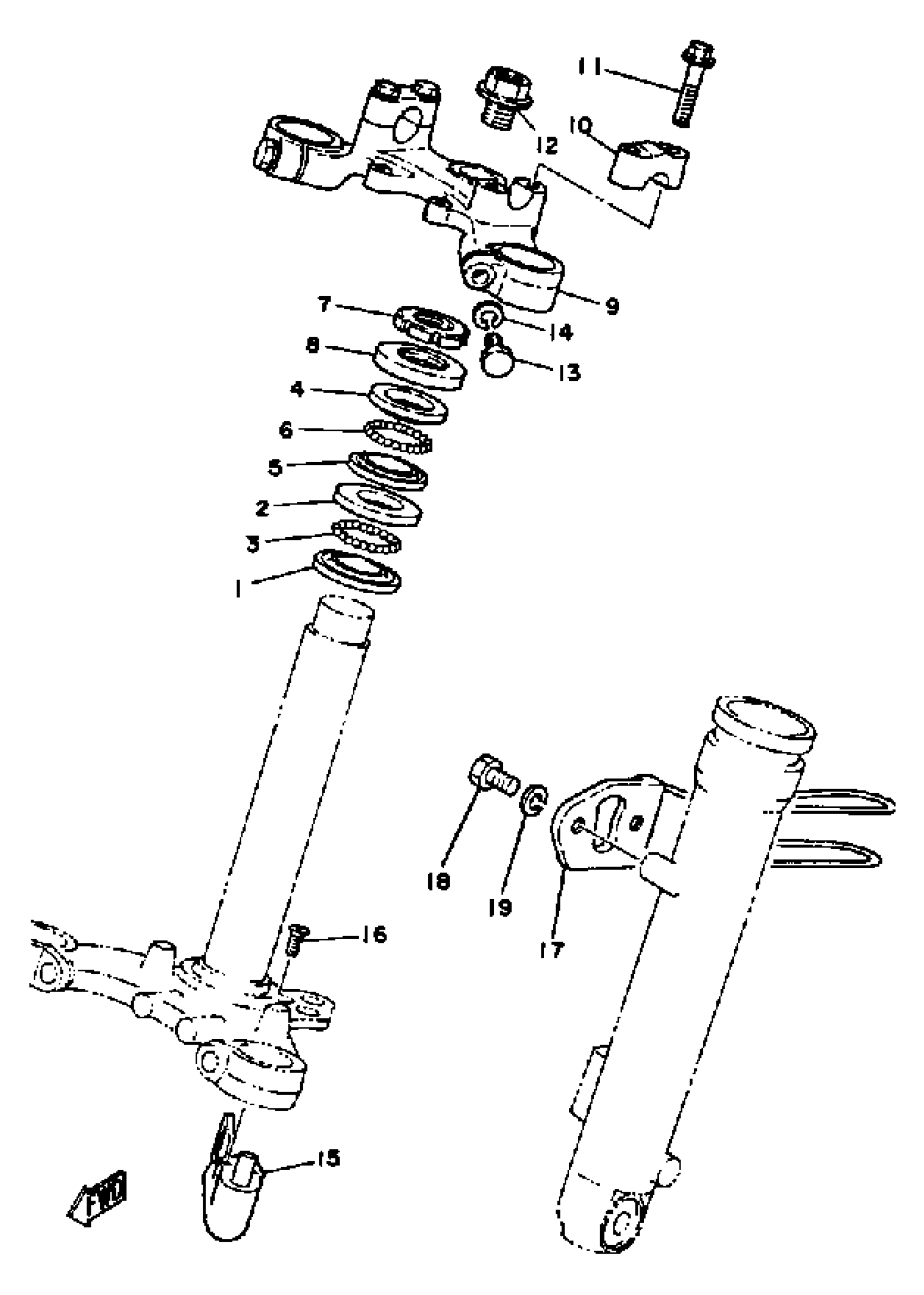

Yamaha DT100H (DT100H) 1981 STEERING Diagram

RACE, BALL 1

RACE, BALL 2

BALL

RACE, BALL 1

RACE, BALL 2

BALL

NUT

COVER, BALL RACE

CROWN, HANDLE

HOLDER, HANDLE UPPER

BOLT, FLANGE

BOLT, WASHER BASED HEAD (10V)

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

STEERING LOCK ASSEMBLY

SCREW, COUNTERSUNK

SCREW(617)

HOLDER, CABLE 1

BOLT (661)

WASHER, SPRING
