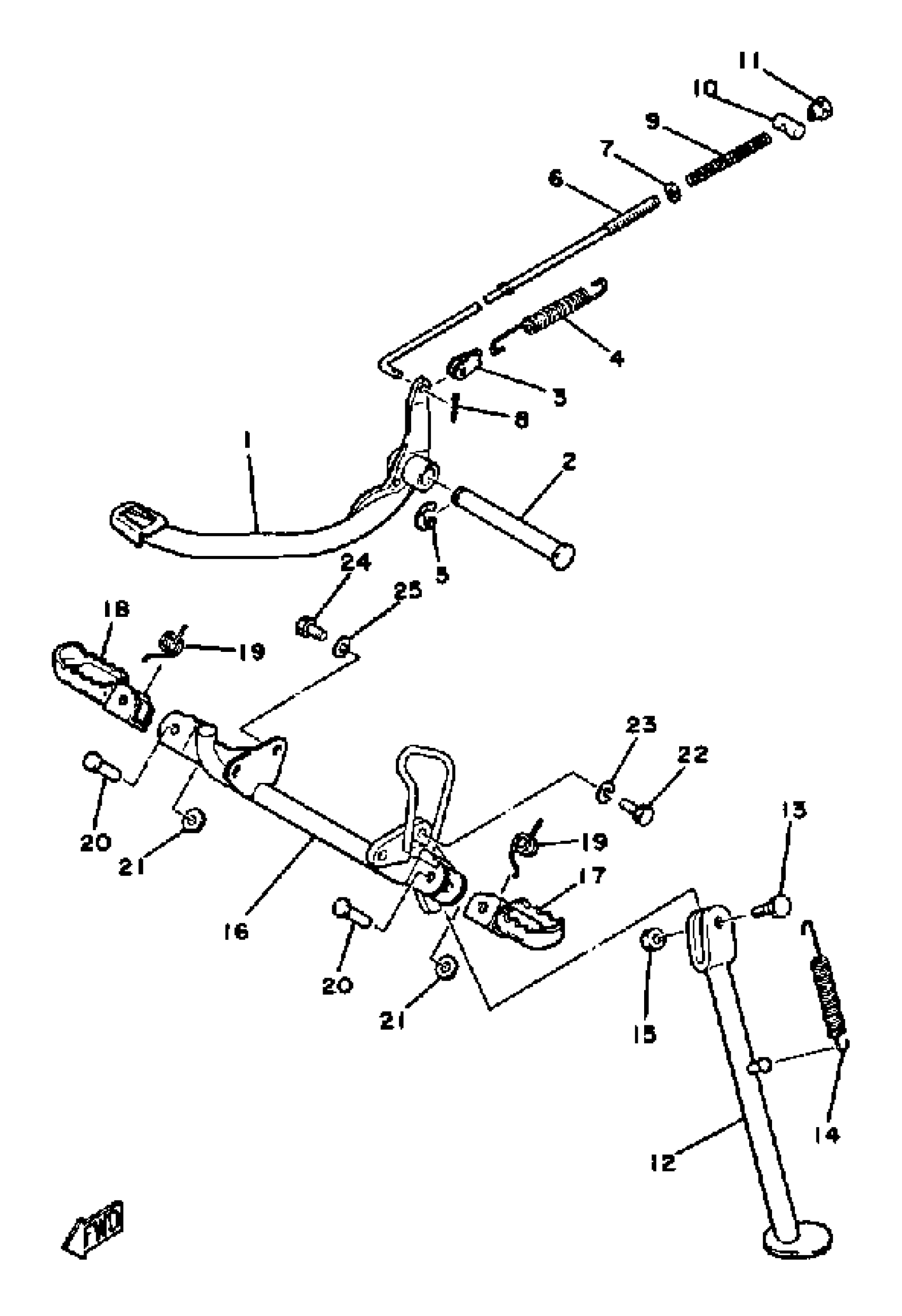

Yamaha DT100H (DT100H) 1981 STAND - FOOTREST Diagram

#

Description
Price

1

PEDAL,BRAKE

538-27211-01-00

Unavailable

2

SHAFT, BRAKE PEDAL

2A3-27212-00-00

Unavailable

2

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

3

HOOK

1T9-27254-00-00

Unavailable

4

SPRING, TENSION

90506-20157-00

Unavailable

5

CIRCLIP (122)

93430-12008-00

$8.49

6

ROD, BRAKE

1T9-27231-00-00

Unavailable

7

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING, (180-27236-00)

90501-10245-00

$8.49

10

PIN 1562723700

90249-12008-00

$8.49

11

NUT (25K)

90179-06411-00

$8.49

12

STAND, SIDE

367-27311-02-R4

Unavailable

12

STAND, SIDE

3A3-27311-00-R4

Unavailable

13

BOLT 137273170000

90109-08031-00

$8.49

14

SPRING TENSION 146273160000

90506-29052-00

Unavailable

15

. NUT

95380-08700-00

Unavailable

16

FOOTREST

1T9-27451-02-R4

Unavailable

16

FOOTREST

(3A3-27451-00-R4)

Unavailable

17

FOOTREST 1

22W-27411-01-90

Unavailable

18

FOOTREST 2

22W-27421-01-90

Unavailable

19

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

20

PIN (214-27418-00)

90243-08006-00

Unavailable

22

BOLT, HEXAGON

97013-08020-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

24

BOLT, HEXAGON

97013-08016-00

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
