Description

Price

1

SINGLE SEAT ASSEMBLY

1T9-W2471-01-00

Unavailable

2

. COVER, SINGLE SEAT

1T9-24711-00-00

Unavailable

3

PAD, SEAT

1L9-24741-00-00

$9.99

4

HINGE, SEAT

538-24726-00-00

Unavailable

5

BRACKET, SEAT

278-24728-00-00

Unavailable

6

BOLT (583)

90101-06304-00

$7.49

7

STOPPER

1T9-24768-00-00

Unavailable

8

BOLT (661)

97013-06012-00

$5.60

9

WASHER, SPRING

92995-06100-00

Unavailable

10

PIN

1K8-24774-00-00

Unavailable

11

SEAT LOCK ASSEMBLY

526-24705-00-00

Unavailable

12

BOLT (661)

97013-06012-00

$5.60

13

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

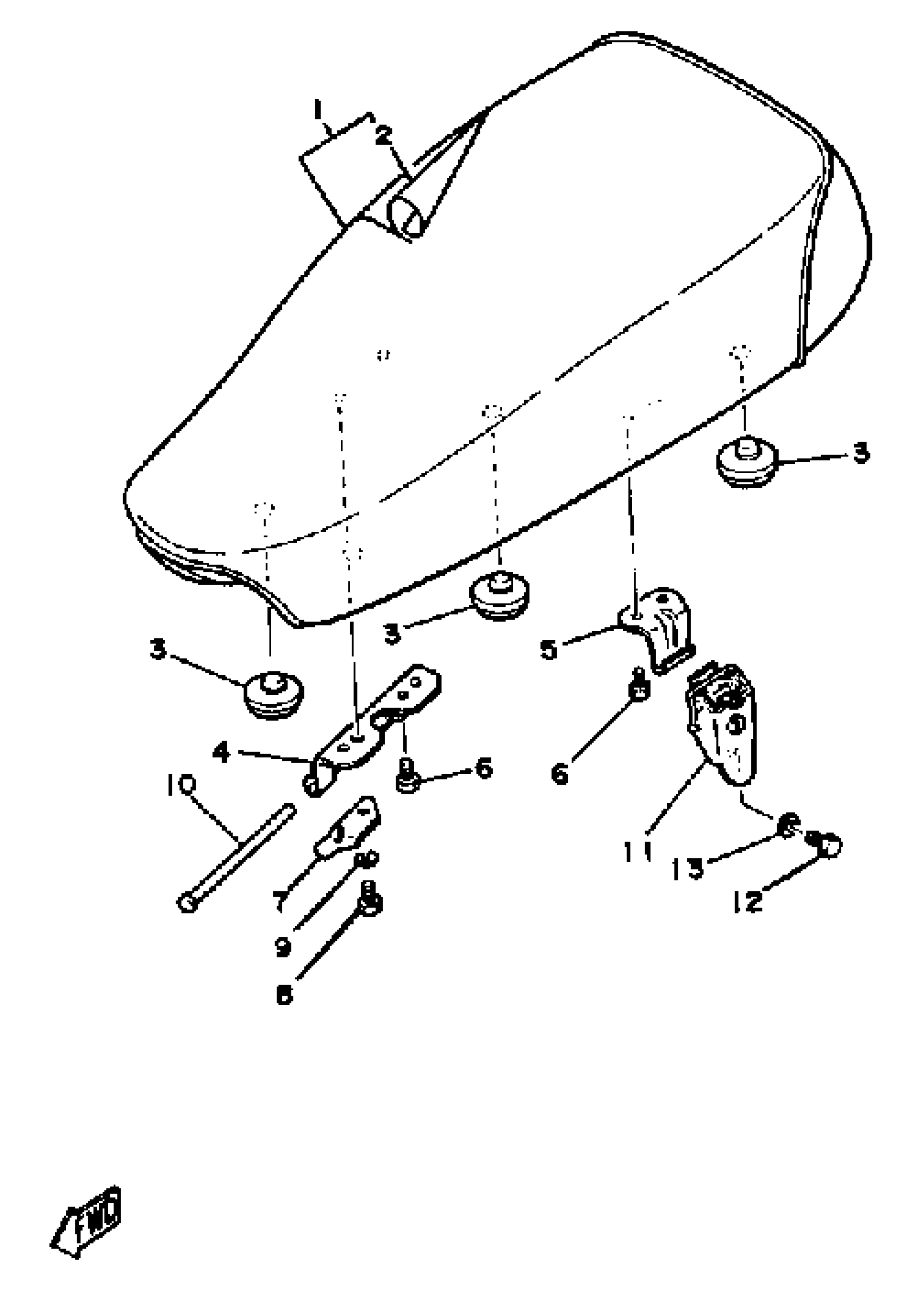

Yamaha DT100H (DT100H) 1981 SEAT Diagram

SINGLE SEAT ASSEMBLY

. COVER, SINGLE SEAT

PAD, SEAT

HINGE, SEAT

BRACKET, SEAT

BOLT (583)

STOPPER

BOLT (661)

WASHER, SPRING

PIN

SEAT LOCK ASSEMBLY

BOLT (661)

WASHER, PLATE (4H7)
