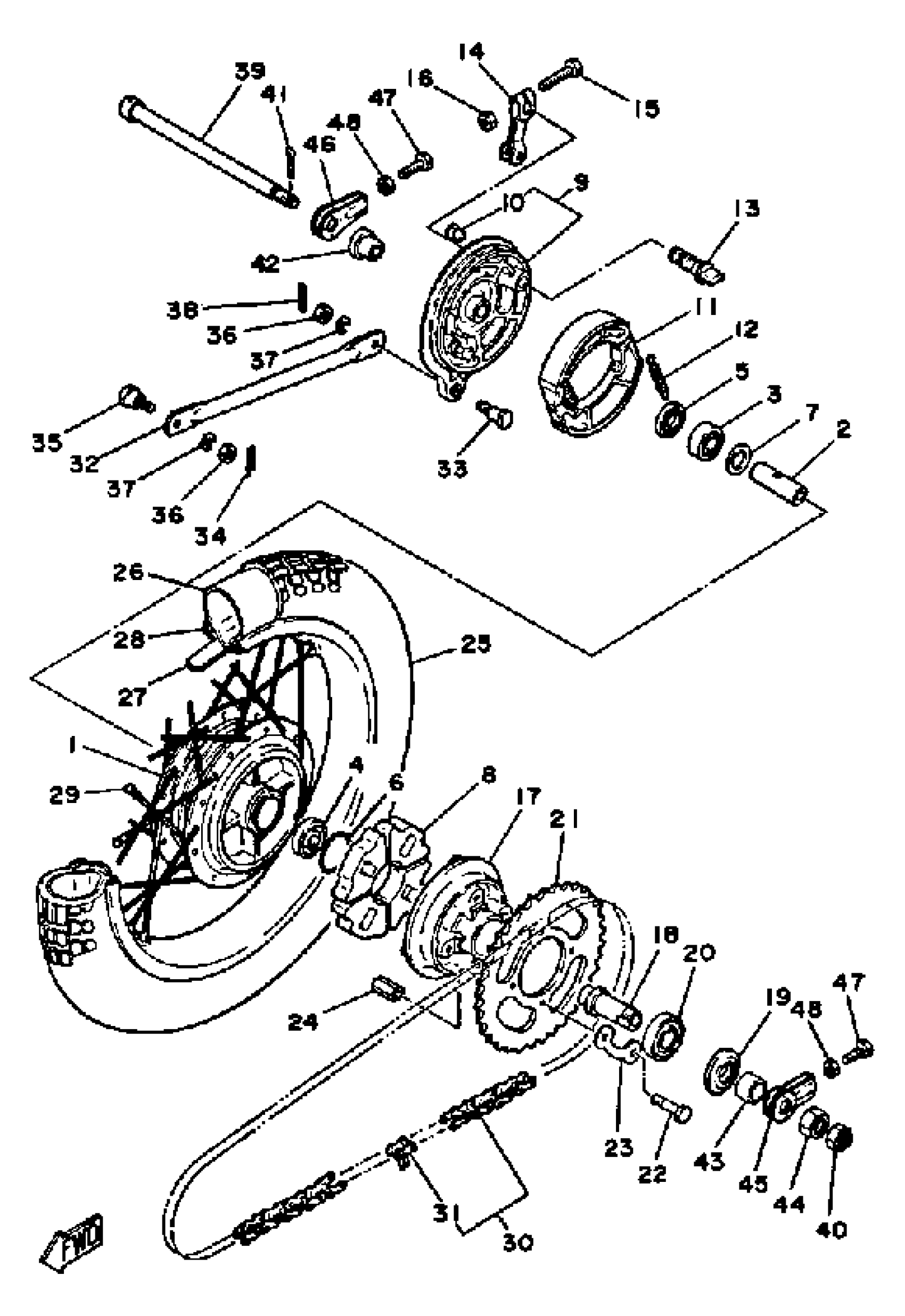

Yamaha DT100H (DT100H) 1981 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

99999-02213-00

Unavailable

2

SPACER

90560-12145-00

$20.99

3

BEARING

93306-30102-00

$39.99

4

BRG.

93306-30101-00

$36.99

5

OIL SEAL (21X37X7-102)

93104-21016-00

$14.99

6

O-RING (102)

93210-41041-00

$7.49

7

FLANGE, SPACER

109-25315-00-00

$7.99

8

DAMPER, CLUTCH

304-25364-01-00

$27.99

9

BRAKE SHOE PLT ASSEMBLY

355-25026-00-98

Unavailable

10

GROMMET (397)

90480-10068-00

$8.49

11

BRAKE SHOE KIT

2JL-W253E-20-00

Unavailable

11

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

12

SPRING, TENSION

90506-15260-00

$8.49

12

SPRING, TENSION (566).

90506-16150-00

$9.49

13

CAMSHAFT

4GL-25351-00-00

$68.99

14

LEVER, CAMSHAFT

5DV-25355-00-00

Unavailable

15

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

CLUTCH, HUB

296-25366-01-33

Unavailable

18

SHAFT, SPROCKET

167-25387-00-00

Unavailable

19

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

20

BEARING(3BN)

93306-00438-00

Unavailable

21

SPROCKET, DRIVEN (45T)

283-25445-11-00

Unavailable

22

BOLT (482)

90109-08361-00

Unavailable

23

WASHER

4AW-25412-00-00

Unavailable

24

NUT(3KX)

90179-08639-00

Unavailable

25

TIRE (3.00-16)

94130-16368-00

Unavailable

26

UNAVAILABLE IN PRICE BOOK

94230-10675-00

Unavailable

27

BAND, RIM

94330-16058-00

Unavailable

28

RIM

94416-16002-00

Unavailable

29

SPOKE SET

538-25304-10-00

Unavailable

30

CHAIN, DRIVE

9Y580-52101-00

Unavailable

31

. JOINT, CHAIN

94600-03001-00

Unavailable

32

BAR, TENSION

1T9-25371-00-00

Unavailable

33

BOLT 1022537300

90109-08183-00

Unavailable

34

CLIP (156-83525-00)

90468-10050-00

Unavailable

35

BOLT (183-25378-00)

90109-08368-00

Unavailable

36

. NUT

95380-08700-00

Unavailable

37

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

38

PIN, COTTER

91490-20025-00

Unavailable

39

AXLE, WHEEL

390-25381-01-00

Unavailable

40

NUT 3532518200

90171-10004-00

Unavailable

41

PIN, COTTER

91490-20025-00

Unavailable

42

COLLAR 195253830000

90387-12102-00

Unavailable

43

COLLAR 167253860000

90387-18144-00

Unavailable

44

NUT, HEXAGON

90170-18165-00

Unavailable

45

PULLER, CHAIN(L.H)

241-25388-00-00

Unavailable

46

PULLER, CHAIN

241-25389-10-00

Unavailable

47

BOLT HEXAGON 167253790000

90101-06016-00

Unavailable

48

NUT, HEXAGON

95380-06600-00

Unavailable
