1981 Yamaha DT100H (DT100H) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha DT100H (DT100H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

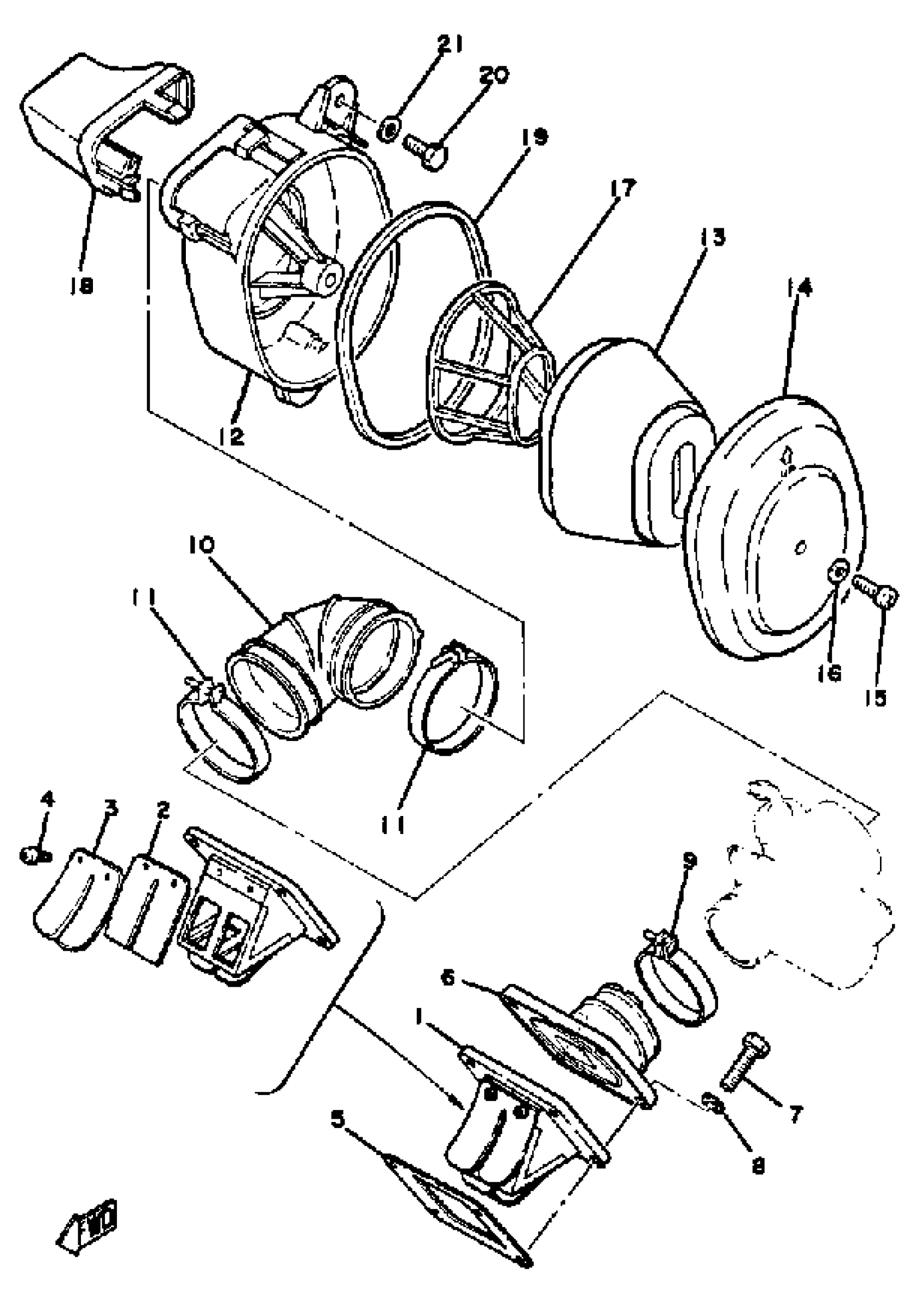

1981 Yamaha DT100H (DT100H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

53V-13610-00-00

1
Out of stock

2

VALVE, REED

314-13613-01-00

—

$32.53

In stock

3

. STOPPER, REED VALVE

10X-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET, VALVE SEAT

87A-13621-00-00

1

$7.97

In stock

6

JOINT, CARBURETOR

560-13565-00-00

—

$67.77

In stock

7

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

8

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

9

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

10

JOINT, AIR CLEANER 1

3A3-14453-02-00

1

$13.32

In stock

11

CLAMP HOSE 304144550000

90460-51059-00

1

$14.64

In stock

12

CASE, AIR CLEANER 1

1T9-14411-00-00

1
Out of stock

13

ELEMENT ASY

1T9-14450-01-00

1
Out of stock

14

CAP, CLEANER CASE 1

1T9-14412-00-00

1
Out of stock

15

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

16

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

17

GUIDE

1T9-14458-00-00

1
Out of stock

18

DUCT

1T9-14437-00-00

1
Out of stock

19

SEAL

51Y-14462-00-00

—

$11.61

In stock

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

21

WASHER, PLATE

90201-06380-00

—

$0.57

In stock
