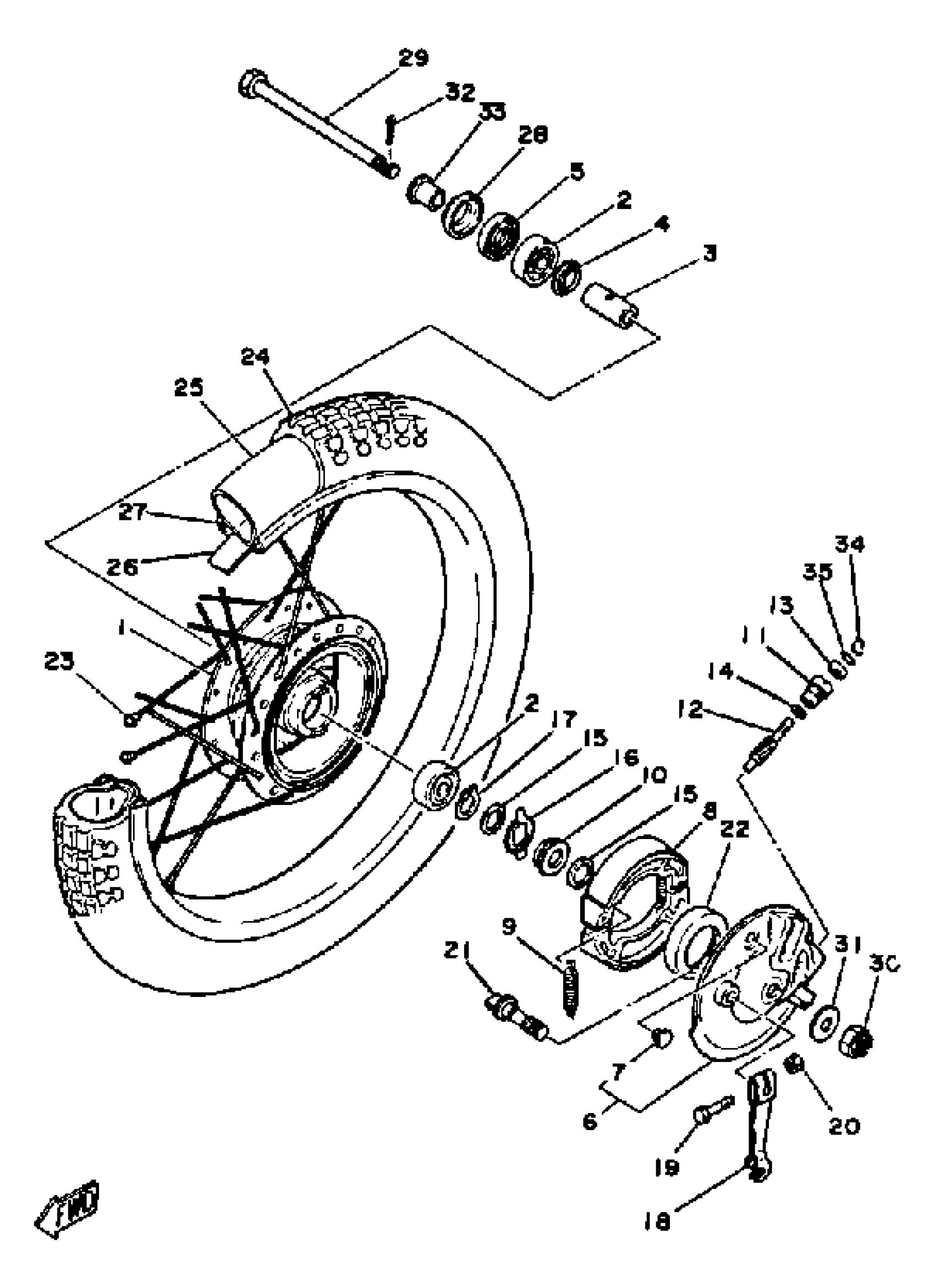

Yamaha DT100H (DT100H) 1981 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

248-25111-00-98

Unavailable

2

BEARING

93306-30102-00

$39.99

3

SPACER

90560-12138-00

Unavailable

4

FLANGE, SPACER

109-25315-00-00

$7.99

5

OIL SEAL (18X37X8-109)

93102-18008-00

$25.99

6

BRAKE SHOE PLT ASSEMBLY

1T9-25016-01-98

Unavailable

7

GROMMET (397)

90480-10068-00

$8.49

8

BRAKE SHOE KIT

2JL-W253E-20-00

Unavailable

8

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

9

SPRING, TENSION

90506-15260-00

$8.49

9

SPRING, TENSION (566).

90506-16150-00

$9.49

10

GEAR, DRIVE

1T9-25135-00-00

Unavailable

11

BUSHING

109-25136-00-00

$10.99

12

GEAR, METER

1T9-25138-00-00

Unavailable

13

OIL SEAL (7X14X4-136)

93104-07003-00

$8.49

14

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

15

WASHER, PLATE 1832514700

90201-20269-00

Unavailable

16

CLUTCH, METER

183-25149-00-00

Unavailable

17

CIRCLIP(1AR)

99009-20400-00

Unavailable

18

LEVER, CAMSHAFT 1

5H0-25155-00-00

Unavailable

19

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

CAMSHAFT

4GL-25351-00-00

Unavailable

22

SEAL,OIL

93105-47007-00

Unavailable

23

SPOKE SET, FRONT

276-25104-40-00

Unavailable

24

TIRE (2.50-18)

94125-18369-00

Unavailable

25

TUBE (5H5)

94225-18194-00

Unavailable

26

BAND, RIM

94325-18059-00

Unavailable

27

RIM (1.40-18)

94414-18545-00

Unavailable

28

COVER HUB DUST

481-25118-01-00

Unavailable

29

SHAFT, WHEEL (462)

90102-12015-00

Unavailable

30

NUT,CASTLE

90171-12058-00

Unavailable

31

WASHER, PLATE

90201-12047-00

Unavailable

32

PIN, COTTER

91490-30030-00

Unavailable

33

COLLAR

90387-12616-00

Unavailable

34

RING, STOP

102-25137-00-00

Unavailable

35

O-RING (26H)

93210-14579-00

Unavailable
