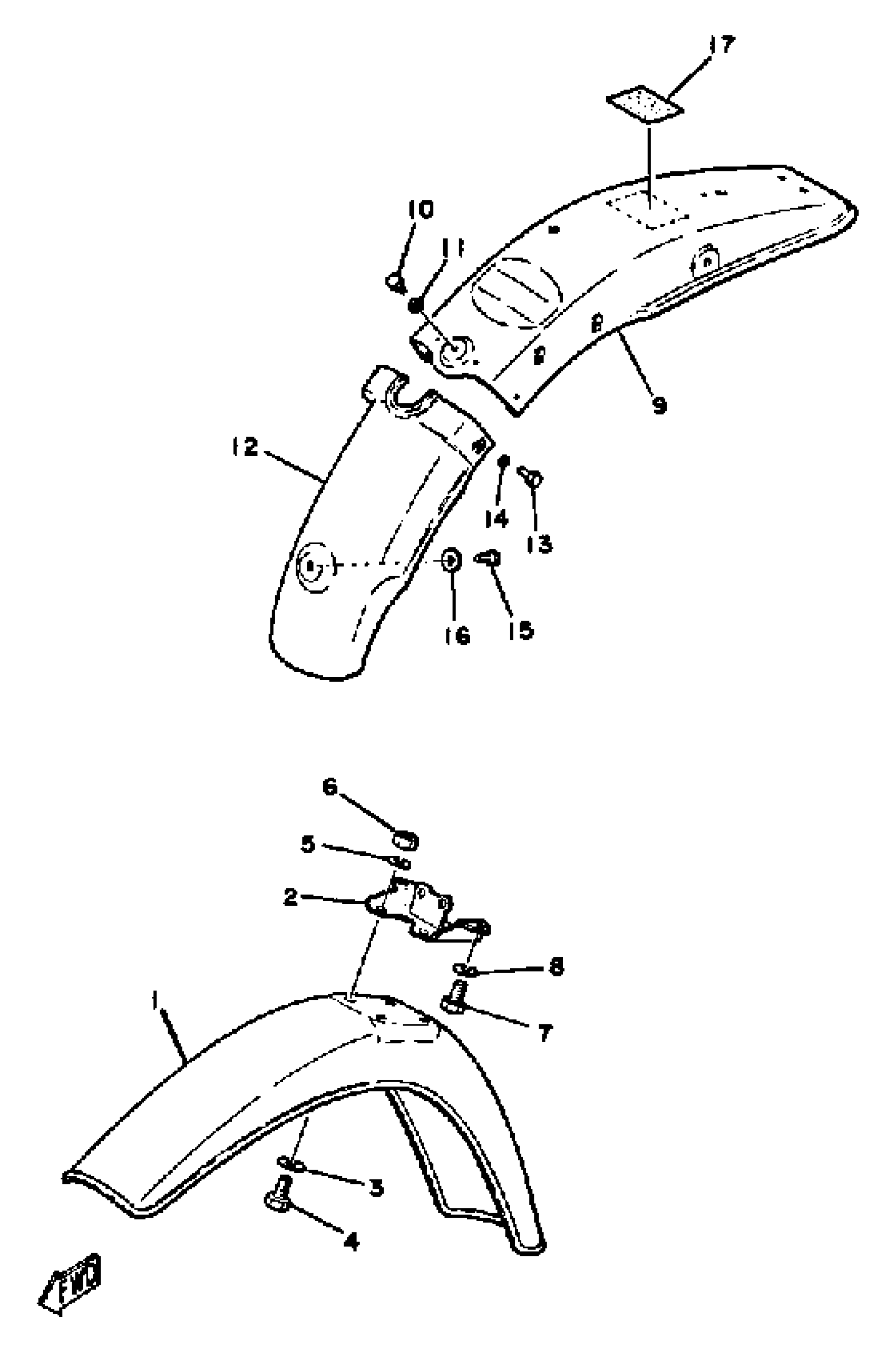

Yamaha DT100H (DT100H) 1981 FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

2E7-21511-00-00

Unavailable

2

STAY, FENDER 1

1T9-21513-00-00

Unavailable

3

WASHER, PLATE

90201-06380-00

$0.60

4

BOLT(8CP)

97017-06014-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

BOLT(3JP)

97017-06010-00

$3.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

FENDER, REAR

1T9-21611-00-36

Unavailable

10

BOLT(8CP)

97017-06014-00

$8.49

11

WASHER, PLATE

90201-06380-00

$0.60

12

FLAP

1T9-21621-00-00

Unavailable

13

BOLT (661)

97013-06012-00

$5.60

14

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

15

BOLT (661)

97013-06012-00

$5.60

16

WASHER, PLATE

90201-06380-00

$0.60

17

PLATE, SPEC

(3A3-21683-10-00)

Unavailable

17

PLATE, SPEC

(3A3-21683-30-00)

Unavailable
