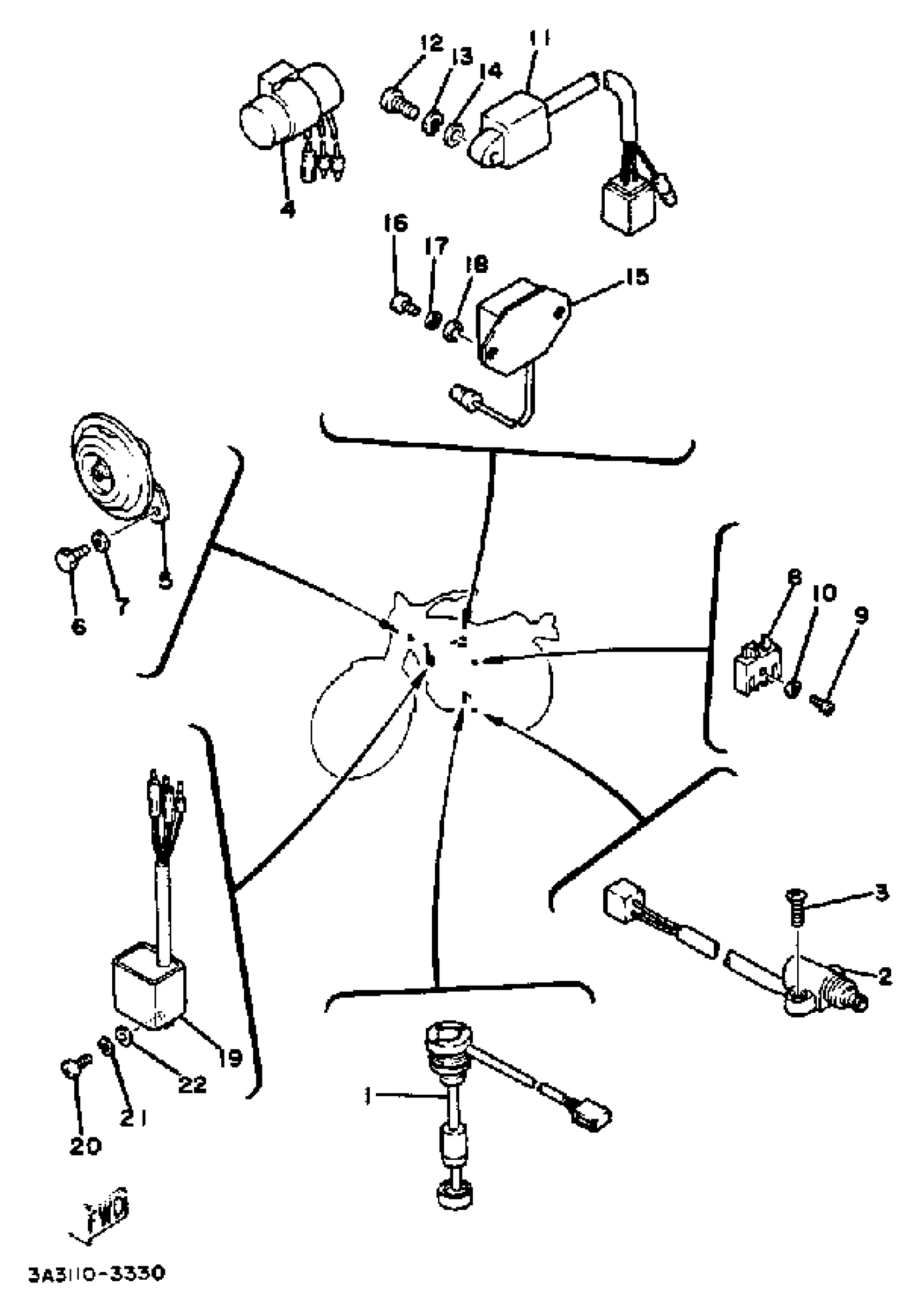

Yamaha DT100H (DT100H) 1981 ELECTRICAL 2 DT100K Diagram

#

Description
Price

1

OIL LVL GAUGE ASSEMBLY

1T9-85720-01-00

Unavailable

2

SWITCH, SIDE STAND

3A3-82566-10-00

Unavailable

3

SCREW, FLAT

98707-05016-00

$7.99

4

FLASHER RELAY ASSEMBLY

542-83350-60-00

Unavailable

5

HORN

2A7-83371-10-00

Unavailable

6

BOLT (661)

97013-06012-00

$5.60

7

WASHER, SPRING

92995-06100-00

Unavailable

8

RECTIFIER ASSY

353-81970-M2-00

Unavailable

9

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

CDI UNIT ASSEMBLY

3A3-85540-20-00

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

15

VOLTAGE REG ASY

443-81910-62-00

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

19

CONTROL UNIT ASSEMBLY

4Y3-85590-M0-00

Unavailable

20

SCREW PAN HEAD

98580-06020-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLATE (4H7)

90201-061A5-00

$7.49
