- DT100H (DT100H) 1981
ELECTRICAL 1 DT100J

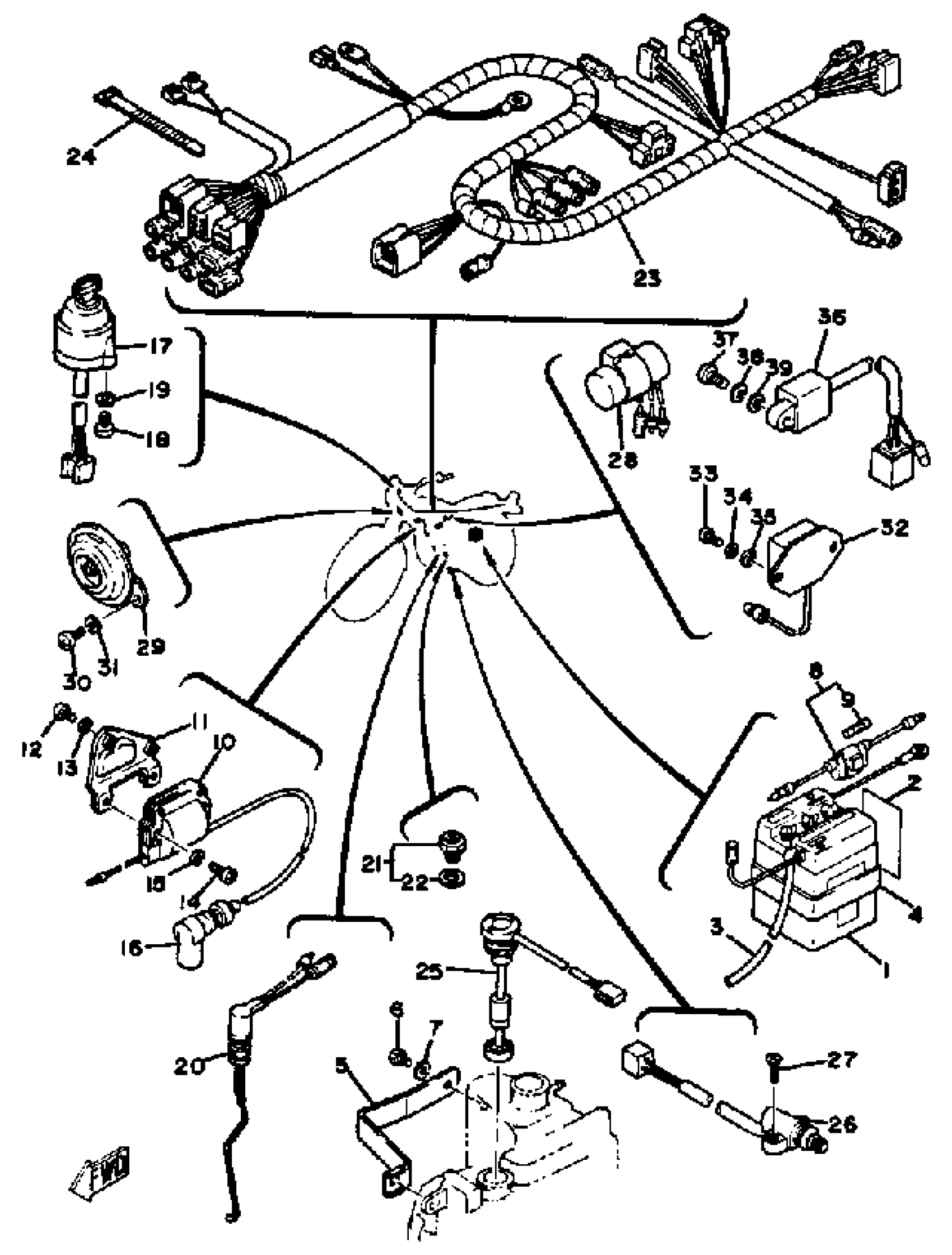

Yamaha DT100H (DT100H) 1981 ELECTRICAL 1 DT100J Diagram
#
1
6N4-2A-2 GS BATTERY
6N4-2A200-00-00
Unavailable
2
LABEL, BATTERY
40A-82141-G0-00
Unavailable
3
HOSE
90445-08172-00
Unavailable
4
BAND, BATTERY
214-82124-00-00
Unavailable
5
PLATE, BATT FITTING
(1T9-82136-00-00)
Unavailable
7
WASHER, SPRING
92995-06100-00
Unavailable
10
IGNITION COIL ASSY
355-82310-40-00
Unavailable
11
BRACKET, IGNITION COIL
336-82316-01-00
Unavailable
12
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
13
WASHER, SPRING
92995-06100-00
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
16
PLUG CAP ASSY
8DG-82370-00-00
Unavailable
16
PLUG CAP ASSY
7KA-82370-00-00
Unavailable
17
MAIN SWITCH ASSY
53C-82510-01-00
Unavailable
18
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
19
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
20
STOP SWITCH ASSEMBLY
2F5-82530-02-00
Unavailable
21
NEUTRAL SWITCH ASSY
136-82540-03-00
Unavailable
22
WASHER, PLATE
90201-12790-00
Unavailable
23
WIRE HARNESS ASSEMBLY
(3A3-82590-51-00)
Unavailable
24
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
25
OIL LVL GAUGE ASSEMBLY
1T9-85720-01-00
Unavailable
26
SWITCH, SIDE STAND
3J8-82566-01-00
Unavailable
27
SCREW, FLAT
98707-05016-00
Unavailable
28
FLASHER RELAY ASSEMBLY
542-83350-60-00
Unavailable
29
HORN
2A7-83371-10-00
Unavailable
31
WASHER, SPRING
92995-06100-00
Unavailable
32
VOLTAGE REG ASY
443-81910-62-00
Unavailable
33
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
34
WASHER, SPRING
92995-06100-00
Unavailable
35
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
36
CONTROL UNIT ASSEMBLY
3Y1-85590-M0-00
Unavailable
37
SCREW PAN HEAD
98580-06020-00
Unavailable
38
WASHER, SPRING
92995-06100-00
Unavailable
39
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
