Description

Price

1

COVER, CRANKCASE L

1X0-15411-00-00

Unavailable

2

COVER, CRANKCASE R

401-15421-00-00

Unavailable

3

GASKET 1

3UL-15455-00-00

$22.99

4

SCREW PAN HEAD

98580-06020-00

$8.49

5

COVER, CRANKCASE 3

401-15431-00-00

Unavailable

6

GASKET, CRANKCASE COVER 1

3UL-15451-00-00

$20.99

7

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

8

SCREW PAN HEAD

98580-06040-00

$8.49

9

SCREW PAN HEAD

98580-06545-00

$5.60

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

PLUG, OIL LEVEL

18G-15362-00-00

$25.99

12

O-RING

93210-21190-00

$7.49

13

COVER, OIL PUMP

1X0-15416-00-00

Unavailable

14

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

15

GASKET, OIL PUMP COVER 1

3UL-15456-01-00

$11.99

16

CLAMP

90461-10016-00

Unavailable

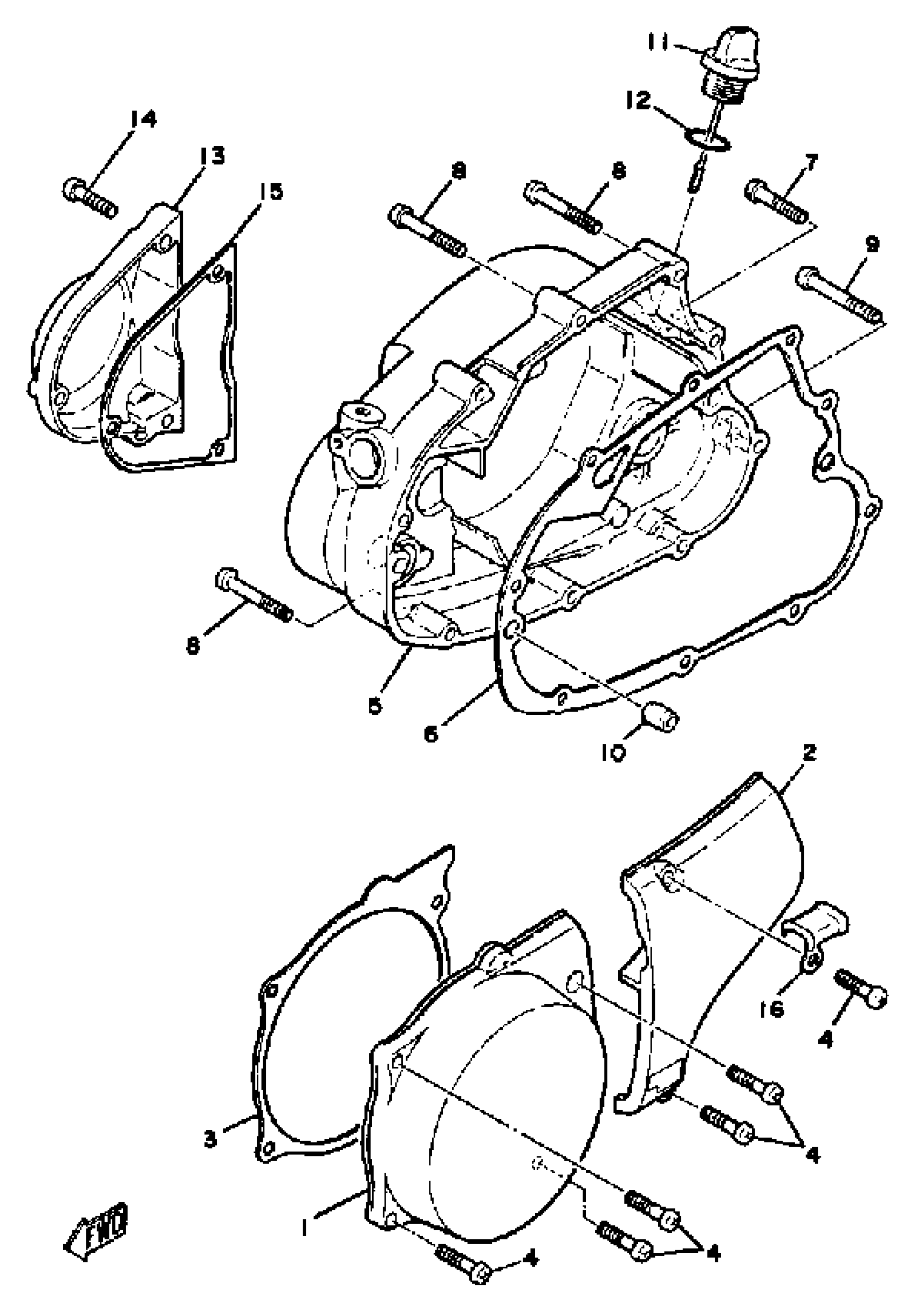

Yamaha DT100H (DT100H) 1981 CRANKCASE COVER Diagram

COVER, CRANKCASE L

COVER, CRANKCASE R

GASKET 1

SCREW PAN HEAD

COVER, CRANKCASE 3

GASKET, CRANKCASE COVER 1

SCREW, PAN HEAD(6E0)

SCREW PAN HEAD

SCREW PAN HEAD

PIN, DOWEL(3VD)

PLUG, OIL LEVEL

O-RING

COVER, OIL PUMP

SCREW, PAN HEAD (76T)

GASKET, OIL PUMP COVER 1

CLAMP
