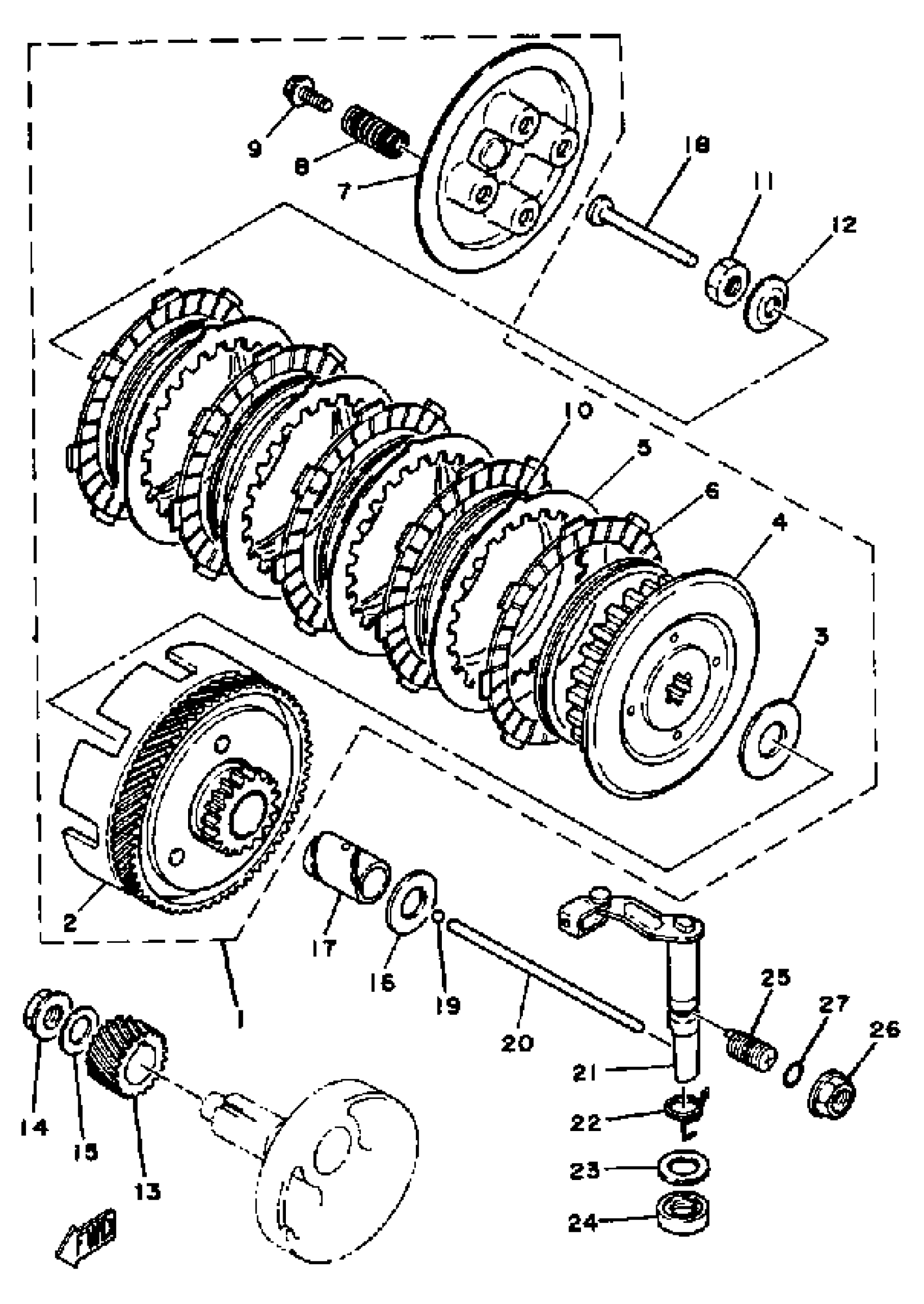

Yamaha DT100H (DT100H) 1981 CLUTCH Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(1V1-16301-10-00)

Unavailable

2

. PRIMARY DRIVEN GEAR COMP (74T)

1V1-16150-10-00

Unavailable

3

PLATE, THRUST

131-16154-00-00

Unavailable

4

BOSS, CLUTCH

1V1-16371-02-00

Unavailable

5

PLATE, CLUTCH 1

1V1-16324-10-00

$22.99

6

PLATE, FRICTION

598-16321-01-00

$17.49

7

PLATE, PRESSURE

598-16351-00-00

Unavailable

8

SPRING COMPRESSION132163330000

90501-20125-00

$8.49

9

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

10

RING, CUSHION

1V1-16367-01-00

$8.99

11

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

12

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

13

GEAR, PRIMARY DRIVE (19T)

336-16111-00-00

Unavailable

14

NUT(1EE)

90179-12659-00

$8.49

15

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

16

WASHER, PLATE (1N1)

90201-17558-00

Unavailable

17

SPACER (525)

90560-17147-00

Unavailable

18

ROD,PUSH (1)

137-16356-00-00

Unavailable

19

BALL

93503-16003-00

Unavailable

20

ROD, PUSH 2

1X0-16357-00-00

Unavailable

21

PUSH LEVER ASSEMBLY

525-16380-00-00

Unavailable

22

SPRING, TORSION

90508-14132-00

Unavailable

23

WASHER PLATE 150251530000

90201-14217-00

Unavailable

24

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

25

SCREW

90149-12097-00

Unavailable

26

NUT

90179-12197-00

Unavailable

27

O-RING (611)

93210-10096-00

Unavailable
