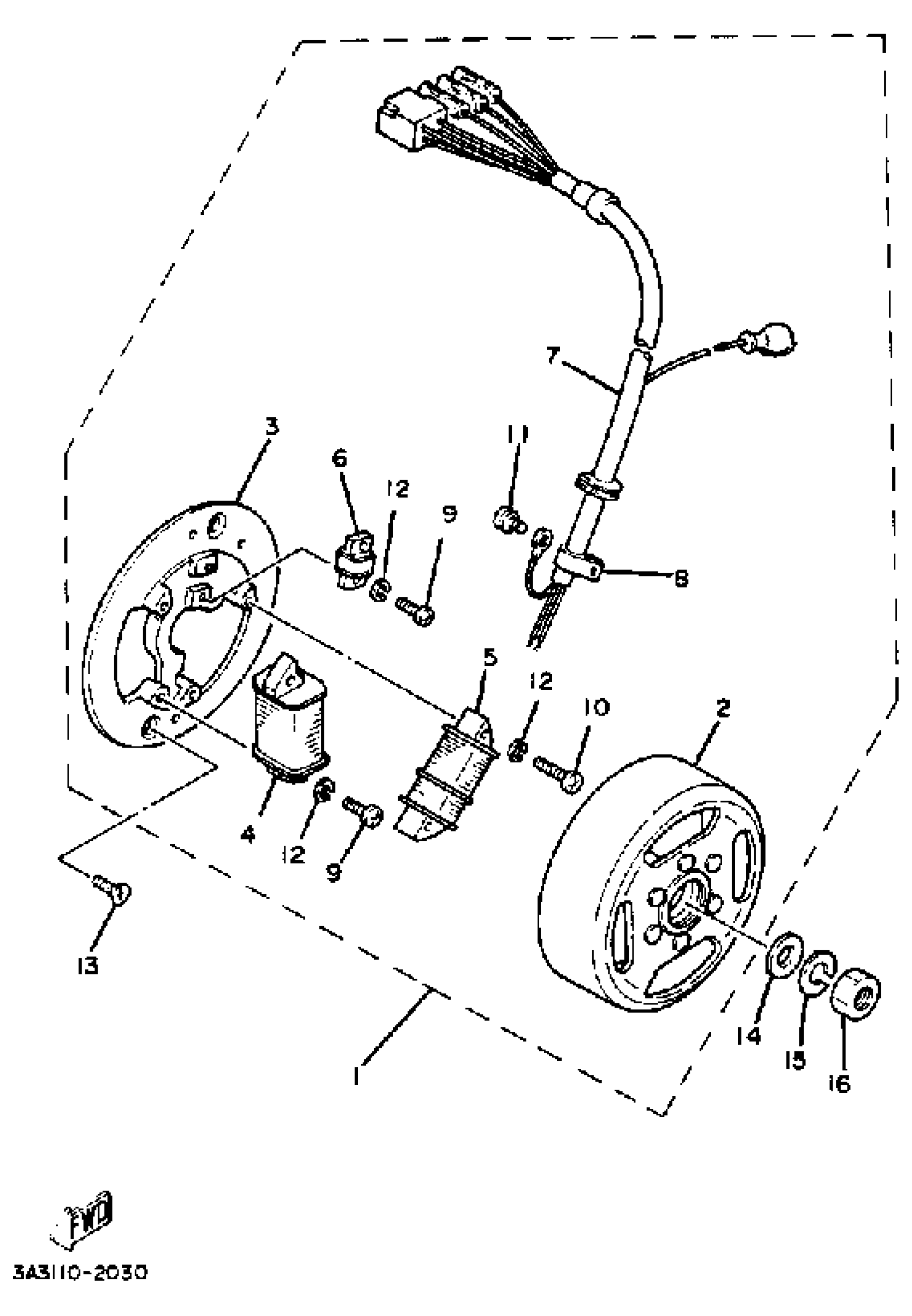

Yamaha DT100H (DT100H) 1981 C - D - I - MAGNETO DT100K Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(3A3-85500-20-00)

Unavailable

2

. ROTOR ASSEMBLY

3A3-85550-20-00

Unavailable

3

BASE, MAGNETO

(3A3-85509-20-00)

Unavailable

4

. COIL SOURCE 2

3A3-85512-20-00

Unavailable

5

. COIL, LIGHTING 1

3A3-85513-20-00

Unavailable

6

. COIL, PULSER

3A3-85580-20-00

Unavailable

7

LEAD WIRE ASSEMBLY

(3A3-85515-20-00)

Unavailable

8

CLAMP, LEAD

104-81328-20-00

$6.99

9

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

10

SCREW, PAN HEAD

98517-04025-00

Unavailable

11

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

14

WASHER (492)

90201-12535-00

Unavailable

15

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

16

NUT, HEXAGON 98801-12200

90170-12175-00

Unavailable
