1978 Yamaha DT100E (DT100E) Shift CAM Fork Diagram

← All diagrams

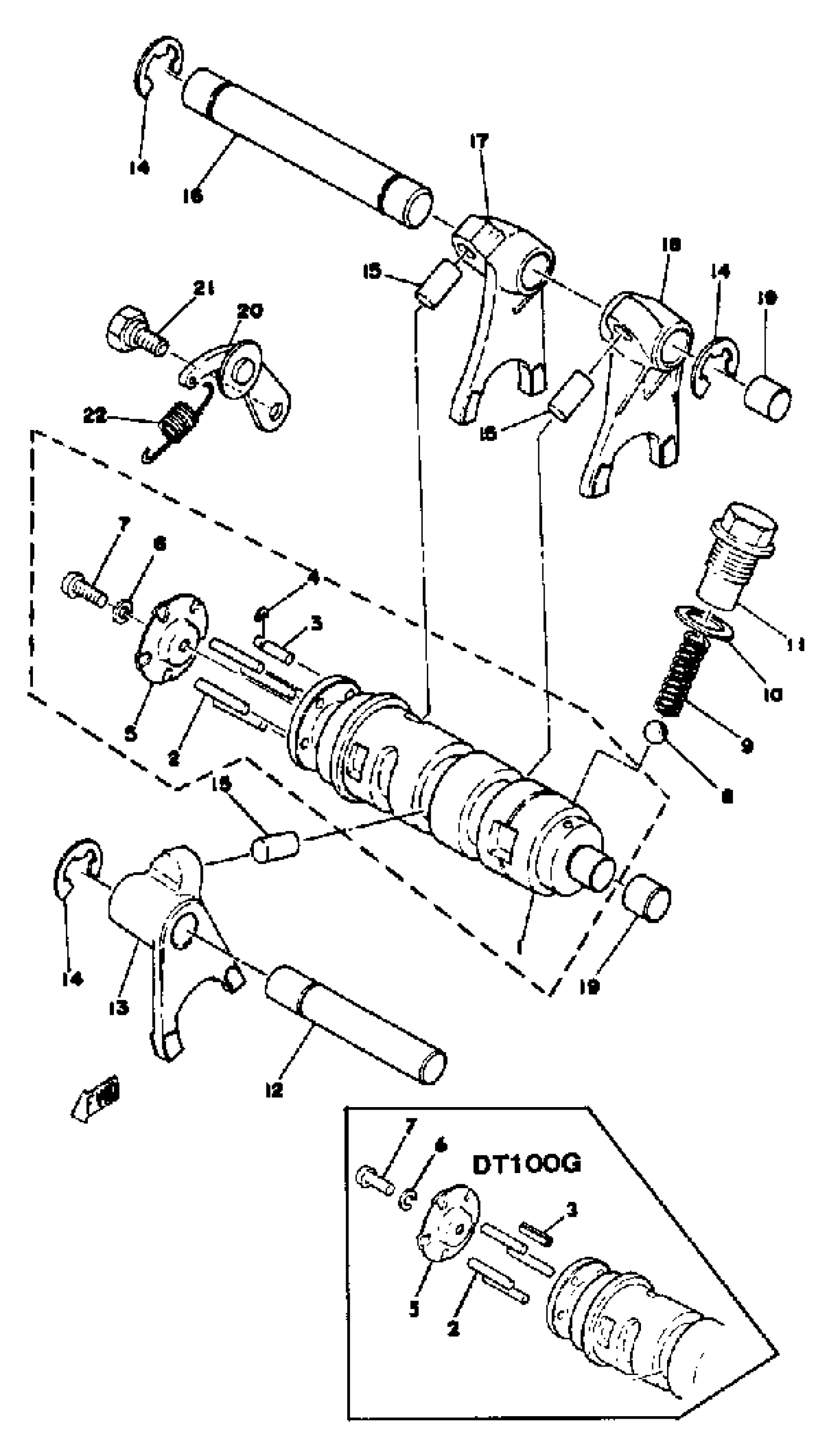

Find the part on the Shift CAM Fork diagram for your 1978 Yamaha DT100E (DT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha DT100E (DT100E) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

401-18540-00-00

—

$75.55

In stock

2

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

3

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

1
Out of stock

3

PIN, SPRING (648)

91690-40016-00

1

$6.68

In stock

4

. CIRCLIP, E-TYPE

93430-03014-00

1
Out of stock

5

PLATE, SIDE

164-18561-00-00

1

$5.42

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

8

BALL

93505-16006-00

1

$2.22

In stock

9

SPRING, COMPRESION

90501-12750-00

1
Out of stock

10

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

11

BOLT

90109-14385-00

1

$13.66

In stock

12

BAR, SHIF FRK GDE 1

(248-18531-00-00)

1
Out of stock

13

FORK, SHIFT 2

463-18512-00-00

1
Out of stock

14

CIRCLIP

99006-10600-00

1

$6.91

In stock

15

PIN, STRAIGHT

90250-08017-00

1
Out of stock

16

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

1
Out of stock

17

FORK, SHIFT 3

463-18513-00-00

—

$34.14

In stock

18

FORK, SHIFT 1

463-18511-00-00

—

$34.26

In stock

19

PLUG, BLIND

214-15385-00-00

—

$6.72

In stock

20

STOPPER LEVER ASSY

132-18140-01-00

—

$14.20

In stock

21

BOLT

90109-06239-00

—

$5.77

In stock

22

SPRING, TENSION (260)

90506-09112-00

—
Out of stock
