1978 Yamaha DT100E (DT100E) Rear Wheel Diagram

← All diagrams

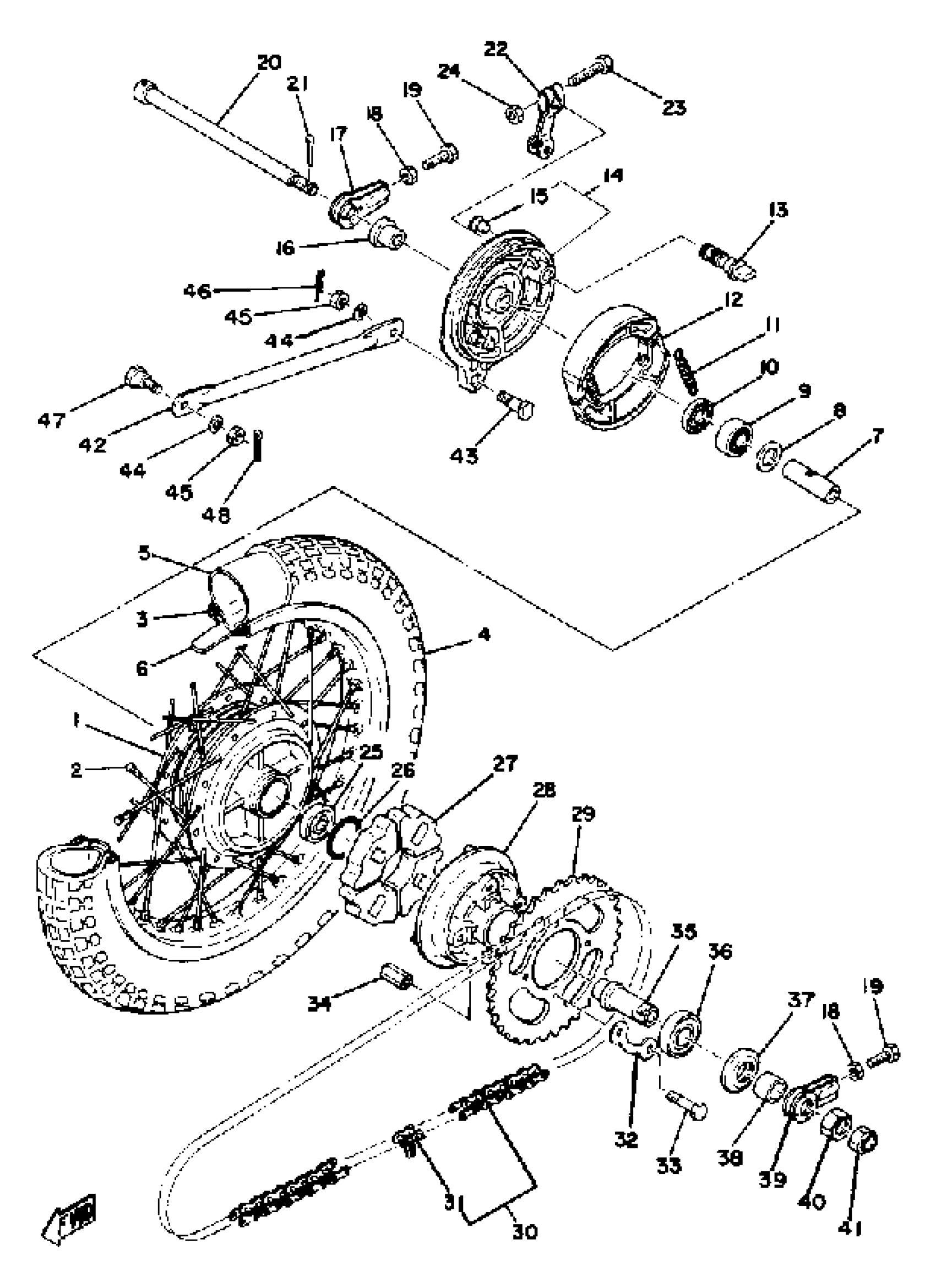

Find the part on the Rear Wheel diagram for your 1978 Yamaha DT100E (DT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha DT100E (DT100E) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

99999-02213-00

1
Out of stock

2

SPOKE SET

538-25304-10-00

1
Out of stock

3

RIM

94416-16002-00

1
Out of stock

4

TIRE (3.00-16)

94130-16368-00

1
Out of stock

5

TUBE (3.00-16)

94230-16075-00

1
Out of stock

6

BAND, RIM

94330-16058-00

1

$18.18

In stock

7

SPACER

90560-12145-00

1

$17.22

In stock

8

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

9

BEARING

93306-30102-00

1
Out of stock

10

OIL SEAL (21X37X7-102)

93104-21016-00

1
Out of stock

11

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

12

BRAKE SHOE KIT

2JL-W253E-20-00

—

$25.53

In stock

13

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

14

BRAKE SHOE PLT ASSEMBLY

355-25026-00-98

1
Out of stock

15

GROMMET (397)

90480-10068-00

1

$6.77

In stock

16

COLLAR 195253830000

90387-12102-00

—
Out of stock

17

PULLER, CHAIN

241-25389-10-00

—

$32.18

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

BOLT HEXAGON 167253790000

90101-06016-00

—

$6.37

In stock

20

AXLE, WHEEL

390-25381-01-00

1
Out of stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock

22

LEVER, CAMSHAFT

5DV-25355-00-00

1
Out of stock

23

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

24

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

BRG.

93306-30101-00

—

$31.58

In stock

26

O-RING (102)

93210-41041-00

—

$5.86

In stock

27

DAMPER, CLUTCH

304-25364-01-00

—

$21.12

In stock

28

CLUTCH, HUB

296-25366-01-33

—
Out of stock

29

SPROCKET, DRVN 44T (1T9-25444-10-33)

283-25444-10-00

1
Out of stock

29

SPROCKET, DRIVEN (45T)

283-25445-11-00

1
Out of stock

29

SPROCKET,DRVN47T

4U5-25447-10-00

1
Out of stock

30

CHAIN, DRIVE

9Y580-52101-00

—

$20.31

In stock

31

. JOINT, CHAIN

94600-03001-00

1
Out of stock

32

WASHER

4AW-25412-00-00

—

$4.24

In stock

33

BOLT(1AJ)

90101-08672-00

—

$2.69

In stock

34

NUT(3KX)

90179-08639-00

—

$7.95

In stock

35

SHAFT, SPROCKET

167-25387-00-00

—

$47.57

In stock

36

BEARING(3BN)

93306-00438-00

—

$32.22

In stock

37

OIL SEAL (30X42X8-102)

93106-30004-00

—

$10.98

In stock

38

COLLAR 167253860000

90387-18144-00

—
Out of stock

39

PULLER, CHAIN(L.H)

241-25388-00-00

—

$30.49

In stock

40

NUT, HEXAGON

90170-18165-00

—

$7.82

In stock

41

NUT 3532518200

90171-10004-00

—

$5.32

In stock

42

BAR, TENSION

1T9-25371-00-00

1
Out of stock

43

BOLT 1022537300

90109-08183-00

—

$6.18

In stock

44

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

45

. NUT

95380-08700-00

1

$3.07

In stock

46

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

47

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

48

PIN, COTTER

91490-20025-00

—

$1.31

In stock
