1978 Yamaha DT100E (DT100E) Handlebar Cable DT100F Diagram

← All diagrams

Find the part on the Handlebar Cable DT100F diagram for your 1978 Yamaha DT100E (DT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

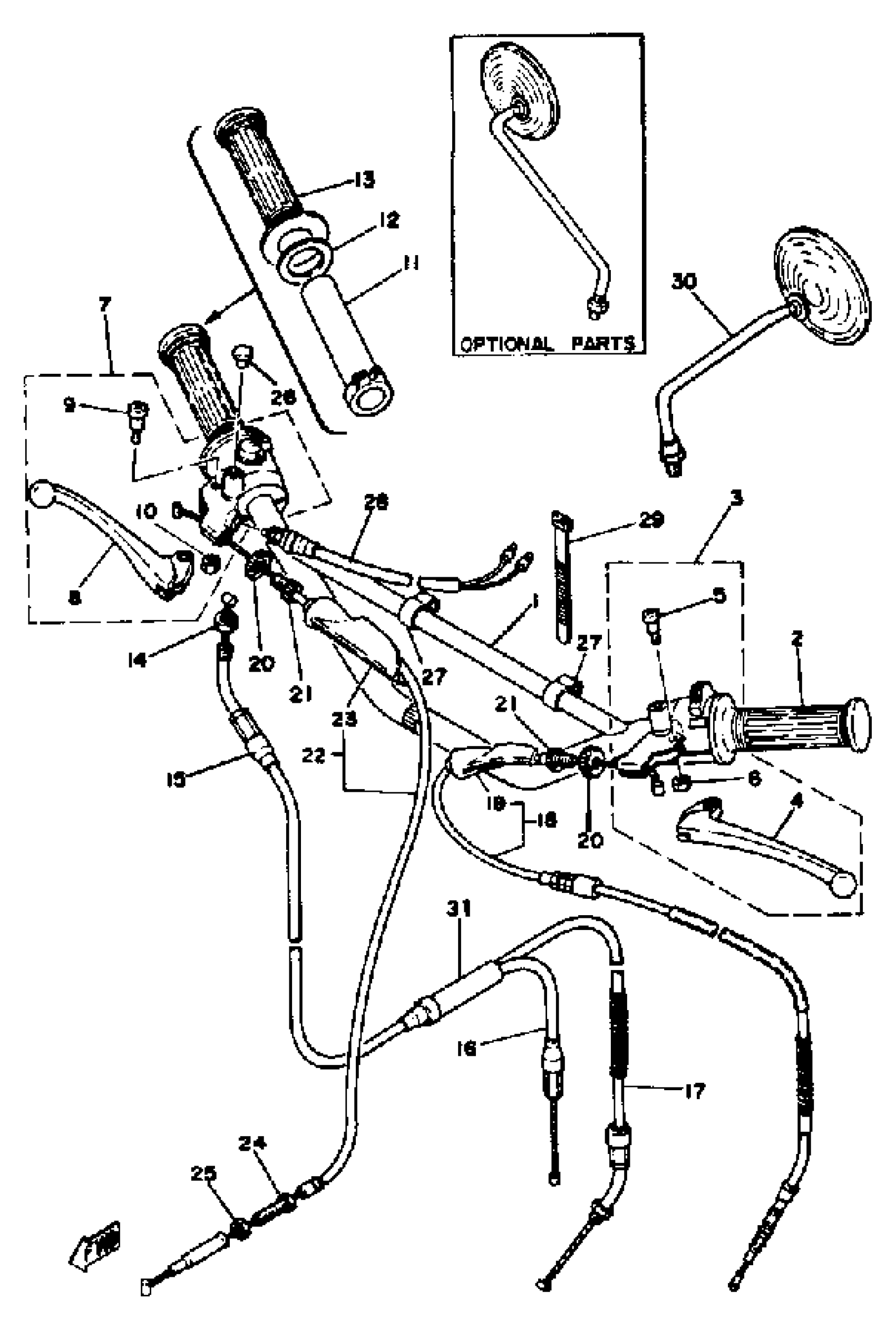

1978 Yamaha DT100E (DT100E) Handlebar Cable DT100F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3M1-26111-01-00

1
Out of stock

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

3

LEVER HOLDER ASSEMBLY 1 (1T9-82910-00)

1T9-82910-01-00

1
Out of stock

4

LEVER (L.H)

137-83912-02-38

—
Out of stock

5

SCREW (1E2)

90149-05120-00

1
Out of stock

6

NUT, U

95617-05100-00

1
Out of stock

7

LEVER HOLDER ASSEMBLY 2

1T9-82920-X0-00

1
Out of stock

8

LEVER (R.H)

2N3-83922-00-00

1
Out of stock

9

SCREW (1E2)

90149-05120-00

1
Out of stock

10

NUT, U

95617-05100-00

1
Out of stock

11

TUBE, GUIDE

1V1-26243-00-00

1
Out of stock

12

WASHER, PLATE(1UU)

90201-261L1-00

1
Out of stock

13

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

14

NUT,HEXAGON

90170-10044-00

1
Out of stock

15

CABLE, THROTTLE 1

2F5-26311-00-00

1
Out of stock

16

CABLE, THROTTLE 2

1T9-26312-00-00

1
Out of stock

17

CABLE,PUMP

1T9-26321-10-00

1
Out of stock

18

CABLE, CLUTCH

1T9-26335-00-00

1
Out of stock

19

COVER, LEVER

498-26372-00-00

—
Out of stock

20

NUT

90179-08030-00

—
Out of stock

21

BOLT

90123-08002-00

—
Out of stock

22

CABLE, BRAKE

3M1-26341-00-00

1
Out of stock

23

COVER, LEVER

498-26372-00-00

—
Out of stock

24

BOLT (109-26345-00)

90123-06011-00

—
Out of stock

25

NUT (109-26344-00)

90179-06143-00

—
Out of stock

26

PLUG (17J)

90338-07124-00

—
Out of stock

27

CLIP (1E6)

90468-15064-00

—
Out of stock

28

FRONT STOP SWITCH ASSY

395-83980-09-00

—
Out of stock

29

BAND, SWITCH CORD

437-83936-01-00

—
Out of stock

30

3MIRROR ASSEMBLY LH

266-26290-10-00

1
Out of stock

31

CONNECTOR, CABLE

214-26261-01-00

—
Out of stock

31

MIRROR ASSEMBLY RH

395-26290-00-00

1
Out of stock
