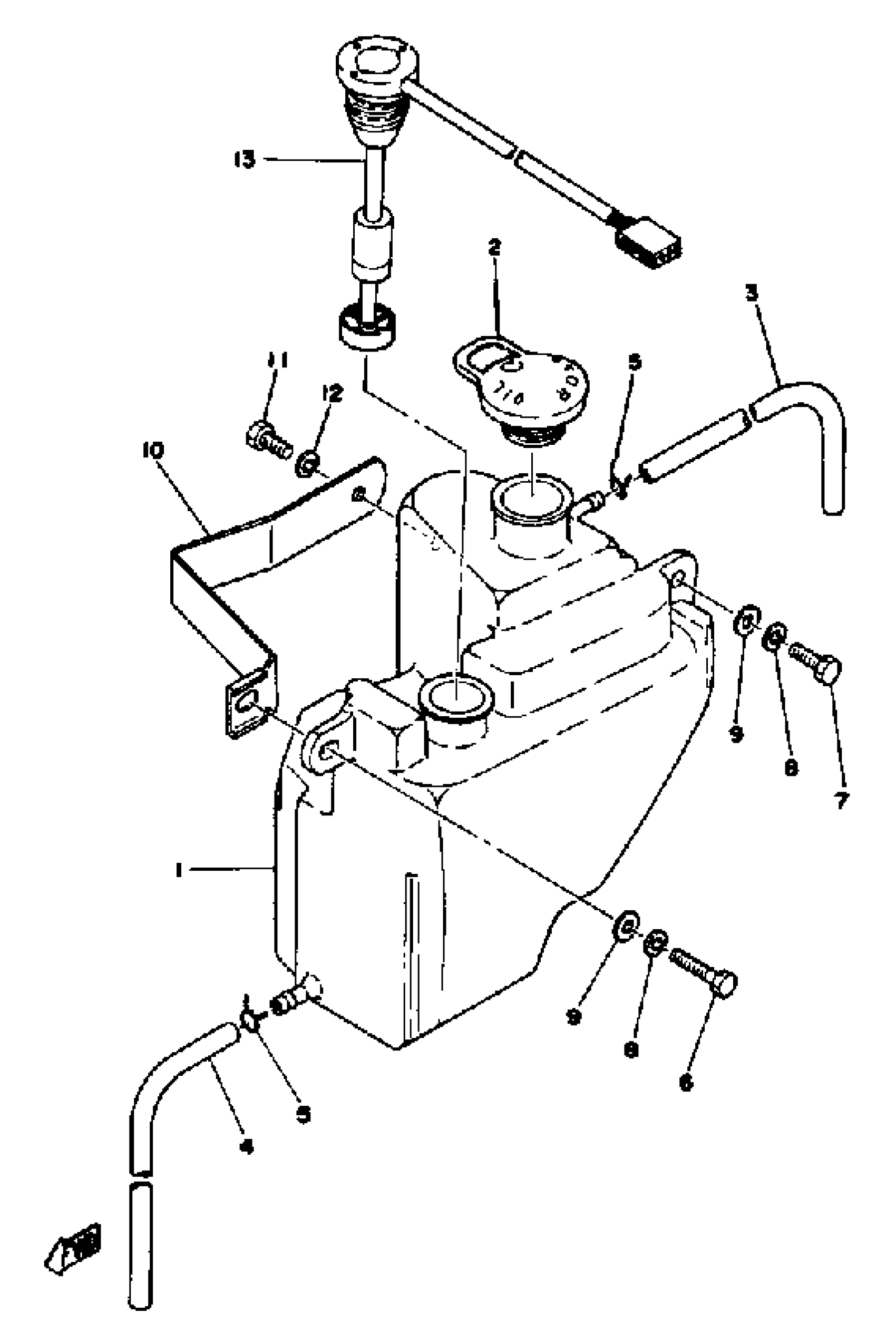

Yamaha DT100E (DT100E) 1978 OIL TANK DT100E E011001~F Diagram

#

Description
Price

1

TANK, OIL

1T9-21751-00-00

Unavailable

2

BODY, CAP

1T9-21771-01-00

$7.99

3

HOSE (L1500)

90445-090F6-00

$31.99

4

HOSE (L420)

90445-092K1-00

$12.49

5

CLIP 101235600

90467-08003-00

$10.49

6

BOLT, HEXAGON

97017-06025-00

$4.24

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLATE

90201-06380-00

$0.60

10

PLATE, BATT FITTING

(1T9-82136-00-00)

Unavailable

11

BOLT (661)

97013-06012-00

$5.60

12

WASHER, SPRING

92995-06100-00

Unavailable

13

OIL LVL GAUGE ASSEMBLY

1T9-85720-01-00

Unavailable
