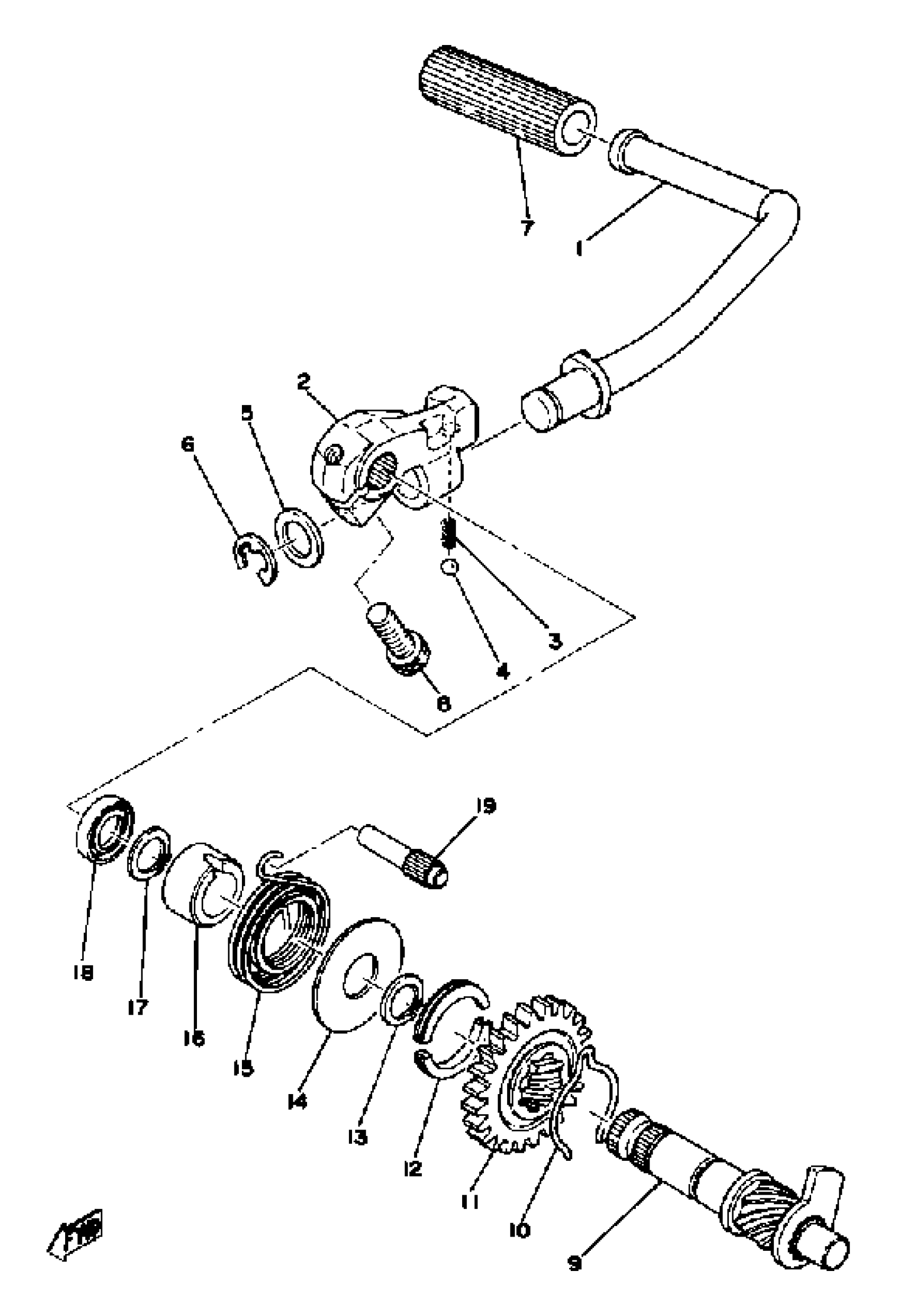

Yamaha DT100E (DT100E) 1978 KICK STARTER DT100E E011001~F Diagram

UNAVAILABLE IN PRICE BOOK

1T9-15611-00-00

Unavailable

BOSS, KICK CRANK

1T9-15621-00-00

Unavailable

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

BALL (12R)

93507-32031-00

$4.73

WASHER PLATE 278156130000

90201-15234-00

$8.49

CIRCLIP

99006-10600-00

$9.49

COVER, KICK LEVER

156-15618-01-00

$7.99

BOLT, SOCKET

91317-08025-00

$8.49

KICK AXLE ASY

403-15660-02-00

Unavailable

CLIP 315156870000

90468-26048-00

$8.49

GEAR, KICK

315-15641-00-00

Unavailable

HOLDER, KICK GEAR

248-15654-00-00

$8.99

CIRCLIP(4A6)

99009-30400-00

$8.49

COVER, SPRING

401-15676-00-00

$7.99

SPRING TORSION 401156650000

90508-26041-00

$7.49

SPACER

401-15666-00-00

Unavailable

CIRCLIP(1EY)

99009-17400-00

Unavailable

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

STOPPER, KICK SPRING

257-15668-00-00

Unavailable
