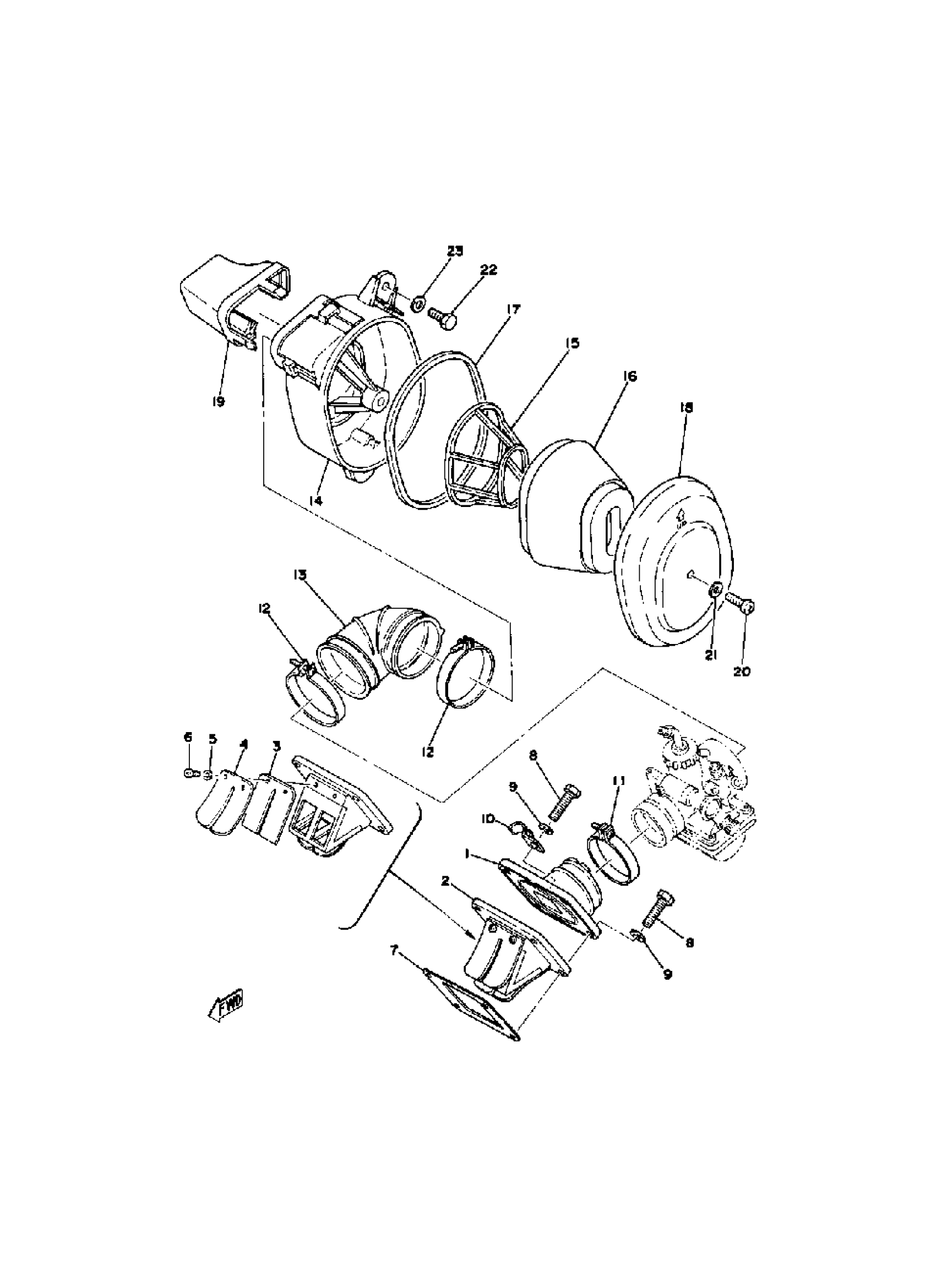

Yamaha DT100E (DT100E) 1978 INTAKE Diagram

JOINT, CARBURETOR

560-13565-00-00

Unavailable

REED VALVE ASSY

53V-13610-00-00

$172.99

REED VALVE ASSY

345-13610-20-00

$228.99

VALVE, REED

314-13613-01-00

Unavailable

REED, VALVE

345-13613-70-00

$72.99

. STOPPER, REED VALVE

10X-13616-00-00

Unavailable

. STOPPER, REED VALVE

345-13616-70-00

Unavailable

WASHER, SPRING

92990-03100-00

$8.49

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

GASKET, VALVE SEAT

87A-13621-00-00

$8.99

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER, PLAIN (646)

92990-06600-00

$2.80

UNAVAILABLE IN PRICE BOOK

90462-20029-00

Unavailable

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

CLAMP HOSE 304144550000

90460-51059-00

$16.99

JOINT, AIR CLNR 1

1T9-14453-00-00

Unavailable

JOINT, AIR CLEANER 1

3A3-14453-02-00

Unavailable

CASE, AIR CLEANER 1

1T9-14411-00-00

Unavailable

GUIDE

1T9-14458-00-00

Unavailable

ELEMENT ASY

1T9-14450-01-00

Unavailable

SEAL

51Y-14462-00-00

Unavailable

CAP, CLEANER CASE 1

1T9-14412-00-00

Unavailable

DUCT

1T9-14437-00-00

Unavailable

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

WASHER, PLATE

90201-06380-00

Unavailable
