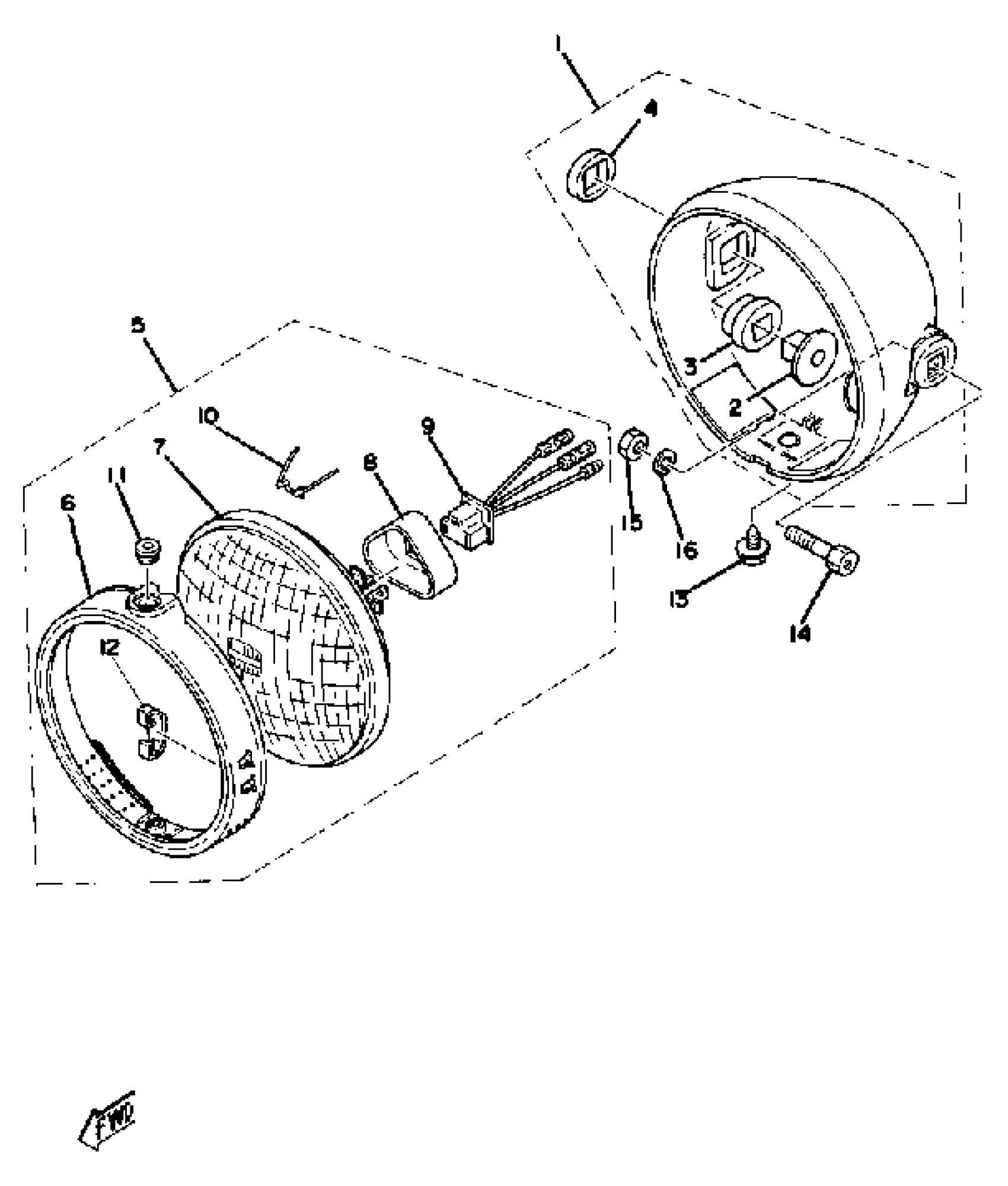

Yamaha DT100E (DT100E) 1978 HEADLIGHT DT100E E011001~F Diagram

BODY ASSEMBLY, HEADLIGHT (1M1-84130-60-98)

1M1-84130-60-00

Unavailable

COLLAR, BODY FITTING

498-84145-60-00

$6.99

DAMPER, HEAD LAMP A

498-84163-60-00

$7.99

DAMPER

1M1-84164-60-00

$25.99

TOOL

UNA-VAILA-BL-EI

Unavailable

RING, RETAINING

3J0-84195-60-00

Unavailable

. LENS ASSEMBLY

498-84120-61-00

Unavailable

. COVER, SOCKET

341-84397-61-00

Unavailable

SOCKET

371-84312-60-00

Unavailable

SPRING, REFLECTOR SET

1M1-84124-60-00

$8.99

COLLAR

1M1-84133-60-00

Unavailable

. SPACER

498-84128-60-00

Unavailable

BOLT, HEXAGON

1M1-84137-60-00

$6.99

BOLT

90109-08448-00

Unavailable

NUT(6L2)

95333-08600-00

$2.49

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
