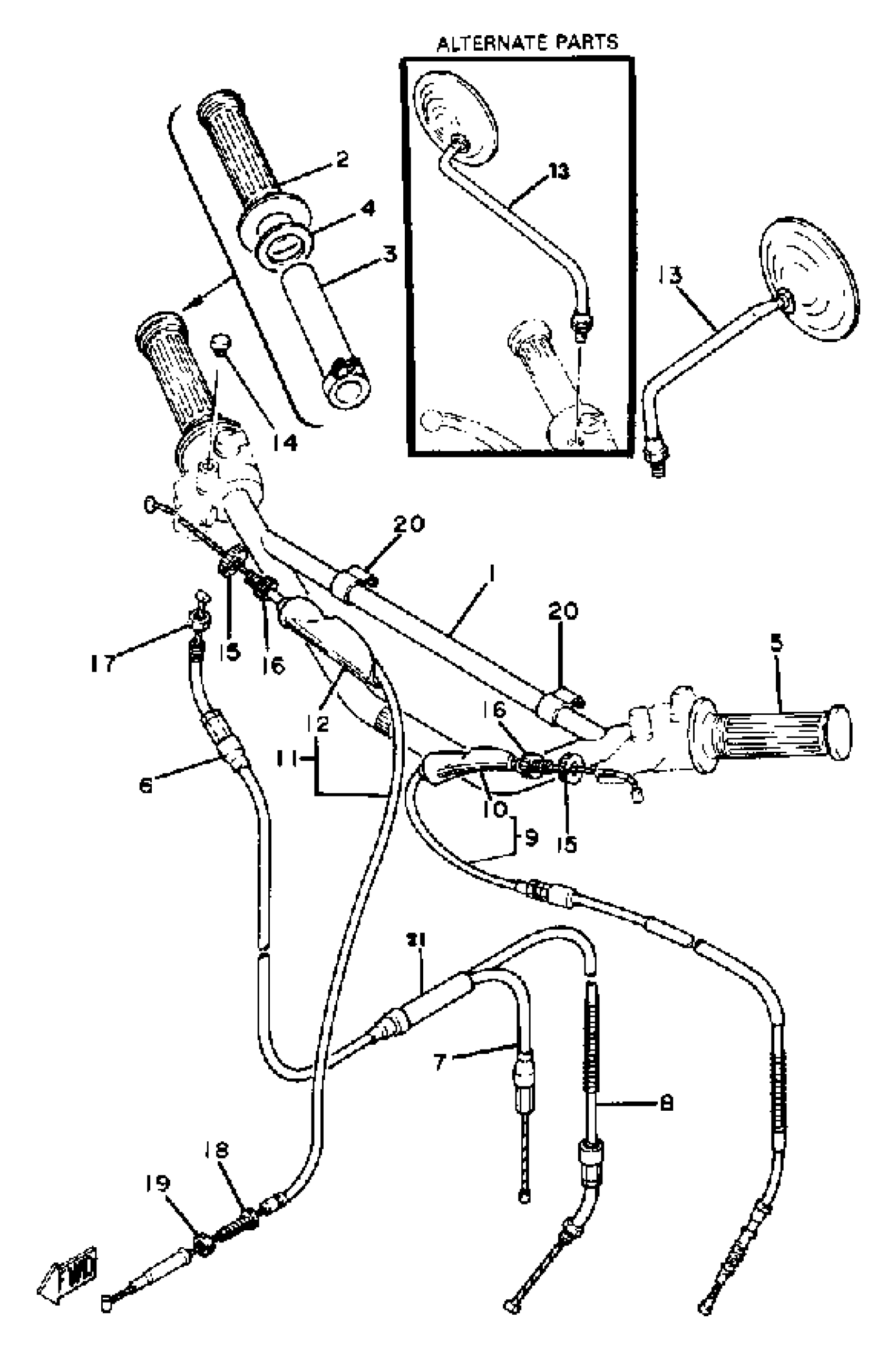

Yamaha DT100E (DT100E) 1978 HANDLEBAR CABLE DT100G Diagram

#

Description
Price

1

HANDLEBAR

3M1-26111-01-00

Unavailable

2

GRIP (R.H)

1A0-26242-01-00

$39.99

3

TUBE, GUIDE

1V1-26243-00-00

$15.49

4

WASHER, PLATE(1UU)

90201-261L1-00

$10.49

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

6

CABLE, THROTTLE 1

2F5-26311-00-00

Unavailable

7

CABLE, THROTTLE 2

1T9-26312-00-00

Unavailable

8

CABLE,PUMP

1T9-26321-10-00

Unavailable

9

CABLE, CLUTCH

1T9-26335-00-00

Unavailable

10

COVER, LEVER

498-26372-00-00

Unavailable

11

CABLE, BRAKE

3M1-26341-00-00

Unavailable

12

COVER, LEVER

498-26372-00-00

Unavailable

13

3MIRROR ASSEMBLY LH

266-26290-10-00

Unavailable

13

MIRROR ASSEMBLY RH

395-26290-00-00

Unavailable

14

PLUG (17J)

90338-07124-00

$10.49

15

NUT

90179-08030-00

Unavailable

16

BOLT

90123-08002-00

Unavailable

17

NUT,HEXAGON

90170-10044-00

Unavailable

18

BOLT (109-26345-00)

90123-06011-00

Unavailable

19

NUT (109-26344-00)

90179-06143-00

Unavailable

20

CLIP (1E6)

90468-15064-00

Unavailable

21

CONNECTOR, CABLE

214-26261-01-00

Unavailable
