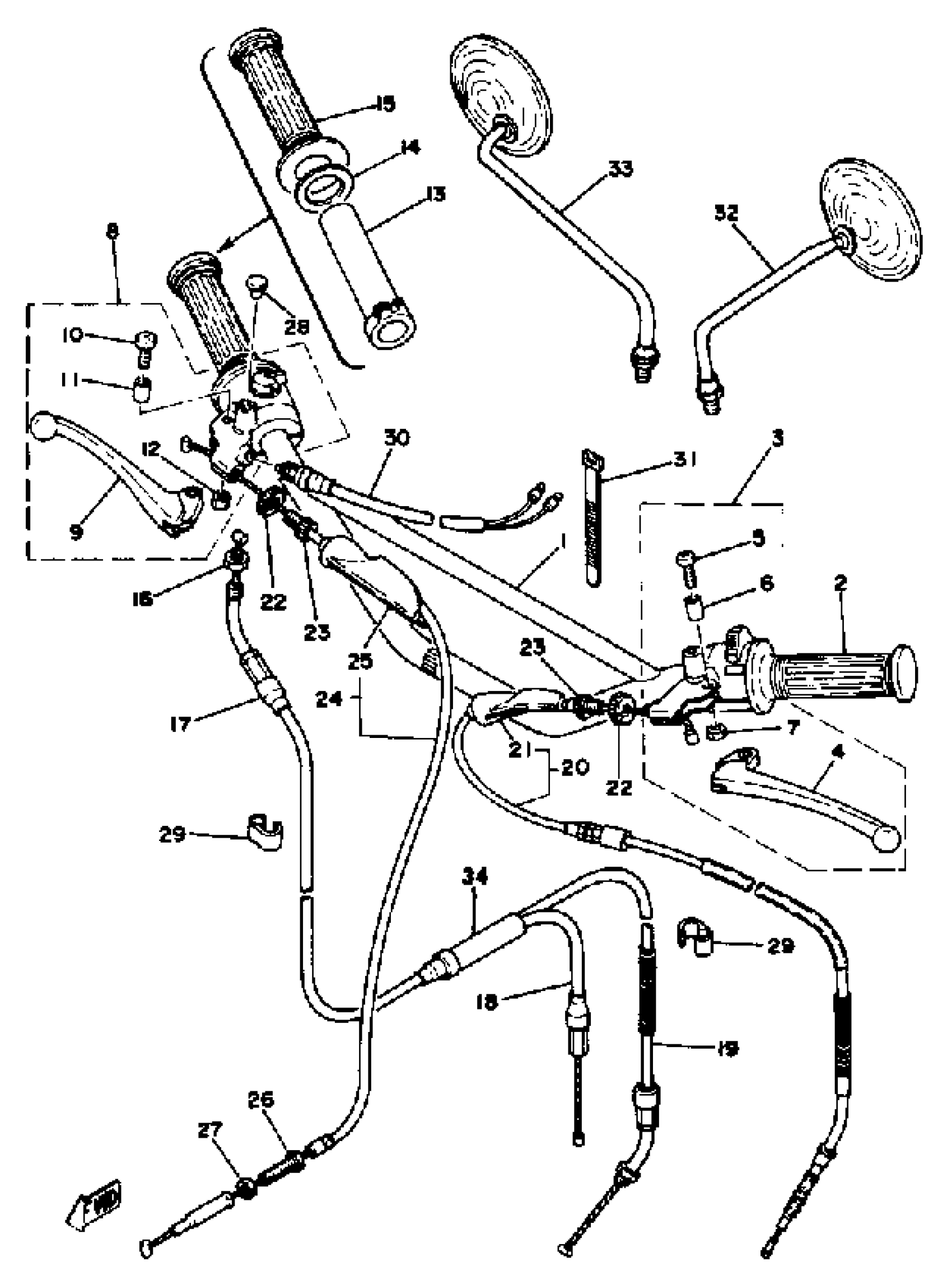

Yamaha DT100E (DT100E) 1978 HANDLEBAR CABLE DT100E E011001~ Diagram

#

Description
Price

1

HANDLEBAR

3M1-26111-01-00

Unavailable

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

3

LEVER HOLDER ASSEMBLY 1 (1T9-82910-00)

1T9-82910-01-00

Unavailable

4

LEVER (L.H)

137-83912-02-38

Unavailable

5

SCREW (1E2)

90149-05120-00

$9.49

6

. COLLAR, LEVER 1

137-83913-01-00

Unavailable

7

NUT, U

95617-05100-00

$9.49

8

UNAVAILABLE IN PRICE BOOK

1T9-82920-00-00

Unavailable

9

LEVER (R.H)

2N3-83922-00-00

$30.99

10

SCREW (1E2)

90149-05120-00

$9.49

11

. COLLAR, LEVER 1

137-83913-01-00

Unavailable

12

NUT, U

95617-05100-00

$9.49

13

TUBE, GUIDE

1V1-26243-00-00

$15.49

14

WASHER, PLATE(1UU)

90201-261L1-00

$10.49

15

GRIP (R.H)

1A0-26242-01-00

$39.99

16

NUT,HEXAGON

90170-10044-00

Unavailable

17

CABLE, THROTTLE 1

2F5-26311-00-00

Unavailable

18

CABLE, THROTTLE 2

1T9-26312-00-00

Unavailable

19

CABLE,PUMP

1T9-26321-10-00

Unavailable

20

CABLE, CLUTCH

1T9-26335-00-00

Unavailable

21

COVER, LEVER

498-26372-00-00

Unavailable

22

NUT

90179-08030-00

Unavailable

23

BOLT

90123-08002-00

Unavailable

24

CABLE, BRAKE

3M1-26341-00-00

Unavailable

25

COVER, LEVER

498-26372-00-00

Unavailable

26

UNAVAILABLE IN PRICE BOOK

90230-60100-0

Unavailable

27

NUT (109-26344-00)

90179-06143-00

Unavailable

28

PLUG (17J)

90338-07124-00

Unavailable

29

CLIP (1E6)

90468-15064-00

Unavailable

30

FRONT STOP SWITCH ASSY

395-83980-09-00

Unavailable

31

BAND, SWITCH CORD

437-83936-01-00

Unavailable

32

3MIRROR ASSEMBLY LH

266-26290-10-00

Unavailable

33

MIRROR ASSEMBLY RH

395-26290-00-00

Unavailable

34

CONNECTOR, CABLE

214-26261-01-00

Unavailable
