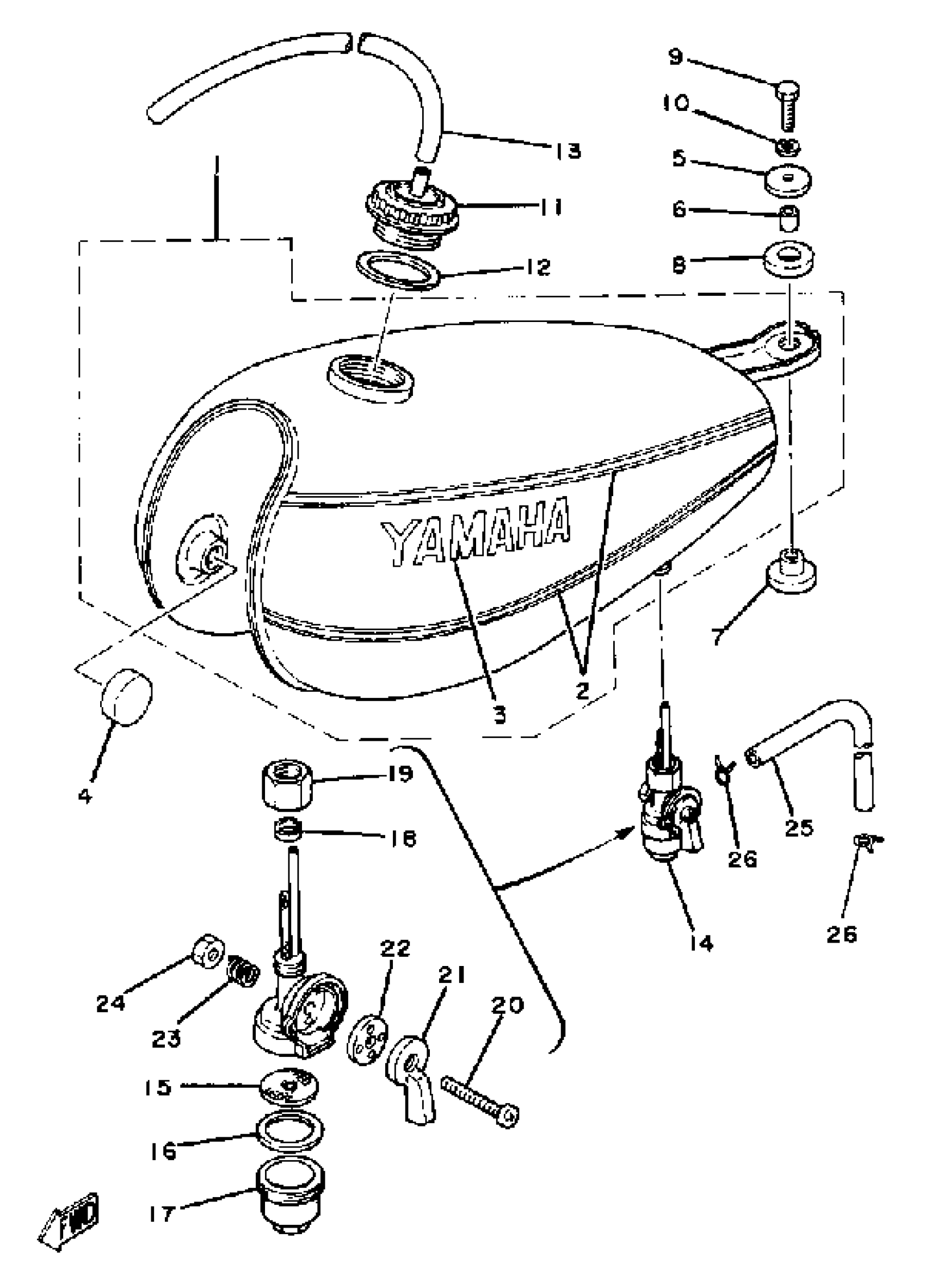

Yamaha DT100E (DT100E) 1978 FUEL TANK DT100G Diagram

#

Description
Price

1

FUEL TANK

(538-24110-00-W3)

Unavailable

1

FUEL TANK

(538-24110-00-W4)

Unavailable

2

GRAPHIC SET

(3A3-24240-00-00)

Unavailable

3

EMBLEM, YAMAHA

99241-00120-00

$24.99

4

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

5

WASHER PLATE 248217570000

90201-06074-00

$9.49

6

COLLAR

90387-07020-00

$8.49

7

GROMMET (462)

90480-14088-00

$5.60

8

WASHER, PLATE (462)

90202-14077-00

$4.29

9

BOLT, HEXAGON

97017-06025-00

$4.24

10

WASHER, SPRING

92995-06100-00

Unavailable

11

BODY, CAP

322-24611-02-00

$57.99

12

GASKET (583 FUEL TANK CAP)

90430-35122-00

Unavailable

13

HOSE (L600)

90445-083J5-00

$10.49

14

FUEL COCK ASSY

367-24500-04-00

Unavailable

15

SCREW, PAN HEAD

98517-05030-00

Unavailable

16

GASKET

102-24522-02-00

Unavailable

17

. CUP, FILTER

122-24521-00-00

Unavailable

18

GASKET, NUT

122-24532-00-00

Unavailable

19

. NUT

603-24531-01-00

Unavailable

20

SCREW, PAN HEAD

98517-05030-00

Unavailable

21

LEVER, COCK

(355-24524-01-00)

Unavailable

22

VALVE

355-24523-00-00

Unavailable

23

WASHER, WAVE

(355-24518-00-00)

Unavailable

24

NUT, HEXAGON (663)

95380-05600-00

Unavailable

25

HOSE (L420)

90445-092K1-00

Unavailable

26

CLIP 101235600

90467-08003-00

Unavailable
