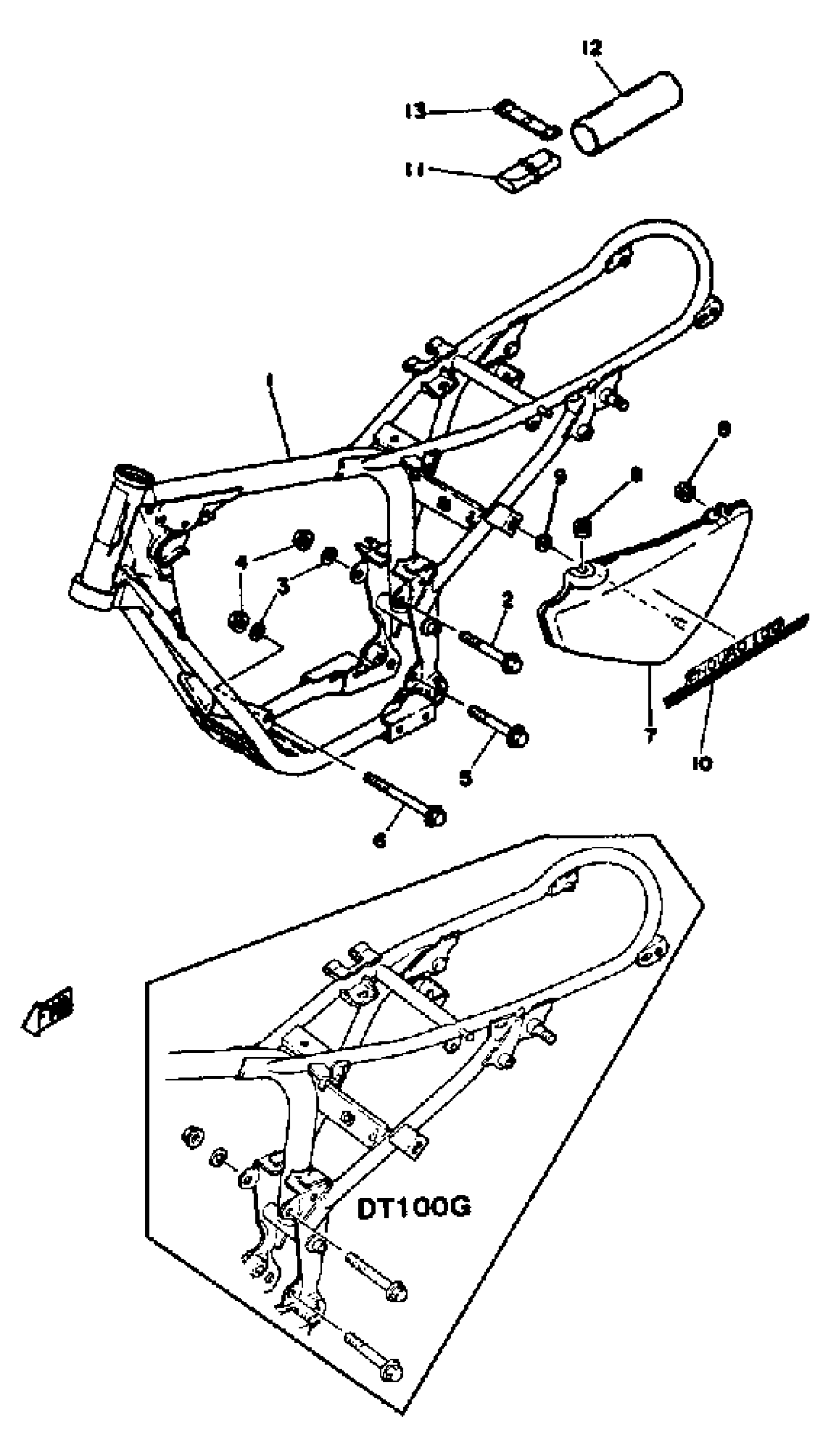

Yamaha DT100E (DT100E) 1978 FRAME SIDE COVER Diagram

#

Description
Price

1

FRAME

(3A3-21110-01-33)

Unavailable

2

BOLT (1T9)

90105-08095-00

$2.97

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

NUT, FLANGE

95704-08500-00

$8.49

5

BOLT, FLANGE

95817-10075-00

$5.60

6

BOLT, FLANGE

90105-08094-00

Unavailable

7

COVER, SIDE 1

(2F5-21711-00-00)

Unavailable

7

COVER, SIDE 1

2F5-21711-01-00

Unavailable

7

COVER, SIDE 1

2F5-21711-10-00

Unavailable

7

COVER, SIDE 1

(3A3-21711-00-9G)

Unavailable

7

COVER, SIDE 1

(3A3-21711-00-T5)

Unavailable

8

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

9

GROMMET(41Y)

90480-01401-00

$8.49

10

EMBLEM

2F5-21737-00-00

Unavailable

10

EMBLEM

(2F5-21737-01-00)

Unavailable

10

EMBLEM

(2F5-21737-10-00)

Unavailable

10

EMBLEM

(3A3-21737-00-00)

Unavailable

11

TOOL KIT

1E7-W2810-00-00

Unavailable

12

COVER, TOOL BOX

(1T9-28171-00-00)

Unavailable

13

BAND, TOOL

21V-21376-00-00

Unavailable
