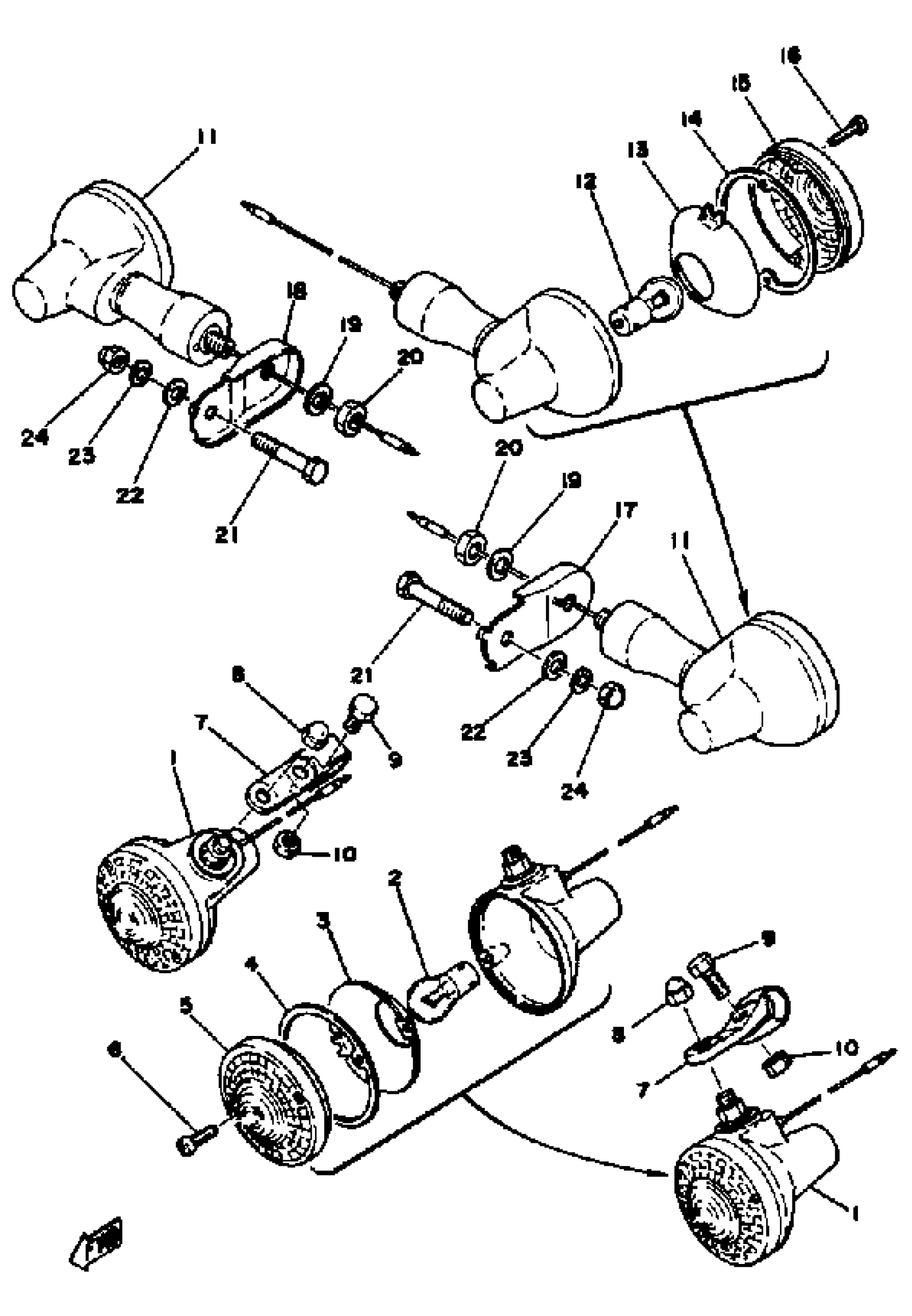

Yamaha DT100E (DT100E) 1978 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

1M1-83310-60-00

Unavailable

2

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

2

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

3

. REFLECTOR

1M1-83309-60-00

Unavailable

3

. REFLECTOR

1M1-83309-60-00

Unavailable

4

. GASKET, FLASHER LENS

1M1-83313-60-00

Unavailable

4

. GASKET, FLASHER LENS

1M1-83313-60-00

Unavailable

5

LENS, FLASHER

341-83312-70-00

Unavailable

5

LENS, FLASHER

341-83312-70-00

Unavailable

6

YBS83-320 SCREW,PANH.TAPPING

97780-30120-00

Unavailable

6

YBS83-320 SCREW,PANH.TAPPING

97780-30120-00

Unavailable

7

STAY, FLASHER 1

2F5-83318-00-00

Unavailable

8

NUT, CROWN

95303-08800-00

$9.49

9

BOLT, HEXAGON

97013-08020-00

$1.16

10

NUT(6L2)

95333-08600-00

$2.49

11

REAR FLASHER LAMP ASSY

1T9-83330-60-00

Unavailable

12

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

12

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

13

. REFLECTOR

1M1-83309-60-00

Unavailable

13

. REFLECTOR

1M1-83309-60-00

Unavailable

14

. GASKET, FLASHER LENS

1M1-83313-60-00

Unavailable

14

. GASKET, FLASHER LENS

1M1-83313-60-00

Unavailable

14

. GASKET, FLASHER LENS

1M1-83313-60-00

Unavailable

15

LENS, FLASHER

341-83312-70-00

Unavailable

15

LENS, FLASHER

341-83312-70-00

Unavailable

16

YBS83-320 SCREW,PANH.TAPPING

97780-30120-00

Unavailable

16

YBS83-320 SCREW,PANH.TAPPING

97780-30120-00

Unavailable

17

. STAY, FLASHER

1T9-83368-01-00

Unavailable

18

STAY, FLASHER

1T9-83369-01-00

Unavailable

19

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

20

NUT(3BM)

95314-10600-00

Unavailable

21

BOLT

97014-08040-00

Unavailable

22

.. WASHER, PLATE

92990-08600-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

24

NUT, CROWN

95303-08800-00

$9.49
