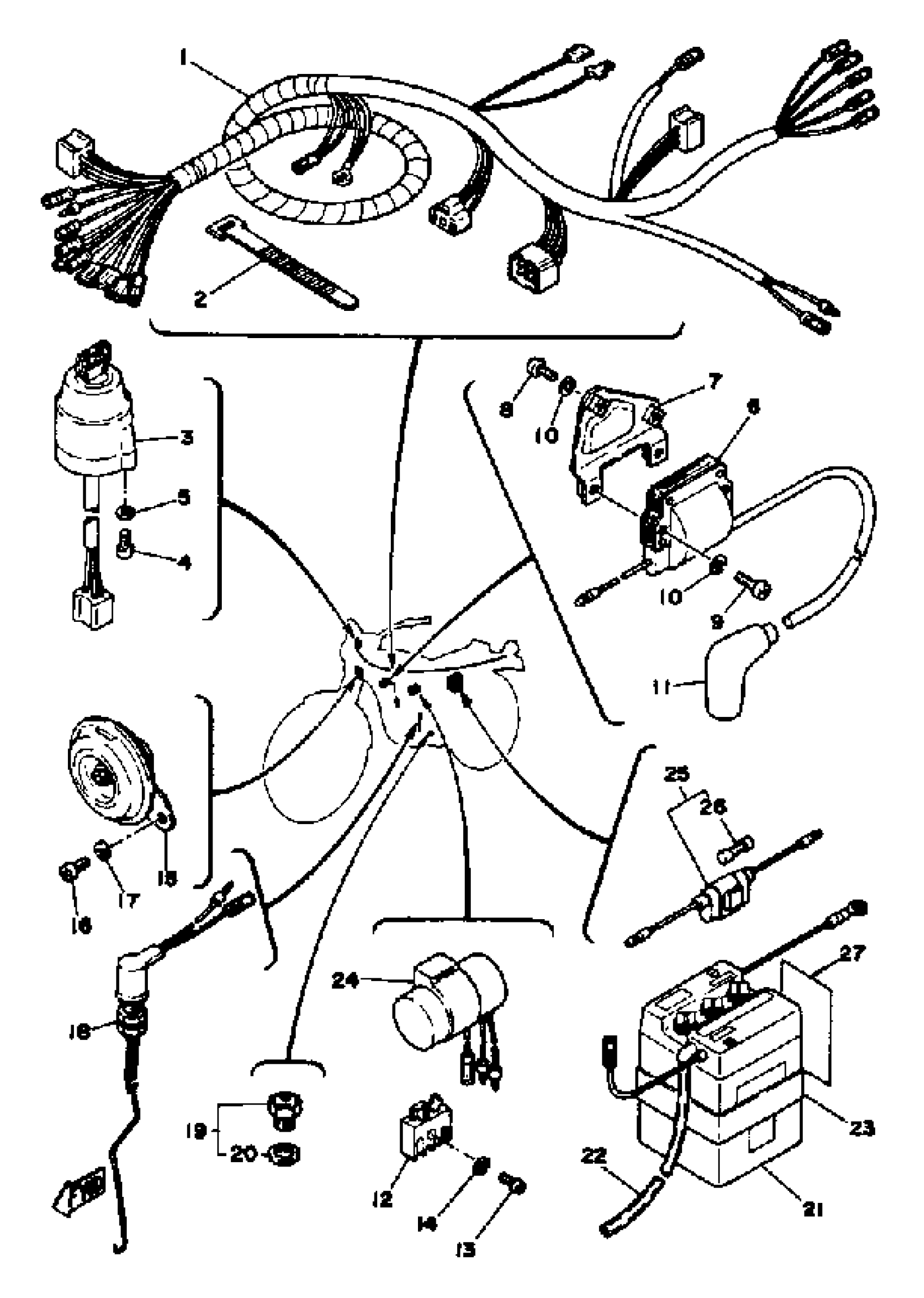

Yamaha DT100E (DT100E) 1978 ELECTRICAL DT100E E011001~F Diagram

#

Description
Price

1

WIRE HARNESS ASSEMBLY

2F5-82590-50-00

Unavailable

2

BAND, SWITCH CORD

25G-83936-01-00

$4.78

3

MAIN SWITCH ASSY

53C-82510-01-00

$62.99

4

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

IGNITION COIL ASSY

355-82310-40-00

Unavailable

7

BRACKET, IGNITION COIL

336-82316-01-00

Unavailable

8

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

9

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

10

WASHER, SPRING

92995-06100-00

Unavailable

11

PLUG CAP ASSY

56J-82370-00-00

$64.99

12

RECTIFIER ASSY

353-81970-M2-00

Unavailable

13

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

HORN

2A7-83371-10-00

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

STOP SWITCH ASSEMBLY

2F5-82530-02-00

Unavailable

18

STOP SWITCH ASSEMBLY

2F5-82530-02-00

Unavailable

19

NEUTRAL SWITCH ASSY

136-82540-03-00

Unavailable

20

WASHER, PLATE

90201-12790-00

Unavailable

21

6N4-2A-2 GS BATTERY

6N4-2A200-00-00

Unavailable

22

HOSE

90445-08172-00

Unavailable

23

BAND, BATTERY

214-82124-00-00

Unavailable

24

FLASHER RELAY ASSY

3BK-83350-00-00

Unavailable

24

FLASHER RELAY ASSEMBLY

542-83350-60-00

Unavailable

25

FUSE HOLDER ASSY

55K-82150-02-00

Unavailable

26

FUSE

1A0-82151-00-00

Unavailable

27

LABEL, BATTERY

40A-82141-G0-00

Unavailable
